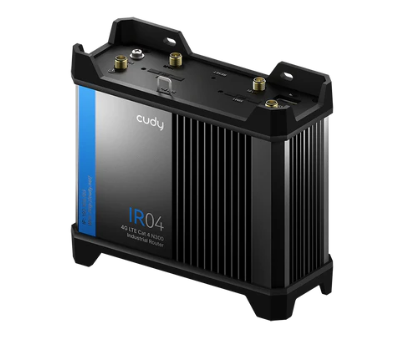

Cudy 4G Indusrial Router
Roll over image to zoom in
Cudy 4G Indusrial Router

Cudy 4G Indusrial Router

CudySKU: 86630
MODEL : IR04_EU
Price:
Rf3,605

Tax included Shipping calculated at checkout

Stock:
In stock (2 units), ready to be shipped

Description

CPU
CPU Details 580 MHZ Single-Core, MIPS24KEC
Memory/Storage
Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR2
Cellular
Cellular Standards 4G Cat. 4
Cellular Antennas 2× Detachable
Detachable Cellular Antennas Connector SMA Female
SIM Options 2× Mini SIM Slots (2FF)
Available Versions EU, US, ME, LA
EU Version Cellular
Suitable Region Europe, Middle East, Africa, SEA, Australia, New Zealand
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
US Version Cellular
Suitable Region United States, Canada
Max DL Speed 150 Mbps
Max UL Speed 50 Mbps
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B2/4/5/12/13/14/66/71
WCDMA: B2/4/5
LA Version Cellular
Suitable Region Latin America, Australia, New Zealand
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B1/2/3/4/5/7/8/28/66
LTE-TDD: B40
WCDMA: B1/2/4/5/8
GSM: B2/3/5/8
ME Version Cellular
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 35 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/8
GSM: B3/8
Wireless
2.4 GHz Wi-Fi Speed 300 Mbps
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Detachable
Detachable Wi-Fi Antennas Connector RP-SMA Female
FEM or PA/LNA 2.4 GHz: 2× Internal
Range Performance Max: 130 m (427 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 10 cm (4'')
Interfaces
Physical Buttons Reset Button
10/100 Mbps RJ45 Ports 4
Ethernet Notes Port 1 is WAN/LAN configurable, and the rest are LAN ports
USB Ports 1× USB 2.0
Industrial Sockets
  • 1× DB9
  • 1× 6-PIN
  • 1× 10-PIN
DB9 Protocols
  • RS232
  • RS422
  • RS485
6-PIN Industrial Socket Protocols
  • RS485
  • RS422
IO
  • 1× Digital Dry Input (0-1.2V for state 1 | 1.8-3V for state 0) and GND1
  • 1× Digital Galvanically Isolated Input (0-4V for state 0 | 9-30V for state 1) and GND2
  • 1× Digital Open Collector Output (Max. 30V⎓250mA) and 1× GND3
  • 1× +V (<30V) and GND 3 for External VCC for the Digital Output
  • 1× C & NO - Common and Normally Open contacts of the internal Non-Latching Relay respectively (Max. 24V⎓4A or 40V~4A)
  • 1× A and GND1 - ADC input. Analog voltage range: 0-24V. The input can be configured for 4-20 mA sensor protocol as current measurement (AcL)
Other IO 1× Ignition Sensing and GND on the 4-PIN Power Connector
LED
  • Power
  • Cellular
  • Cellular Signal Strength
  • Link/ACT of Each Ethernet Port
Power Input
  • DC Jack
  • PoE via Ethernet Port
  • 4-PIN DC
Power Input Note Only two PINs in the 4-PIN power ports are used for powering. The other two are used for ignition sensing.
Power
Power Methods
  • DC
  • 802.3at/af PoE
  • Passive PoE
Power Methods Note The WAN/LAN port accepts 802.3at/af PoE. The LAN ports accept Passive PoE.
DC Input 12V 1A
DC Terminal Block Input 11-57V⎓
Passive PoE Input 24-57V, Max. 12W
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W) 9.6W
Idle Power Consumption (W) 2.8W
Reliability
Grounding Methods Grounding Point
EMC IEC/EN 61000-4-2, Level 3 ESD: Contact: 8kV; Air: 15kV
IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m
IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
IEC/EN 61000-4-6, Level 3 CS: 10V
IEC/EN 61000-4-8, Level 5 PFMF
IEC/EN 61000-4-9, Level 5
IEC/EN 61000-4-10, Level 5
Power Protection
  • Polarity Protection
  • Overvoltage Protection
  • Surge Protection
Shock IEC/EN 61373
Vibration IEC/EN 61373
Free Fall IEC/EN 60068-2-32
Safety IEC/EN 62368
Ingress Protection Rating IP30
Environment Operating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
Operating Humidity: 5% ~ 95% non-condensing
Storage Humidity: 5% ~ 95% non-condensing

Technical Specifications

Category Details
Product Name Cudy AC1200 Dual Band WiFi Extender
WiFi Band 2.4 GHz and 5 GHz Dual-Band
WiFi Speed Max 867 Mbps (5 GHz), 300 Mbps (2.4 GHz)
Standard WiFi 5, WiFi 4, WiFi 3 (802.11ac/a/b/g/n). Note: Compatible with WiFi 6
Working Mode WiFi Extender, WiFi Access Point, Cudy Mesh Unit
Ethernet Port 1× 10/100Mbps Ethernet Port
Antennas 2× External High Gain Antennas
Buttons WPS Button, Reset Button
Indicators Signal, WPS, System
Dimension 5.1 × 3.1 × 2.2 inches (129.6 × 96 × 53.8 mm)
Electrical Rating 100-240V AC, 50-60 Hz
Temperature Rating Operating: 0°C–40°C
Storage: -25°C–60°C
Humidity: 0%–90%, non-condensing
Altitude: <3000m
