Description

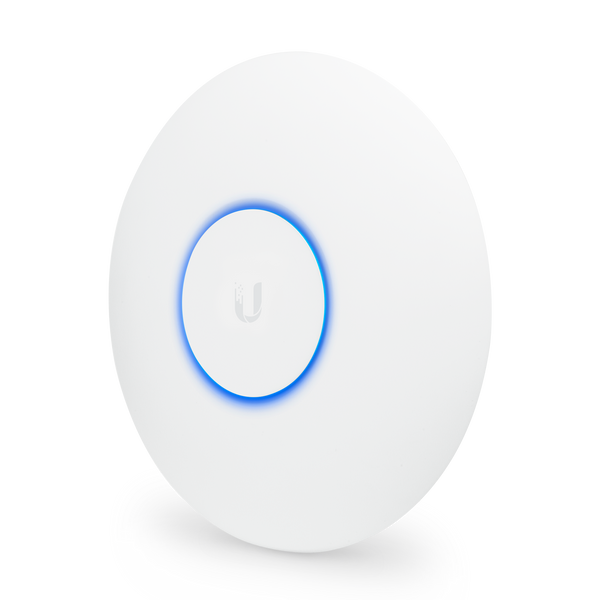

Access Point AC Pro
Model : UAP-AC-PRO
Dual-band, 802.11ac Wave 1 access point designed to support high-density networks and critical system applications.
The Access Point AC Pro (UAP AC Pro) is a high-performance, indoor/outdoor, 802.11ac WiFi access point that utilizes Wave 1 technology to reach an impressive 2+ Gbps aggregate throughput rate with its 5 GHz (3x3 MIMO) and 2.4 GHz (3x3 MIMO) bands. The UAP AC Pro broadcasts its signal up to 122 meters (400 feet) away, allowing for greater multi-user support from further away. This access point can be powered with 802.3af PoE or 802.3at PoE+ *, and it is equipped with (2) GbE RJ45 ports and (1) USB port. The UAP AC Pro can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
- 802.11ac Wave 1 WiFi technology
- 5 GHz (3x3 MIMO) band with a 1.3 Gbps throughput rate
- 2.4 GHz (3x3 MIMO) band with a 450 Mbps throughput rate
- Powered with 802.3af PoE or 802.3at PoE+*

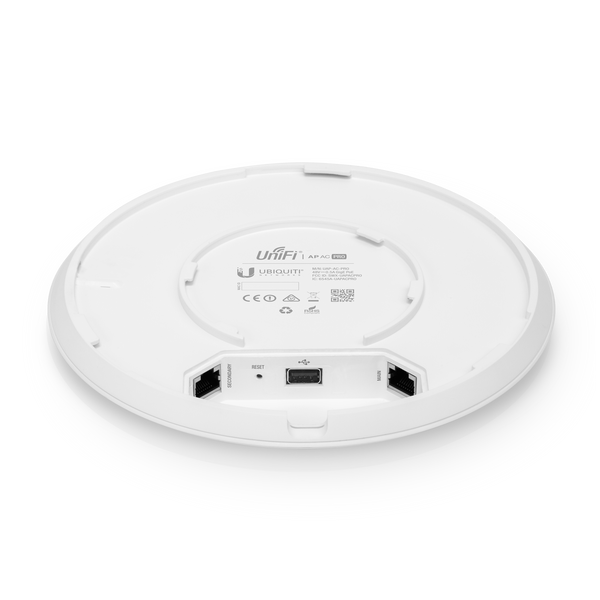

- (2) GbE RJ45 ports
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
PRODUCT SUMMARY
| Mechanical | |
|---|---|
| Dimensions | 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38") |
| Weight | 350 g (12.4 oz), 450 g (15.9 oz) with Mounting Kits |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Ports | (1) USB 2.0 Port |
| Buttons | Reset |
| Antennas | (3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method | Passive Power over Ethernet (48V), 802.3af/803.2at Supported (Supported Voltage Range: 44 to 57VDC) |
| Power Supply | PoE Adapter Included |
| Maximum Power Consumption | 9W |
| Max TX Power | 22 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 125+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
