Description

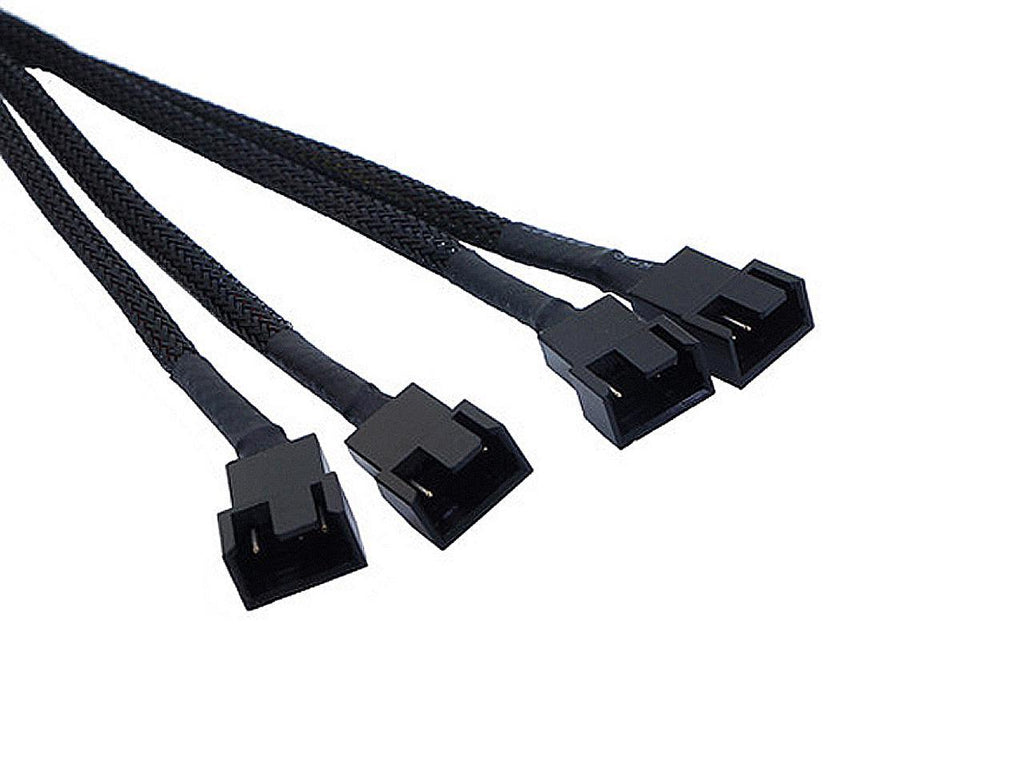

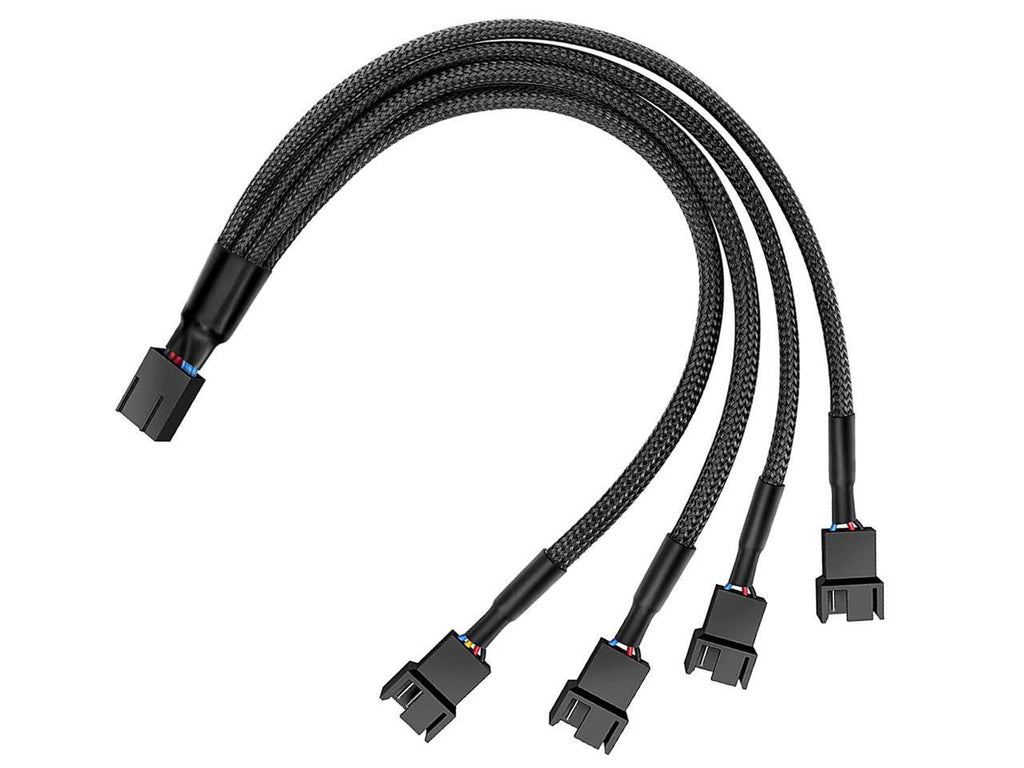

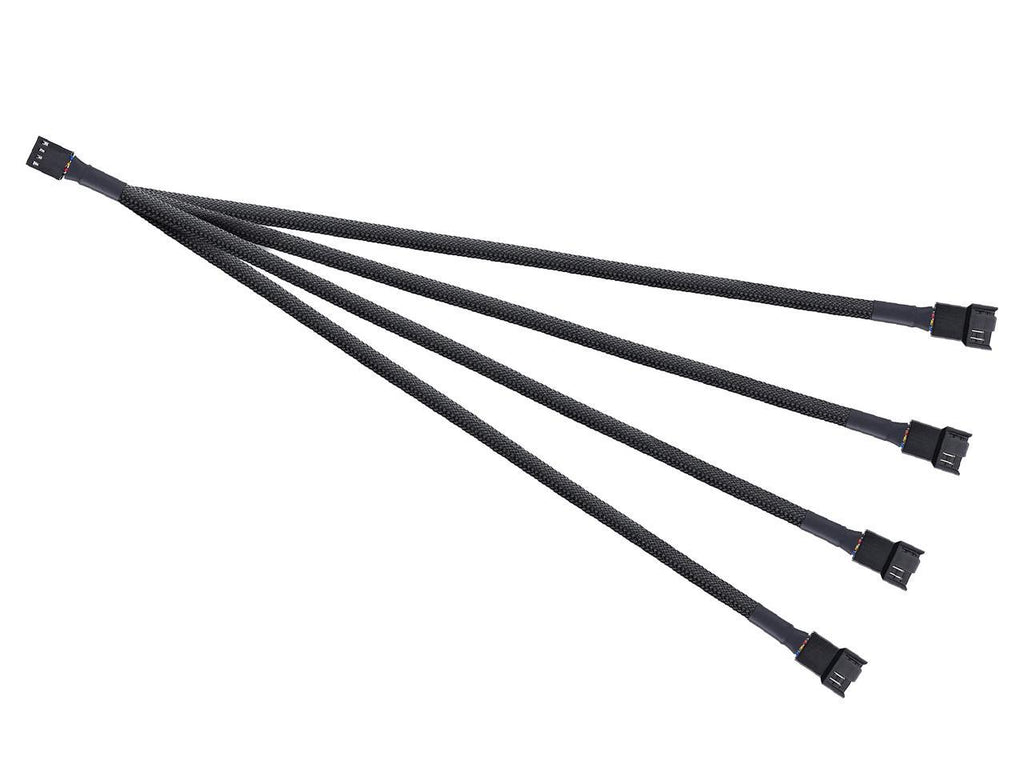

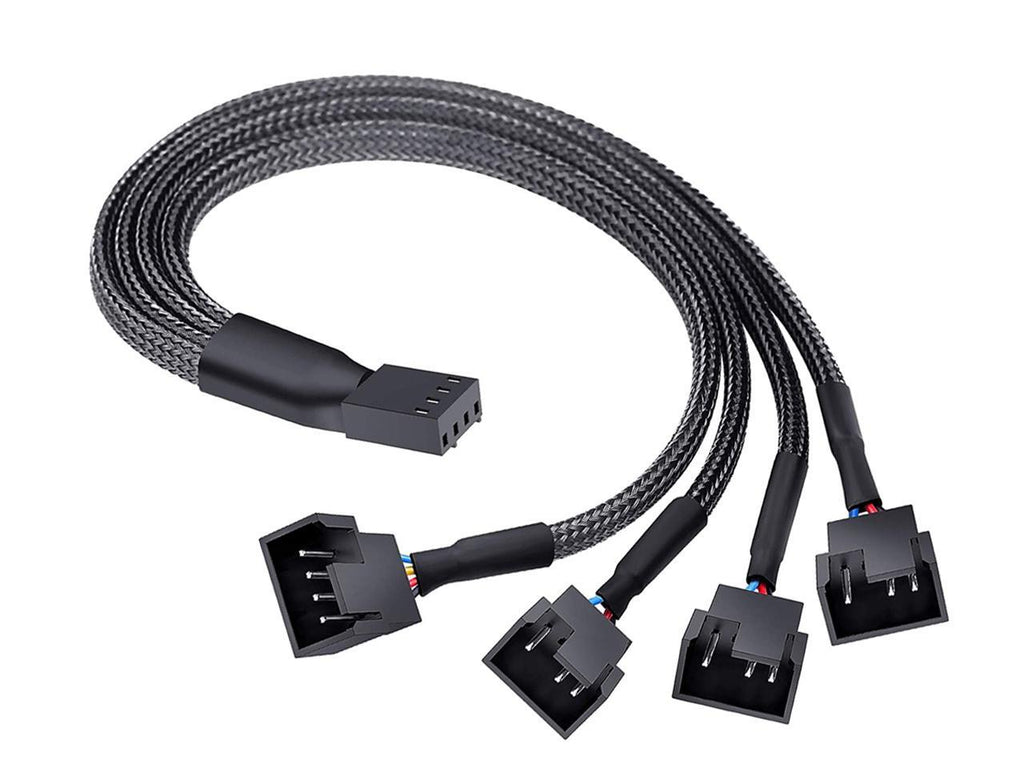

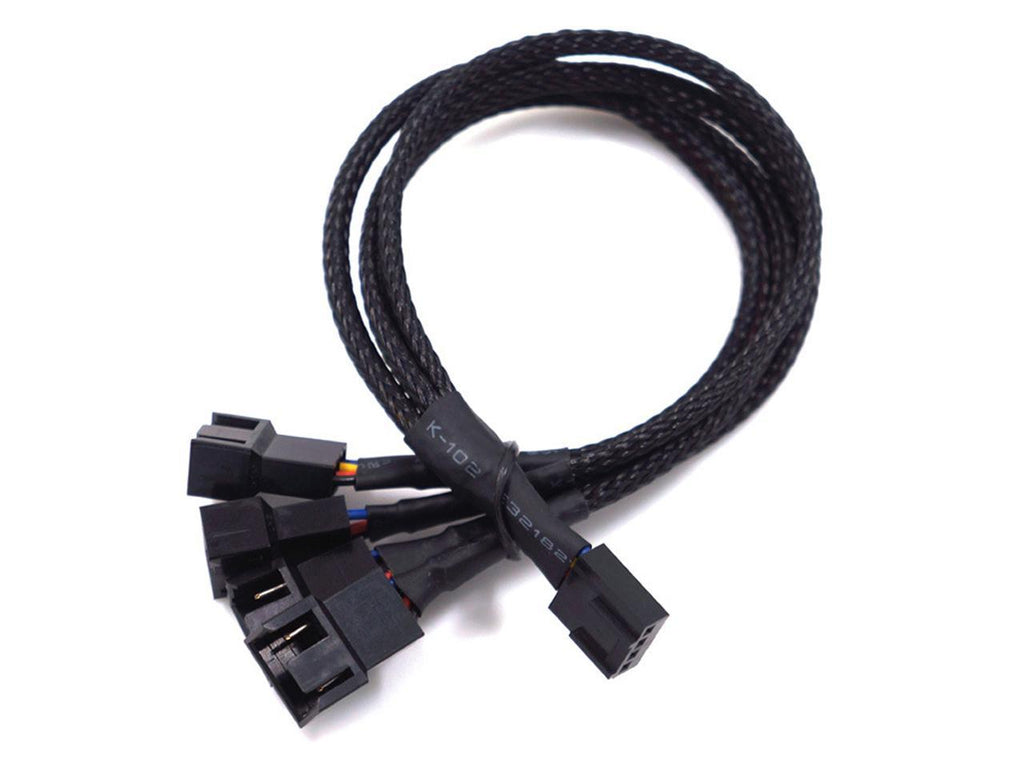

PWM Fan Splitter Cable Hub 1 to 4 Power Adapter, Motherboard PMW 4-pin Fan Sleeved Braided Y Splitter Internal Power Extension Cable for Computer CPU/Case Fan 1x4 Converter - 10 inches
- PWM 4pin 1 to 4 power splitter Y cable
- Connected 4-fans to motherboard 4pin header
- 10 inch in cable length
- Support PWM fan speed control
- All fans run in same speed
SPECIFICATION
| Cable Type | 1x4 PWM 4Pin Power Splitter Cable |
|---|---|
| Connector A | PWM 4pin Female for Motherboard CPU_Fan Header |
| Connector B | PWM 4pin Male - Full 4 Wires for CPU Cooler |
| Connector C | 3x PWM 4pin Male - 3 wires only, missing the pin of tach |
| Cable Length | 10 Inches |
| Power | 12V DC |
| Cable Color | Sleeved Black |
Note:
- Only the fan on 4-pins connector is used for monitoring.
- All connected fans are following the same PWM signa, speed control is the same for all fans when use fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc
- PWM capable connectors must necessarily be 4-pin, but not all 4-pin motherboard connectors implement or enable the PWM signal modulation by default. Please carefully consult your motherboard documentation in this respect.
