Description

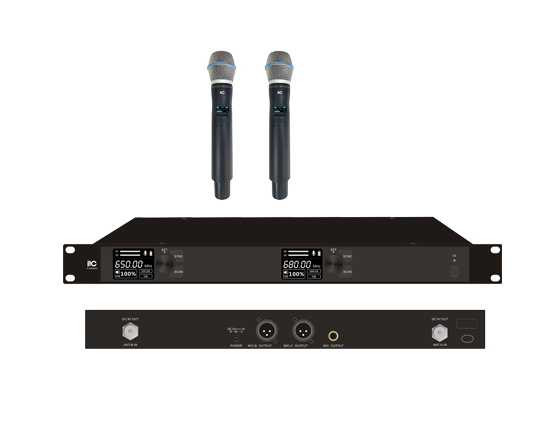

It is a digital wireless microphone system with a new solution architecture. The system adopts unique digital U-band transmission technology, pi/4-DQPSK modulation mode, and uses ID code pilot technology to prevent cross-frequency interference, and frequency sweep to avoid interference, characterized by low bit error rate, stable transmission, and strong anti-interference ability
|
System |
|
|
Frequency range |
470-510MHz、540MHz-590MHz、640MHz-690MHz、807MHz-830MHz |
|
Modulation mode |
pi/4-DQPSK |
|
Frequency response |
20Hz~20kHz (±3dB) |
|
SNR |
≥105dB (XLR) |
|
THD+N |
<0.1% |
|
Working distance |
About 80m |
|
Receiver |
|
|
Display |
TFT-LCD screen |
|
Display resolution |
240×320 |
|
Distortion |
<0.05% |
|
Antenna interface |
BNC/50Ω |
|
Receive sensitivity |
<-95dBm |
|
Maximum output |
Balanced output 500mV, unbalanced output 1000mV |
|
Power supply |
DC 12V/1A |
|
Working current |
≤320mA |
|
Dimension (L*W*H) |
443×212×44mm |
|
Weight |
2.225kg |
|
Transmitter |
|
|
Display |
OLED screen |
|
Display resolution |
128×64 |
|
Microphone cartridge |
Dynamic Microphone (Dual Handheld Microphones) |
|
Output power |
≥10dBm |
|
Working current |
≤200mA |
|
Battery |
2×1.5V(AA) |
|
Battery life |
>10H |
|
Dimension (including microphone cartridge) |
245mm*39mm |
|
Weight |
0.4kg (including battery) |
