1. Black
2. Standard: EIA / TIA RS232C / RS485
3. Baud rate 300bps - 115.2kbps
4. Working mode_ Semi-duplex asynchronous 2 wires
5. Communication mode_ Point to point, point to multipoint
6. Transmission medium_ Twisted pair (Wire diameter> = 0.5mm) or
Shielded wire 7. Transmission distance_ RS232 interface up to 50ft (15m); RS485_ interface up to 4000ft (1.2km)
8. Surge protection_ RS485 interface, Each wire 600W
9. 15 x 10 x 3
10. 200
Description
GENERAL INFORMATION
DETAILED DESCRIPTION
1. The RS232 to RS485 converters are mostly used in industrial and commercial environments.
2. The reason is that the RS485 converter can be used for multi-drop networks, which means you can connect multiple RS485 devices to one computer.
3. Up to 32 devices can be connected in one network for communication on a single pair of wires (plus ground wire).
4. This type of communication is called semi-duplex communication.
5. Most quality RS485 converters can communicate in this way at depths of up to 1200 feet (1200 meters).
6. The RS485 converter also has quite good anti-interference ability, which is another reason why it is preferred in industrial environment.
2. The reason is that the RS485 converter can be used for multi-drop networks, which means you can connect multiple RS485 devices to one computer.
3. Up to 32 devices can be connected in one network for communication on a single pair of wires (plus ground wire).
4. This type of communication is called semi-duplex communication.
5. Most quality RS485 converters can communicate in this way at depths of up to 1200 feet (1200 meters).
6. The RS485 converter also has quite good anti-interference ability, which is another reason why it is preferred in industrial environment.
TECHNICAL SPECIFICATIONS

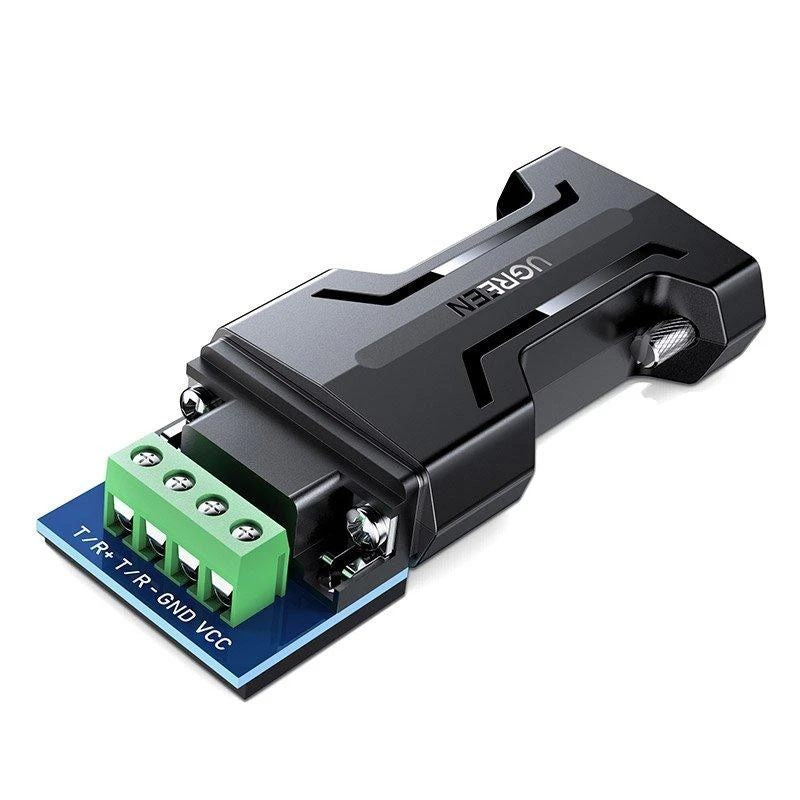

1. Manufacturer: Ugreen
2. Code: 70613 - CM261
3. Commercial two-way RS232 to RS485 converter used in Industrial Long Distance Communication up to 4000ft (1200 meters)
4. Allows multiple connections bus node and 32 devices can be joined to the RS-485 network
5. Automatic RX - TX control; The RS-232 to RS-485 converter automatically controls the "Receive" and "Transmit"
modes 6. Transmission rates up to 115.2kbps (auto detect) can be applied to the two-wire point destination semi-duplex and point-to-point two-wire two-wire multi-point two-wire communication point
7. Integrated transient voltage suppression (TVS) supports 600W surge protection on each RS485 link for effective protection Equipment from damage
8. 15 x 10 x 3 cm
9. 200g
2. Code: 70613 - CM261
3. Commercial two-way RS232 to RS485 converter used in Industrial Long Distance Communication up to 4000ft (1200 meters)
4. Allows multiple connections bus node and 32 devices can be joined to the RS-485 network
5. Automatic RX - TX control; The RS-232 to RS-485 converter automatically controls the "Receive" and "Transmit"
modes 6. Transmission rates up to 115.2kbps (auto detect) can be applied to the two-wire point destination semi-duplex and point-to-point two-wire two-wire multi-point two-wire communication point
7. Integrated transient voltage suppression (TVS) supports 600W surge protection on each RS485 link for effective protection Equipment from damage
8. 15 x 10 x 3 cm
9. 200g
