Description
| OVERVIEW | |

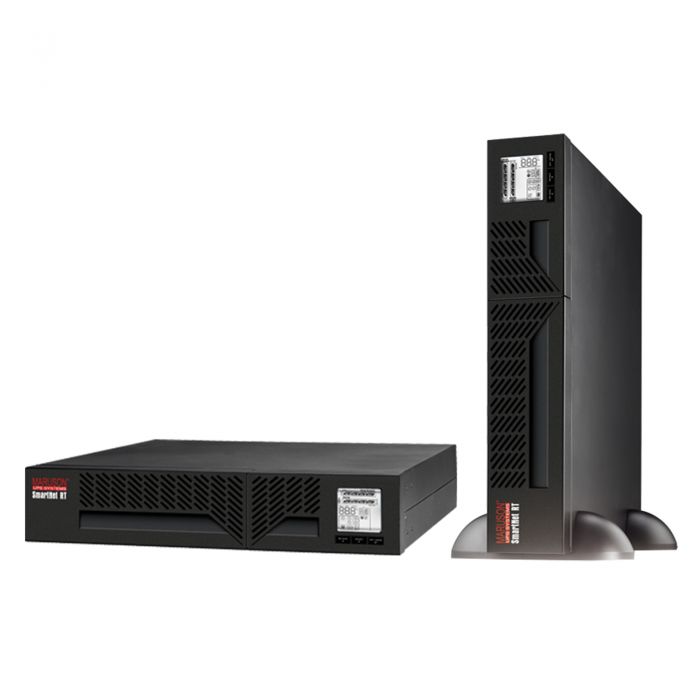

| Model | NET-3000RT |
| Capacity | 3000VA / 2700W |
| Topology | Line-interactive |
| INPUT | |
| Voltage | 208 / 220 / 230 / 240 VAC |
| Voltage Range | 162 - 290Vac |
| Frequency | 50 / 60Hz |
| OUTPUT | |
| Output Voltage | 208 / 220 / 230 / 240 VAC |
| Frequency Range (on Battery) | 50 / 60 Hz +/- 1Hz |
| Current Crest Ratio | 3:1 (max) |
| Harmonic Distortion | <2% THD (linear load) <5% THD (non-linear load) |
| Wave Form (on Battery) | Sine wave |
| TRANSFER TIME | |
| Line to Battery | 2 - 6ms |
| EFFICIENCY | |
| AC Mode | 95% |
| Battery Mode | 92% |
| ECO Mode | 97% |
| BATTERY | |
| Chemistry | Sealed lead-acid |
| Quantity & Size | 6 x 12V / 9Ah |
| Charging Voltage | 82.1 Vdc +/- 1% |
| Charging Current | 1.5A |
| PROTECTION | |
| Emergency Power Off (EPO) | Yes |
| Overload Protection | Yes |
| Overcharge Protection | Yes |
| Surge Suppression | Yes |
| EMI / RFI Filter | Yes, full time |
| ADDITIONAL FEATURES | |
| Add-On External Battery Banks | Yes |
| Programmable Outlets | Yes |
| ECO Mode | Yes |
| Advanced ECO Mode | Yes |
| COMMUNICATION | |
| USB Port | Yes, for power management software to control and monitor the UPS conditions |
| RS232 Port | Yes, for power management software to control and monitor the UPS conditions |
| Software | Compatible with Windows 10/8/7/ Server 2012 R2 / 2008 R2 / Linux 32-Bit / 64-Bit / mac 10.6 to 10.11 |
| Intelligent Slot | Yes, for use with add-on remote power management network card (model #SNMP-2) |
| STATUS INDICATORS | |
| LCD Screen | Yes, for Input/Output Voltages, Battery Level, Fault, status codes, and more |
| Audible Alert | Yes |
