Description
Dimensions

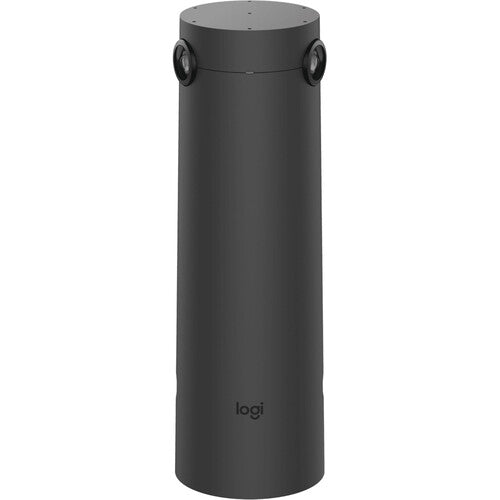

Table-mounted
- Height: 11.77 in (299 mm)
- Width: 6.65 in (169 mm)
- Depth: 6.65 in (169 mm)

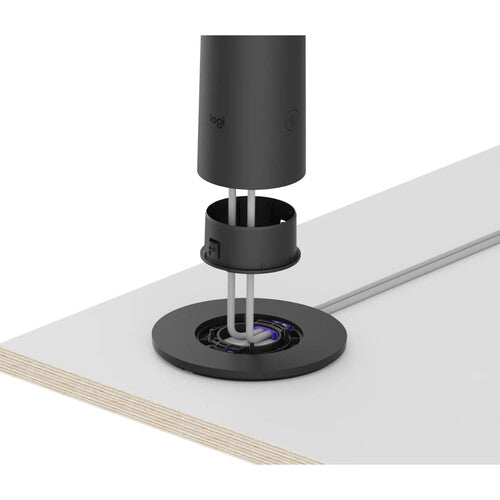

Grommet-mounted
- Height: 11.46 in (291.2 mm)
- Width: 3.68 in (93.4 mm)
- Depth: 3.68 in (93.4 mm)
- Grommet hole 25 mm or larger
Weight: 3.3 lbs (1.5 kg)
Technical Specifications
Video Platform Compatibility
- Integration and feature compatibility will vary by platform. For more details, see www.logitech.com/prosupport/sight-compatibility.
General Specifications
- Built-in Components
- 7 beamforming microphones, dual lens camera, Logitech Collab OS platform
- Device Management
- Logitech Sync
- Camera
- Sensor resolution: 4K
- Zoom: X1
- Horizontal Field of View: 315°
- Vertical Field of View: 97°
- Diagonal Field of View: 180°
- Focal Length: 0.07 in (1.87 mm)
- Depth of Field: 19.69in (50 cm)-16.41ft (5 m)
- Frame Rate (max): 60 fps
- Microphone Specifications
- Beamforming Elements: 7 omnidirectional digital MEMS microphones forming six adaptive acoustic endfire beams
- Pickup Range: 7.55 ft (2.3 m) radius
- Microphone Type: digital MEMS microphones with 72 dB SNR and 130 dB AOP, dirt and water resistant to IP57 spec
- Frequency Response: 90Hz – 16 kHz
- Sensitivity: >-36 dBFS +/-1 dB @ 1 Pa
- Audio processing: AEC (Acoustic Echo Cancellation), Machine Learning VAD (Voice Activity Detector)
- Noise suppression: Artificial Intelligence Machine Learning to attenuate both stationary and non-stationary noises
- Additional mic pods
- Rally Bar: Supports up to 3 Mic Pods and 2 Mic Pod Hubs
- Rally Bar Mini: Supports up to 2 Mic Pods and 2 Mic Pod Hubs
- Rally/Rally Plus: Supports up to total of 6 Mic Pods and/or Mic Pod Hubs
ENVIRONMENTALS
- Operating Temperature: 0 to 40°C @ 10% - 90% RH (Non-condensing)
- Storage Temperature: -40 to 70°C @ 10% - 90% RH (Non-condensing)
Power type: 802.3at Type 2 "PoE+" power or equivalent power supply (user supplied)
CAT Cable: Cat6 or greater
Maximum CAT Cable Length: Between Sight Dongle and Sight: 131.2 ft (40 m)
USB Mode: Windows 10, Windows® 11 or later, macOS (two most recent versions)
Appliance Mode: Room solution software license (not included), Rally Bar or Rally Bar Mini
Latest version of Logitech Collab OS

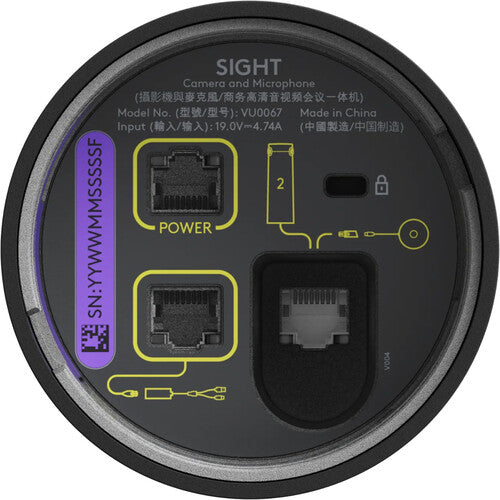

PORTS AND INTERFACES
- 1 x RJ45 (audio/video data over USB)
- 1 x RJ45 (Power Over Ethernet)
- 1 x RJ45 (Daisychain - Rally Mic Pods)
In the Box
