Description
| Specifications | |
|---|---|
| Model | CS-EP3x Pro |
| Video Doorbell | |
| Camera Parameters | |
| Image Sensor | 1/2.8" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens |
Upper camera: 2.3mm @F/2.2 , diagonal field of view 162° Bottom camera: 2.3mm @F/2.2 , diagonal field of view 155° |
| Day & Night | ICR infrared filter type ( Max: 6 meters) |
| Video Parameters | |
| Max. Resolution | Main camera: 2K (2048 × 1296) Bottom camera: 1080p (1920 × 1080) |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | 15fps.Fixed frame rate |
| PIR Sensor | |
| Sensing Angle | 120° |
| Sensing Distance | Max. 5 m (16.4 ft) |
| Sensitivity | Adjustable (High: 5 meter, Medium: 4 meter,and Low: up to 3 meter) |
| Storage | |
| Local Storage | Built-in 32GB eMMC |
| Cloud Storage | EZVIZ CloudPlay storage |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Button | Doorbell button with electronic doorbell |
| Reset button | Yes |
| Network Parameters | |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Function | |
| Intelligent Alarm | AI-Powered Human Shape Detection, Package Detection |
| Tamper Alarm |
Sound and light anti-dismantling alarm (Supports sending alerts via EZVIZ App) |
| Video Intercom | Two-Way talk |
| General | |
| Operation Conditions | -20°C to 50°C, humidity 95% or less (non-condensing) |
| IP Grade | IP65 |

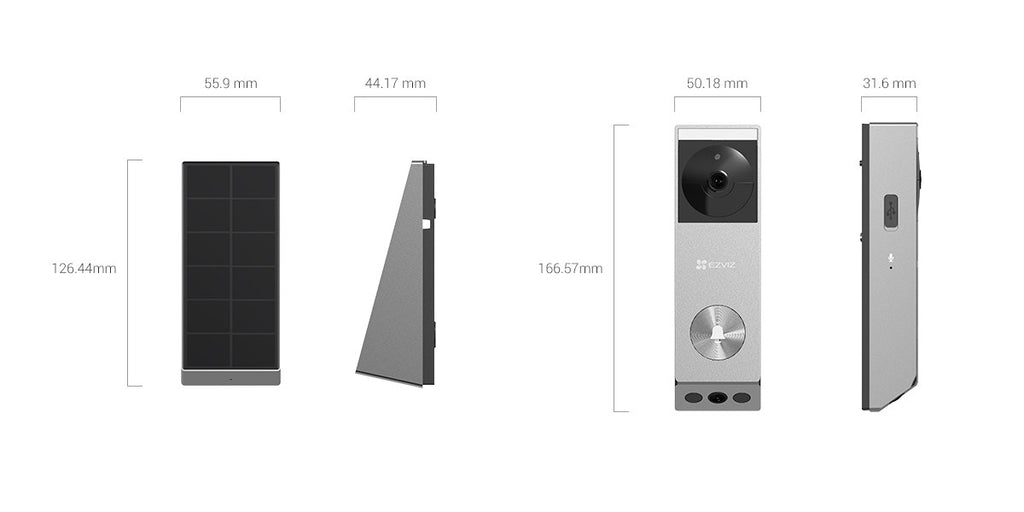

| Size | 166 × 50 × 31mm (6.53 × 1.97 × 1.22 inch) |
| Battery Capacity | 5200 mAh rechargeable lithium battery |
| Power Supply | 8-24VAC, type-C: 5V(±10%), EZVIZ Solar Panel |
| Power Consumption | 3W MAX |
| Solar Panel | |
| Performance Parameter | |
| Max. Power Voltage | 8.1V |
| Max. Power Current | 240mA |
| Max. Power | 1.2W |
| Operating Temperature | -20°C to 50°C |
| Size | 126 × 56 × 44 mm (4.96 × 2.20 × 1.73 inch) |
| IP Grade | IP65 |
| General | |
| Net Weight | Doorbell: 276 g (9.73 oz) |
| Weight with Package | 650 g (22.93 oz) |
| In the box | |
| In the box | - EP3x Pro Video Doorbell |
| - Mounting Bracket for Doorbell | |
| - Inclined Mounting Bracket | |
| - Drill Template for Doorbell | |
| - Solar Panel | |
| - Drill Template for Solar Panel | |
| - Power Cable | |
| - Pin | |
| - Screw Kit ×3 | |
| - U-shaped Wire ×2 | |
| - Wire Connector ×2 | |
| - Regulatory Information ×2 | |
| - Quick Start Guide | |
