Description

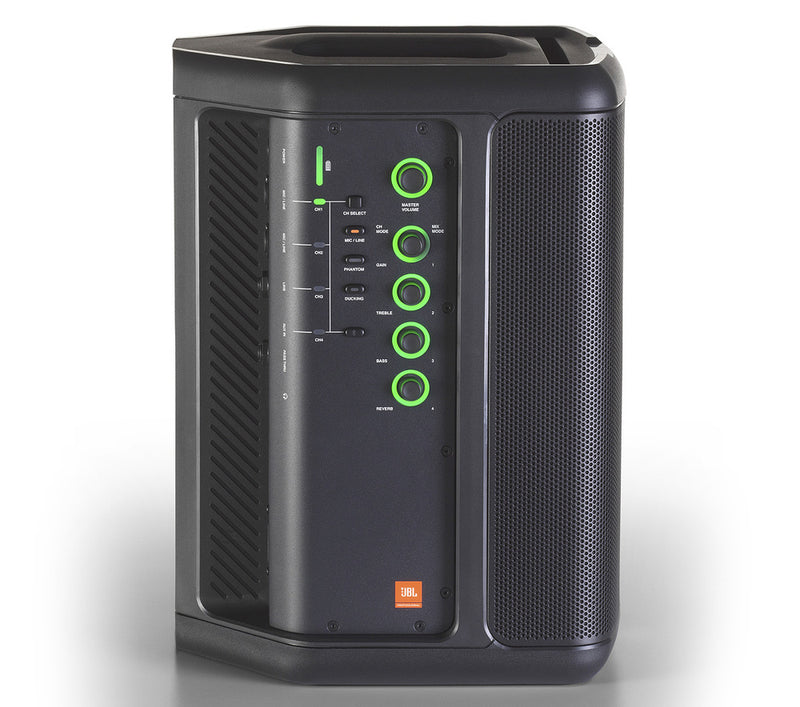

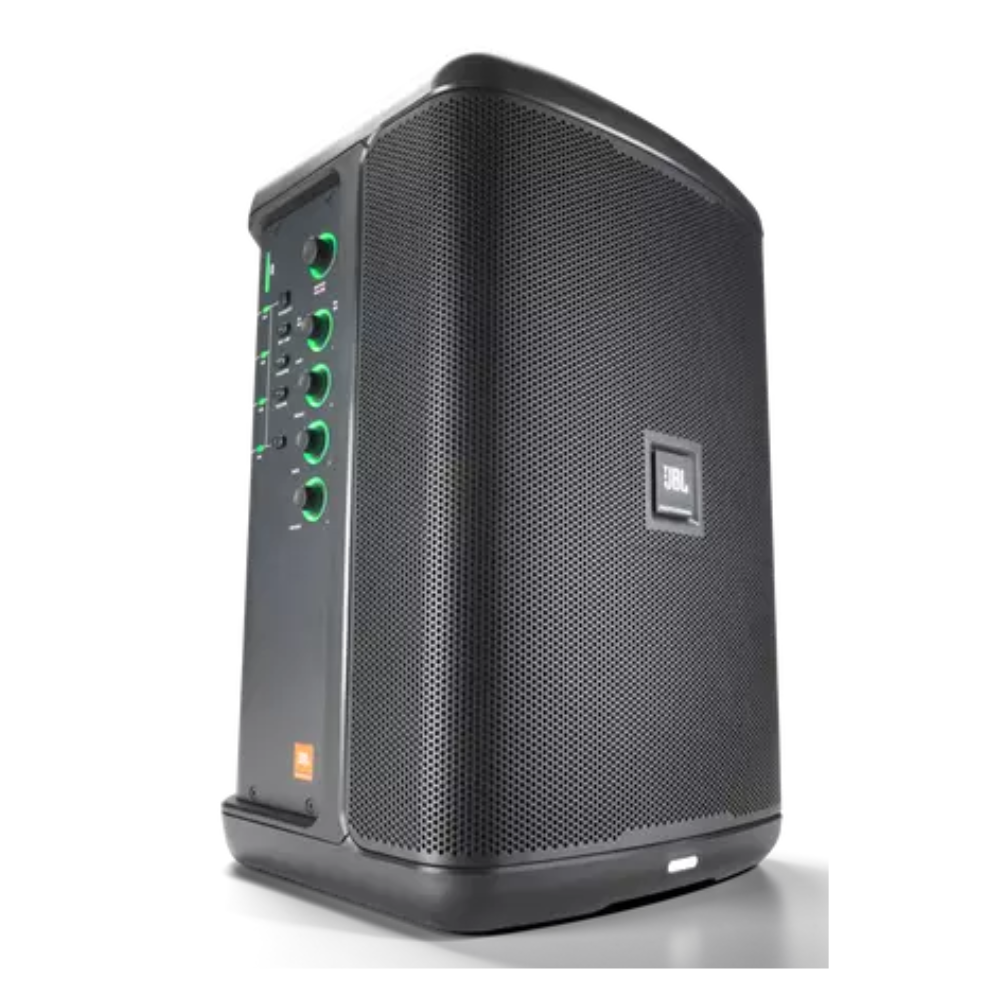

JBL Eon One Compact
FEATURES
• 112 dB output—the highest volume in its class
• 8-inch woofer with deep low-frequency performance down to 37.5 Hz
• Ultralight unit weighs just 17.6 pounds (8 kg)
• Set up quickly and easily using JBL Compact Connect app presets
• Sound your best with professional effects including EQ, reverb, chorus and delay • Balance your volume levels with built-in 4-channel mixer
• Optimize your sound with 8-band output EQ, customizable via presets
• Stream music from your phone or tablet via Bluetooth to up to four EON One Compact units
• Operate two EON ONE Compact units in stereo mode
• Two pro-grade preamps deliver fuller, richer sound from any microphone
• Connect mics, instruments and playback devices with two XLR/TRS combo jacks, one 1/4-inch hi-Z guitar input and one 1/8-inch (3.5 mm) aux input
• Phantom power supports condenser mics
• One-touch ducking feature automatically lowers music volume when speech input is detected, ensuring every word is heard clearly
• Two USB 3.0 ports allow high-speed charging of external devices
SPECIFICATIONS
| System Type | Self-powered, two-way, 8” woofer, 1” tweeter |
| Max SPL | 112 dB |
|
Dimensions
Weight
|
291 x 255 x 399 mm (11.46 x 10.04 x 15.71 in) 8 kg (17.63 lb) |
|
Power Rating:
|
150W peak |
|
Coverage Pattern
|
100º x 60º |
|
Battery Life |
12 hrs |
|
Battery Charge Time
|
2.5 hours with no signal, 6 hours with signa |
|
Inputs:
Outputs: Mixer: Effects: Bluetooth: Range: USB: Charging Ports: |
2x XLR/TRS combo jacks, 1x 1/4” hi-Z, 1x 1/8” aux |
|
OPTIONAL EXTERNAL DUAL BATTERY CHARGER POWER DRAW: USB type A to 5.5 mm barrel jack BATTERY CHARGE TIME: 1 battery = <3.5 hours, 2 batteries = <7 hours DIMENSIONS (D x W x H): 171 x 220 x 67 mm (6.72 x 8.65 x 2.62 in) |
|
OPTIONAL USB POWER CABLES CONNECTORS: 70W VOLTAGE (UP-CONVERT): 5V to 9V (9V DC cable); 5V to 12V (12V DC cable) OUTPUT CURRENT: 1300mA LENGTH: 1 m |
