Description
Technical Details
Model: SN7400N
Dimension: 9.1 x 6.3 x 7.1 inches
Weight: 0.16 ounces
Maximum High Level Output Current: -0.4mA
Maximum Operating Temperature: +70 °C
Number Of Elements: 4
Number of Inputs per Gate: 2
Schmitt Trigger Input: No
Minimum Operating Supply Voltage: 4.75 V
Maximum Propagation Delay Time @ Maximum CL: 22 ns @ 5 V
Propagation Delay Test Condition: 15pF
Package Type: PDIP
Mounting Type: Through Hole
Minimum Operating Temperature: 0 °C
Logic Family: 74
Logic Function: NAND
Maximum Operating Supply Voltage: 5.25 V
Pin Count: 14
Maximum Low Level Output Current: 16mA

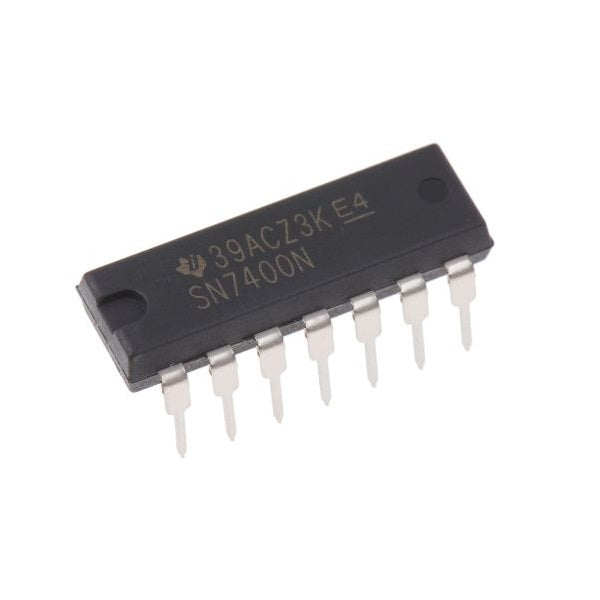

Texas Instruments SN7400N, Quad 2-Input NAND Logic Gate, 14-Pin PDIP
