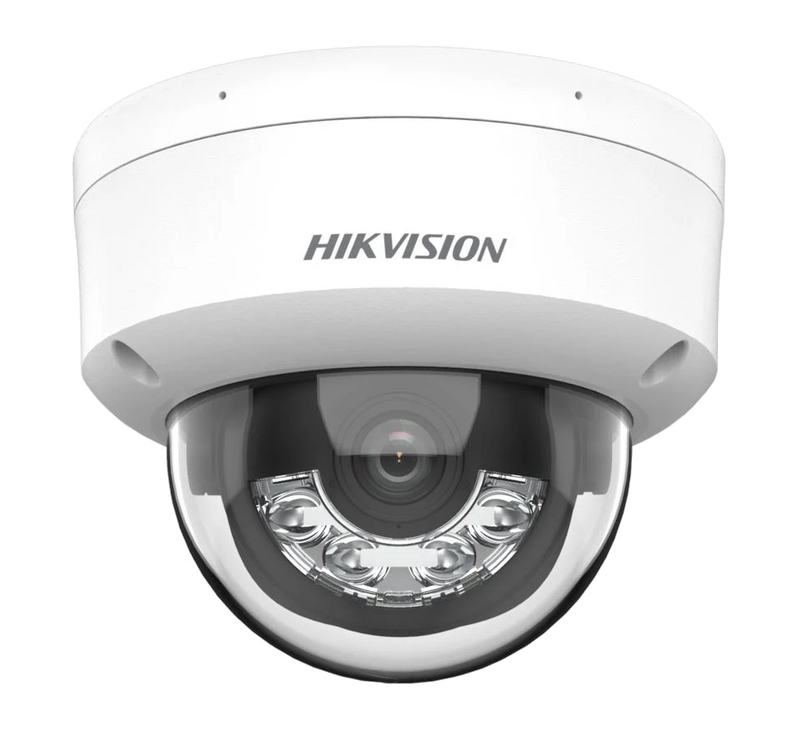

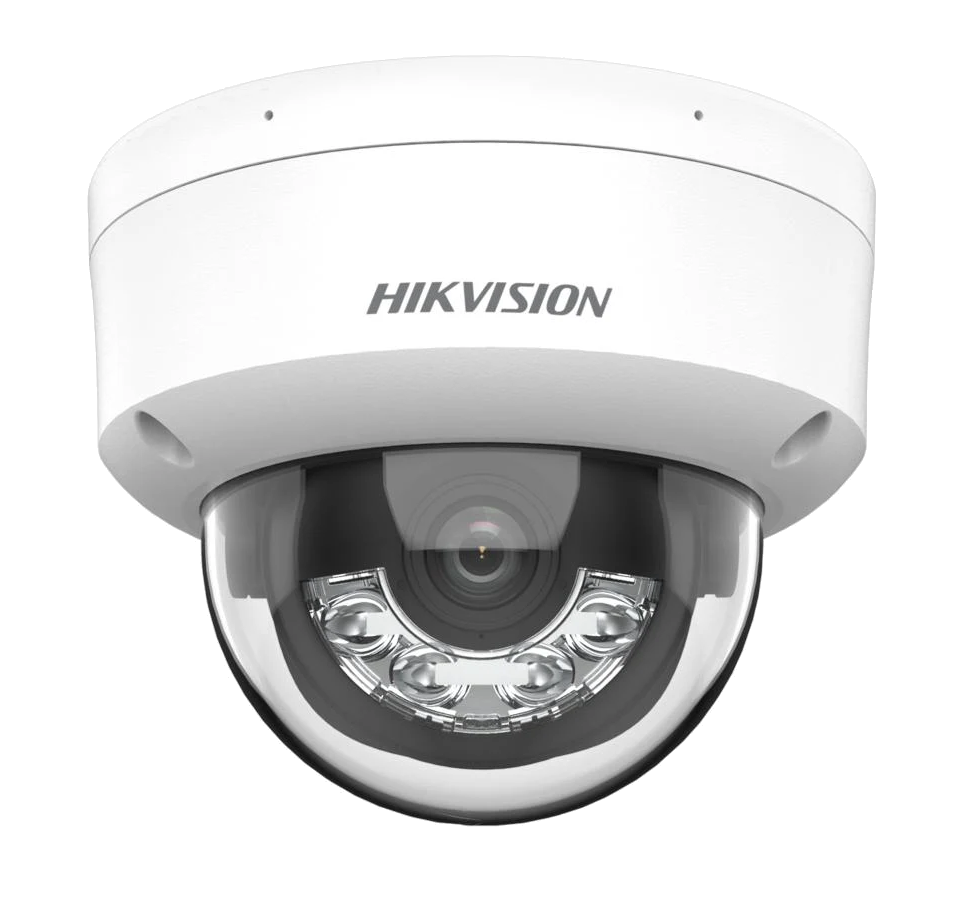

Hikvision 6 MP Acusense Smart Hybrid Light Fixed Dome Network Camera

IMAGE SENSOR

• Type: 1/2.4" Progressive Scan CMOS

• Max. Resolution: 3200 × 1800

• Minimum Illumination:

  • Color: 0.005 Lux @ (F1.6, AGC ON)

  • 0 Lux with IR or White Light

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR Cut Filter

• Angle Adjustment:

  • Pan: 0° to 355°

  • Tilt: 0° to 75°

  • Rotate: 0° to 355°

---

LENS

• Lens Type: Fixed focal lens (Options: 2.8 mm or 4 mm)

• Mount: M12

• Iris: Fixed

• Aperture: F1.6

Field of View (FOV):

• 2.8 mm:

  • Horizontal: 105°

  • Vertical: 55°

  • Diagonal: 127°

• 4 mm:

  • Horizontal: 78°

  • Vertical: 38°

  • Diagonal: 96°

Depth of Field:

• 2.8 mm: 1.8 m to ∞

• 4 mm: 3.1 m to ∞

DORI (Detect/Observe/Recognize/Identify):

• 2.8 mm: D 76 m, O 30 m, R 15 m, I 7 m

• 4 mm: D 115 m, O 45 m, R 23 m, I 11 m

---

ILLUMINATOR

• Light Types: IR and White Light

• Range: Up to 30 m

• Smart Light: Yes

• IR Wavelength: 850 nm

---

VIDEO

Frame Rates:

• Main Stream:

  • 50 Hz: 25 fps @ 3200×1800, 2688×1520, 1920×1080, 1280×720

  • 60 Hz: 30 fps @ same resolutions

• Sub Stream:

  • 50 Hz: 25 fps @ 1280×720, 640×480, 640×360

  • 60 Hz: 30 fps @ same resolutions

• Third Stream:

  • 50/60 Hz: 10 fps @ 1920×1080, 1280×720, 640×480, 640×360

  • Note: Only available under specific settings

Compression:

• Main Stream: H.265, H.264, H.264+, H.265+

• Sub Stream: H.265, H.264, MJPEG

• Third Stream: H.265, H.264

Bit Rate:

• Range: 32 Kbps to 16 Mbps

• H.264 Profiles: Baseline, Main, High

• H.265 Profile: Main

• Bit Rate Control: CBR, VBR

• SVC: Supported for H.264 and H.265

• ROI: 1 fixed region (main and sub-stream)

• Target Cropping: Yes

---

AUDIO (for Model -2U)

• Compression Formats: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

• Bit Rates:

  • G.711: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • MP2L2: 32–160 Kbps

  • MP3: 8–320 Kbps

  • AAC-LC: 16–64 Kbps

• Sampling Rates: 8, 16, 32, 48 kHz

• Environment Noise Filtering: Yes

---

NETWORK

• Supported Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket

• Simultaneous Live Views: Up to 6

• API/SDK: ONVIF (Profile S & G), ISAPI, SDK, ISUP

• Users: Up to 32

• User Roles: Administrator, Operator, User

• Clients: iVMS-4200, Hik-Connect, Hik-Central

• Security Features:

  • HTTPS, TLS 1.1/1.2/1.3

  • Password protection

  • IP address filter

  • Digest and WSSE authentication

---

STORAGE

• Onboard: microSD/SDHC/SDXC (Up to 512 GB), supports encryption and health monitoring

• Network: NAS (NFS, SMB/CIFS), ANR supported

---

BROWSER COMPATIBILITY

• Plug-in required: IE 11

• Plug-in free: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

• Local settings/config: Same browser versions

---

IMAGE FEATURES

• Day/Night Modes: Day, Night, Auto, Schedule

• WDR: 120 dB

• SNR: ≥ 52 dB

• Enhancements: BLC, HLC, 3D DNR

• Privacy Masking: Up to 8 polygon areas

• Image Parameter Switch: Yes

• Rotation Support: Yes

---

INTERFACE

• Ethernet: 1 × RJ45 (10M/100M)

• Audio Input/Output:

  • -2U: Dual array microphone (built-in)

  • -S:

    • 1 input (line-in, 3.3 Vpp max, 4.7 KΩ)

    • 1 output (line-out, 3.3 Vpp max, 100 Ω)

• Alarm (Model -S): 1 input, 1 output (12 VDC, 30 mA max)

• Reset Button: Yes

---

EVENTS

• Basic:

  • Motion Detection (human/vehicle)

  • Video tampering

  • Exception alerts

• Smart Event: Face detection

• Linkage Actions:

  • Upload to FTP/NAS/SD

  • Send email

  • Notify monitoring center

  • Trigger capture

  • -S: Trigger alarm output

---

DEEP LEARNING FEATURES

• Perimeter Protection:

  • Line crossing detection

  • Intrusion detection

  • Human/Vehicle recognition

---

GENERAL INFORMATION

• Power:

  • 12 VDC ±25%, Max 7.8 W

  • PoE: IEEE 802.3af (Class 3), Max 9.5 W

• Materials: Aluminum alloy (base & cover)

• Camera Dimensions: Ø121.5 mm × 97.6 mm (4.78" × 3.84")

• Package Dimensions: 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")

• Weight:

  • Net: ~600 g (1.3 lb)

  • With Package: ~840 g (1.9 lb)

• Operating/Storage Temp: -30°C to 60°C (-22°F to 140°F), 95% RH (non-condensing)

• Languages: 33 (including English, Russian, German, French, Portuguese, Chinese, Japanese, etc.)

• General Features: Heartbeat, mirror, log, email password reset, pixel counter, anti-banding
