Description
| TECHNICAL DETAILS | ABS | PC |
|---|---|---|
| Material of Body | ABS | ABS |
| Material of Cover | ABS | PC |
| Endurance Limit | IK10 | IK10 |
| Protection Class | IP65 | IP65 |
| Rated Voltage | 690V | 690V |
| PRODUCT CODE |
PIECE SIZE E x Y x B (mm) |
SHEET THICKNESS |
VOLUME (m3) |
GROSS WEIGHT (Kg) |
NET WEIGHT (Kg) |
IN BOX | TECHNICAL SPECIFICATION & MATERIAL |
|---|---|---|---|---|---|---|---|

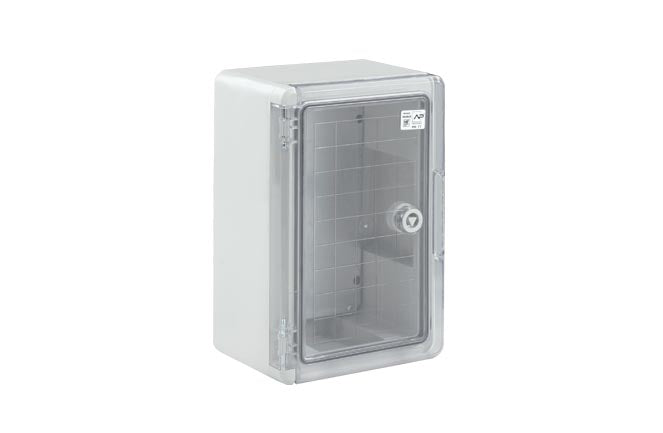

| MD9021 | 200x300x130 | 0,80 | 0,084 | 1,50 | 1,30 | 1 | ABS Board, HF, IK10, IP65, Color: Ral 7035 Grey, Operating Temperature: -40°C/+80°C, 0,80 mm Galvanized Sheet Metal Base, Transparent Pc Cover, Plastic Lock System |
