Specifications
- Model

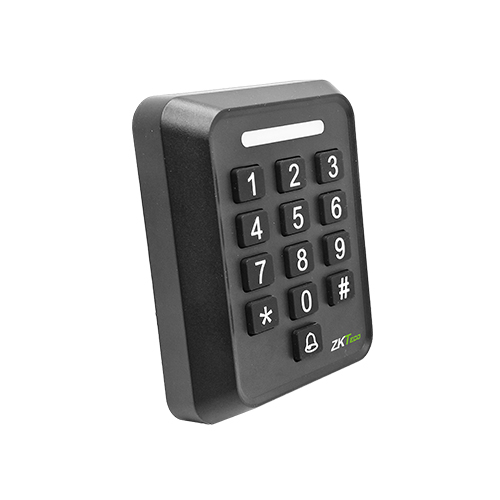

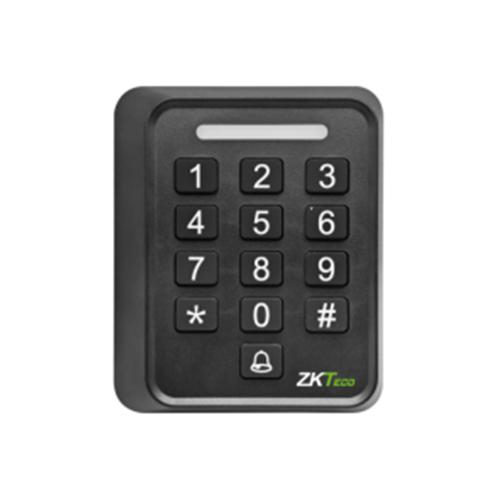

SA60 - Authentication Method
Card / Password / Card + Password (4 to 6 digits, Physical Keypad) - User Capacity
2,000 - Card Capacity
2,000 - Card Type
ID Card @ 125kHz (Standard)
IC Card @ 13.56MHz (Optional) - Verification Speed
<0.16s @ Card - Recognition Distance
<5cm @ Card - Communication

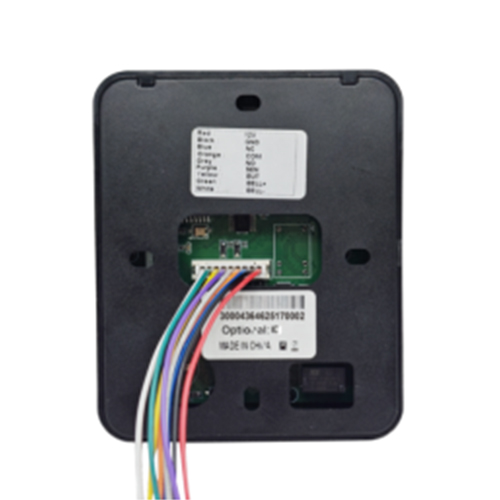

Electric Lock*1, Door Sensor*1, Exit Button*1, Doorbell*1 - Standard Functions
Access Control, Buzzer, Multiple Verification Methods,
LED status indicators:
Flashing Green + 1 Beep: Verification successful
Flashing Blue: Standby
Flashing Blue*2 + 3 Beeps: Verification Failed
Flashing Blue*4 + Flashing Green + 5 Beeps: Factory Restore - Power Supply
DC 12V - Operating Temperature
-20°C to 60°C - Operating Humidity
20% to 80% RH (non-condensing) - Dimensions (L*W*D)
103.5 mm x 86 mm x 20 mm - Gross Weight
0.15 kg - Net Weight
0.1 kg - Installation
Wall-mount - Housing Material
ABS - Certifications
ISO9001, ISO14001
