Specifications
Features:

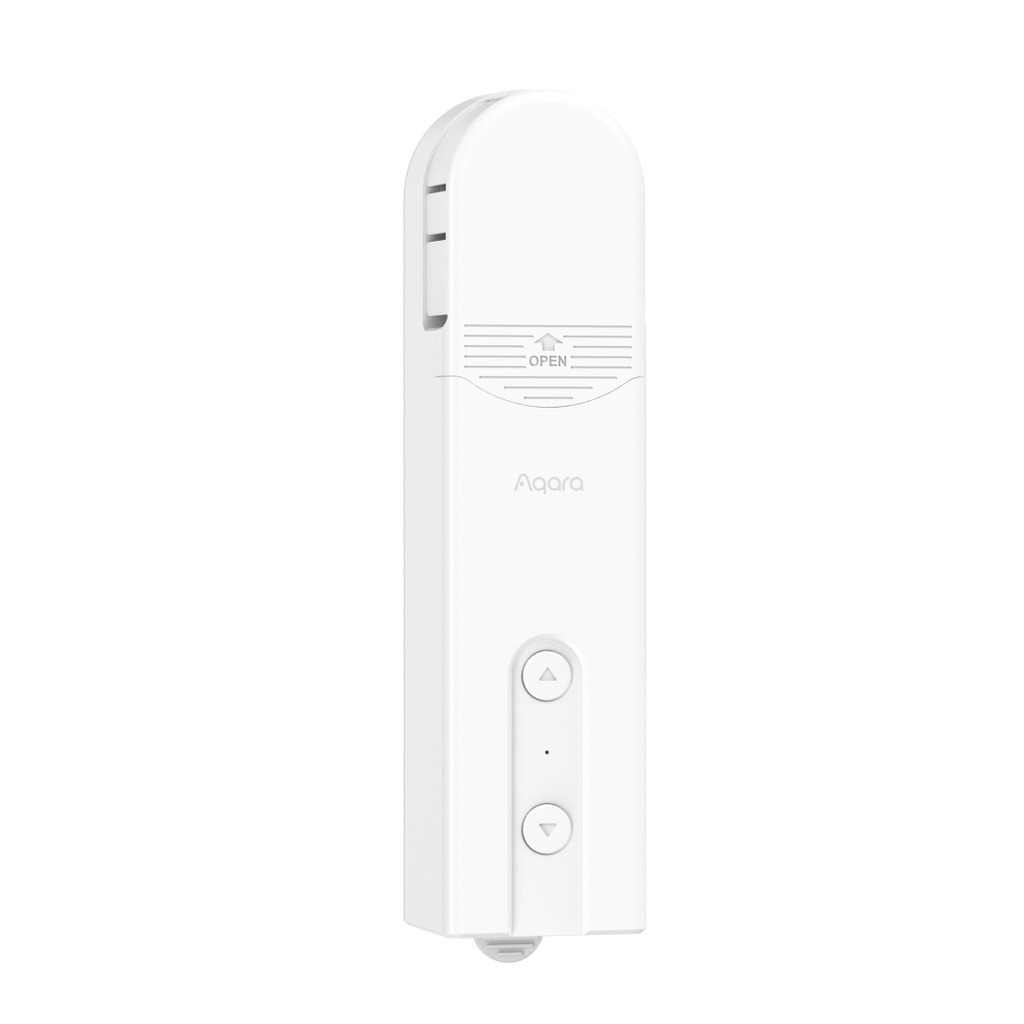

Roller Shade Driver E1 is a Zigbee 3.0 smart product that can help you control the bead chain of your shades/blinds and transform your existing roller shade into a smart one. With an Aqara Zigbee 3.0 hub, it can realize functions such as remote control and timing control via the Aqara Home app, and work with other smart devices to form a smart home system.
Easy installation
Just screw the device to the wall, attach the adapter, insert the beaded cord of your roller shade, and the device will be ready to be connected.
Charging or constant power supply
You can choose between two installation modes: wired or wireless. For charging or powering the device constantly, the most modern and versatile Type-C port is used.
User-defined open/closed positions
The user will be able to pre-set a number of desired open/closed positions and switch between them easily.
All-round compatibility
Compatible with the most popular ecosystem and voice assistants: Alexa, Google, IFTTT, Alice, Marusya are supported.
Wide beaded cord support

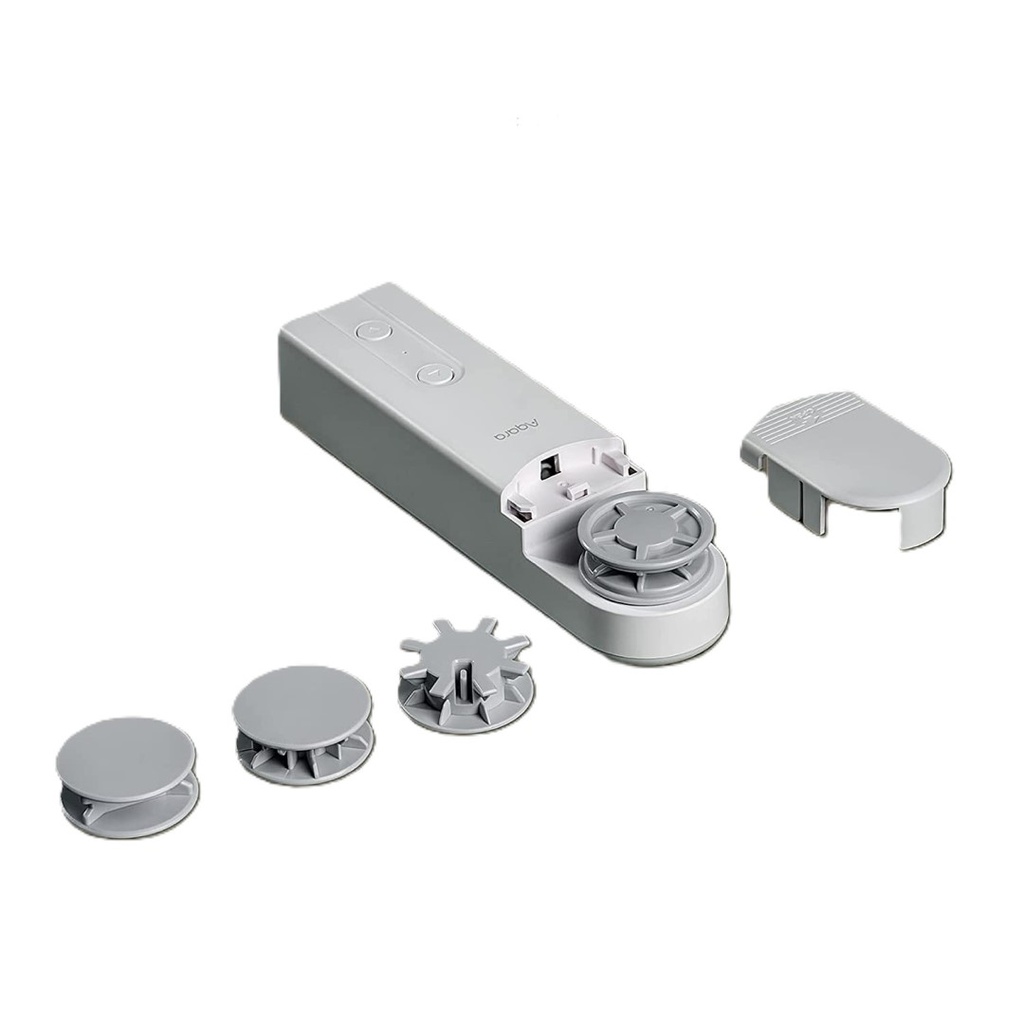

The majority of roller shades with beaded cords ar supported thanks to a variety of included adapters.
2-Months battery life
Thanks to Aqara's battery-saving technologies, industry-leading battery life is achieved. You don't need to worry about charging the device every few weeks.
Smart home automations
Connect the device to the Aqara Home App, and you will be able to control via a button or even forget about operating the device manually: after configuring the automations, it will just work by itself!
FEATURES :
- Control your roller shade
- App remote control
- Smart home automation
- Schedule to open/close
- Custom opening and closing percentage
- Rechargeable lithium battery
- Easy installation
- Compatible with plastic/metal beads with a thickness of 3-6 mm
Specification:
Product Model: RSD-M01 (R-Roller, S-Shade, D-Driver, M-Motor, 01-The First Generation)
Color: White
Wireless Protocol: Zigbee 3.0 IEEE 802.15.4
Dimensions: 43×38.5×175 mm (1.69×1.52×6.89 in.)
Operating Temperature: -10°C ~ 55°C (14°F ~ 131°F)
Operating humidity: 0-95% RH, no condensation
Battery Type: Lithium battery (not replaceable)
Rated Input: 5V 1A
Total Power Consumption: 5W
Standby Time: Two months (supposed to control a roller shade of 1.8m*1.8m up and down once a day)
