Specifications
Features:

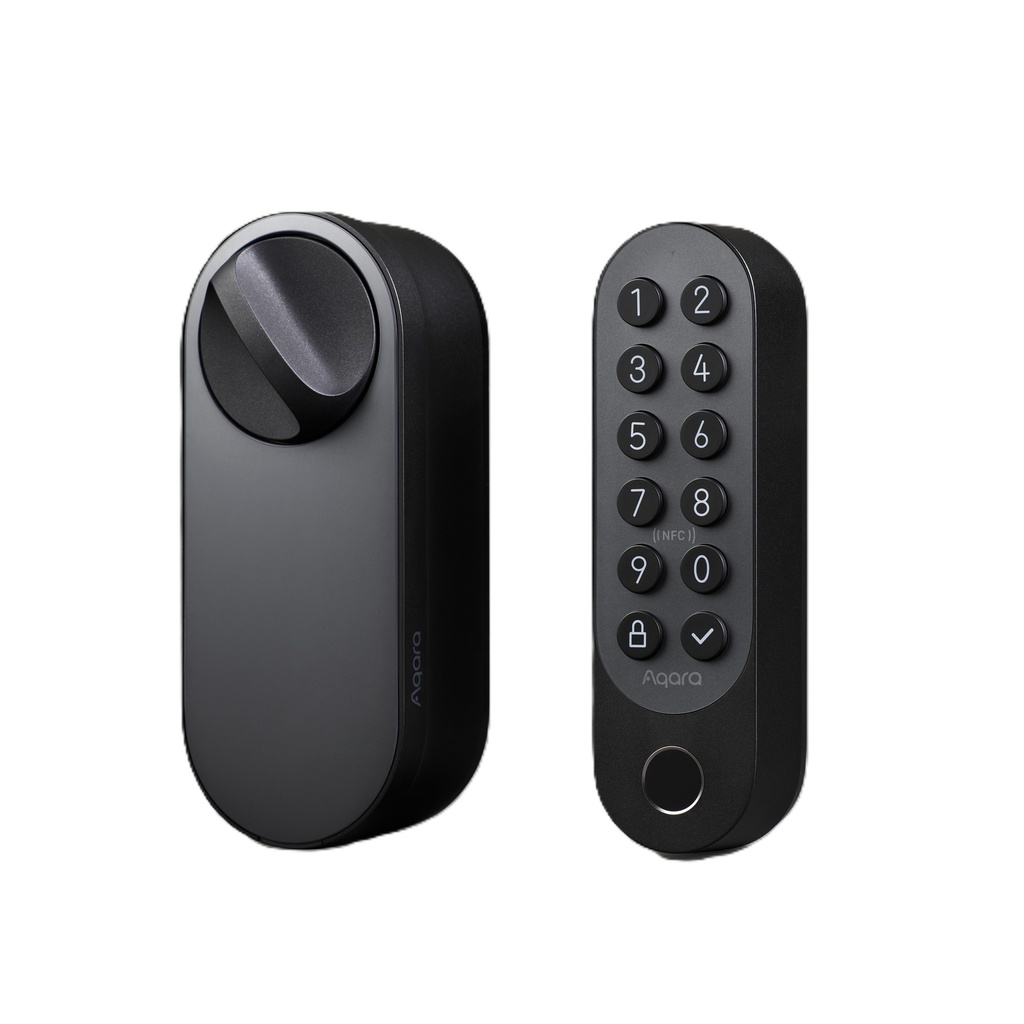

The Aqara Smart Lock U200 brings a modern keyless lifestyle to a broad array of homeowners and renters, and provides multiple secure door entry options, including Apple home keys, which allow iOS users to unlock effortlessly by tapping a compatible iPhone or Apple Watch. The U200 distinguishes itself as one of the first Matter-over-Thread locks to support home key unlocking and is also one of the first retrofit smart locks to feature Apple home key.
Other unlocking methods of the Smart Lock U200 include:
- Fingerprint recognition: Fast and secure access with the high-precision fingerprint reader.
- PINcodes: Personalized codes can be entered on the included, pre-paired wireless keypad. Moreover, Aqara Home users can manage guess access easily with not only periodic passwords but also one-time passwords that can be remotely created, shared, and used even when the lock is disconnected from any platforms.
- Mobileapps and voice assistants: Remote control via Aqara Home, Alexa, Apple Home/Siri, Google Home/Google Assistant, SmartThings, Home Assistant, and more.
- Aqara NFC cards: Quick and easy unlocking using Aqara’s NFCkey fobs.
- Traditional keys: emergency access with the original key.
Installation Requirements
This product is compatible with European standard mortise locks, and American standard deadbolt locks.
Euro Mortise Locks:
- Supports Euro profile and select Scandi cylinders.
- Ensure your cylinder includes an Emergency Function (An Emergency Function enables the cylinder to be unlocked from the outside using a key, even if another key is already inserted on the inside).
US Deadbolt Locks:
- Suitable for single-cylinder deadbolt locks.
- Compatible with backsets of 2-3/8” (60 mm) and 2-3/4” (70 mm).
Specification:
Product Name | Aqara Smart Lock U200 |
Model | EL-D02D |
Dimensions | Door Lock Dimensions: 62.3 × 60.6 × 152.5 mm (2.4 × 2.4 × 6 in.) Keypad Dimensions: 42.7 × 33 × 146 mm (1.7 × 1.3 × 5.7 in.) |
Power Input | Door Lock: Aqara Rechargeable Li-ion Battery 7.4V Keypad: 4 LR3 AAA 1.5V Batteries 12V-24V AC 0.2A 50/60Hz or 12V-24V DC 0.5A wired input |
Wireless Protocols | Thread, Bluetooth 5.1, NFC |
Operating Temperature | -15 °C~66 °C (5 °F~ 150.8 °F) |
Operating Humidity | 0 ~ 93% RH, no condensation |
