Specifications
| Specifications | |
|---|---|
| Model | CS-DL06-R101-WBCP-GR(M) |
| Material and Specification | |
| Panel Material | Aluminum alloy |

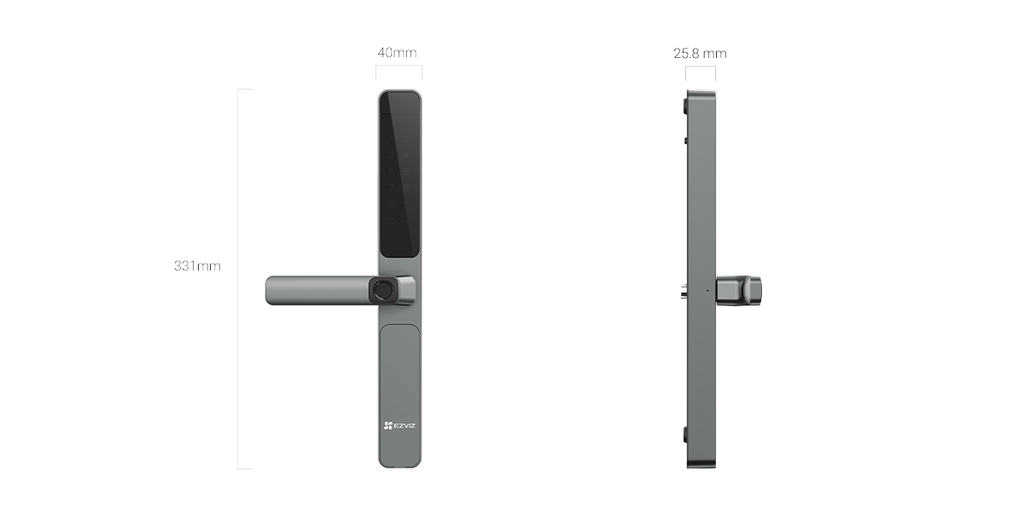

| Panel Size | 331 × 40 × 25.8 mm |
| Color | Metallic grey |
| Lock Body Type | Lift-up lock body |
| Lock Cylinder | 2885 / 3585 |
| Weatherproof | IP65 (front & rear Panel) |
| Emergency Charging | Type-C |
| Working Power | 1,450 mAh Rechargeable Lithium Battery |
| Technical Specification | |
| Unlocking Method | Fingerprint, passcode, proximity card, mechanical key, Bluetooth remote control，Bluetooth key via EZVIZ App, temporary codes, remote unlock |
| User Capacity | 50 pcs |
| Fingerprint Capacity | 50 pcs |
| Passcode Capacity | 50 pcs |
| Card Capacity | 50 pcs |
| Communication Methods | 2.4GHz Wi-Fi, Bluetooth |
| Temporary Access Codes | Supports |
| Anti-Peeping Codes | Supports, Max. 20 digits |
| Low Battery Warning | Supports |
| Privacy Mode | Supports |
| User Management | Supports |
| Real Time Notification | Supports |
| Anti-Test Locking | Supports, enter error 5 times within 5 min, locking 3 min. |
| Anti-Tamper Alarm | Supports |
| Remote Control | Supports |
| Supported Door Thickness | 30-110 mm |
| Working Temperature | -25°C~70°C |
| Operating Humidity | 10%~95% |
| In the box | |
| In the box | - DL06 Pro Front Panel |
| - DL06 Pro Rear Panel | |
| - Hole Templet | |
| - Lock Body | |
| - Standard Screw Bag | |
| - Lithium Battery | |
| - Mechanical Key × 2 | |
| - Square Rod | |
| - Proximity Card × 2 | |
| - Screwdriver | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE |
