Specifications
- Power supply: DC 12V or DC 24V
- Current: 460mA @ 12V or 220mA @ 24V。
- Holding force: GL-200/GL-200P:250kg (600lbs)/ GL-220:544kg(1200lbs)
- Fail safe type. Stainless steel case suitable for outdoors.
- Door position detection output to detect if it is locked correctly.
- Automatic demagnetizer function.
- High efficiency with low consumption of power.
- Optional bracket available to install.
- Operation temperature: -10~70℃; Humidity: 85%Rh max.

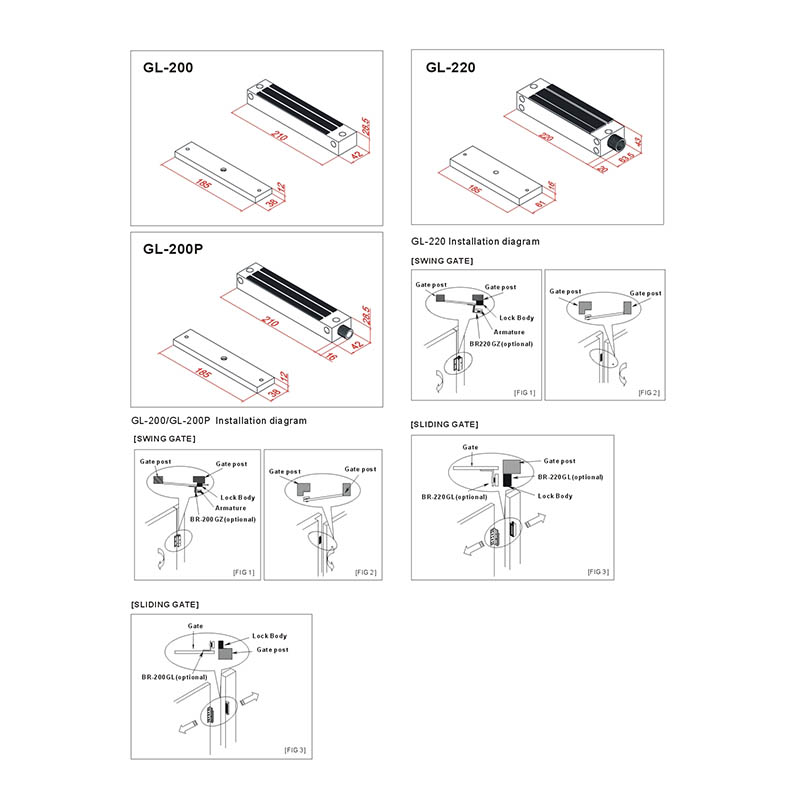

- Dimensions: Lock Body:
GL-200：210(L) x 42(W) x 28.5(D) mm
GL-200P：226(L) x 42(W) x 28.5(D) mm
GL-220： 240(L) x 63.5(W) x 43(D) mm
Armature:
GL-200/GL-200P：185(L) x 38(W) x 12(D) mm
GL-220：185(L) x 61(W) x 16(D) mm - Weight:GL-200 2300g / GL-200P 2300g / GL-220 4900g
- Certification: CE
