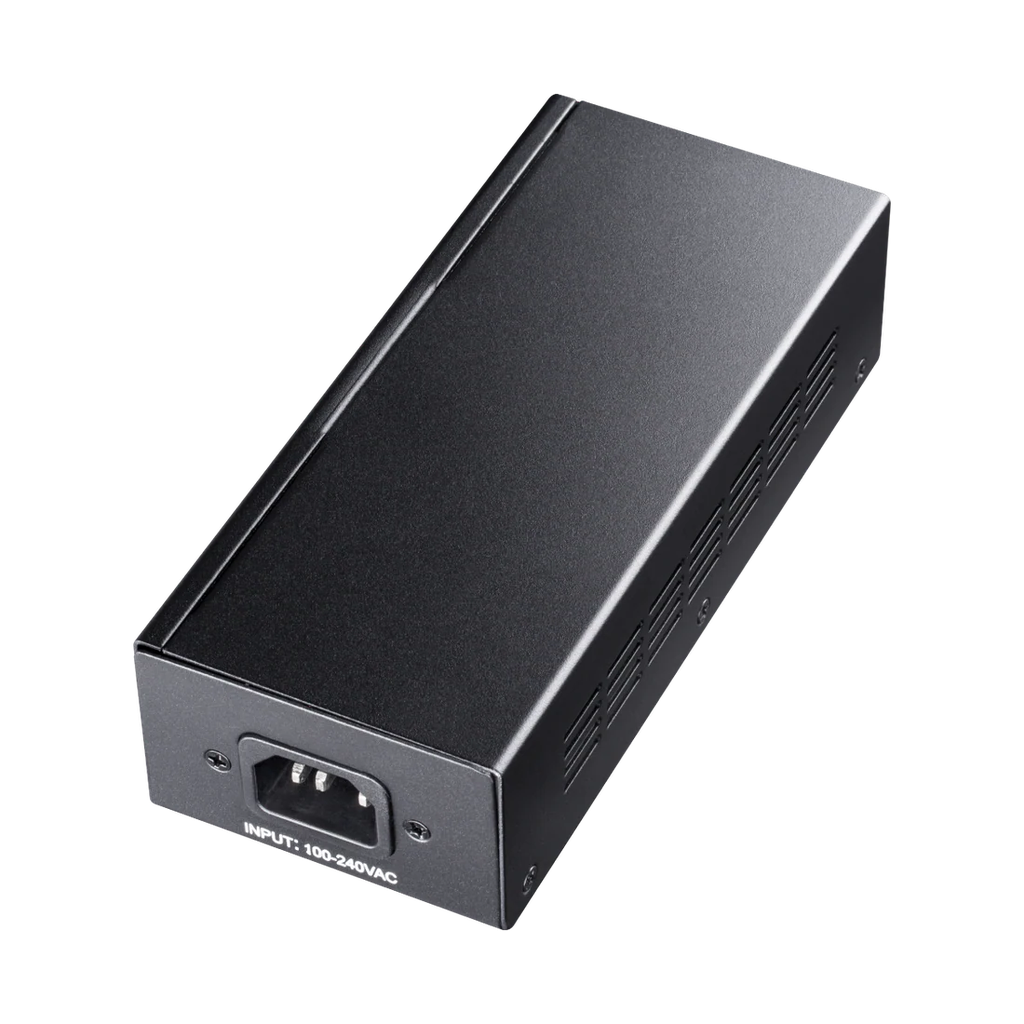

Cudy 60W Gigabit PoE++Injector

This combination does not exist.

BUY NOW

Description Specifications Reviews & Q/A

Description

Model Version	POE300 1.0
Protocols	802.3 Protocols	802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3af PoE 802.3at PoE 802.3bt PoE
PoE	Uplink Stream	1× GbE
	Downlink Stream	1× GbE, 802.3at/af/bt
	Downlink Pin Assignment	Four-Pair
	Transimission Distance	Cat. 5e or higher cable: 100 meters at Gigabit Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment
Interfaces	LED	Power PoE Wattage
	Power Input	AC Inlet
Power	AC	100-240V, 50/60Hz
	Max Power Output	60W
Reliability	Power Protection	Surge Protection ESD Protection Overvoltage Protection Short-Circuit Protection
	EMC	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: RJ45: CM 4kV
	Grounding Methods	Three-Prong Plug
	Environment	Ambient Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~60 ℃ (-40~140 ℉) Operating Humidity: 10%~85% non-condensing Storage Humidity: 5%~85% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Desktop Wall-mount
	Dimension	145×60×40 mm 5.71×2.36×1.57 inches
	Casing Material	Metal
	Product Weight	513 g (18.1 oz.)
Package Content	POE300 Power Cord Mounting Kit Installation Guide
