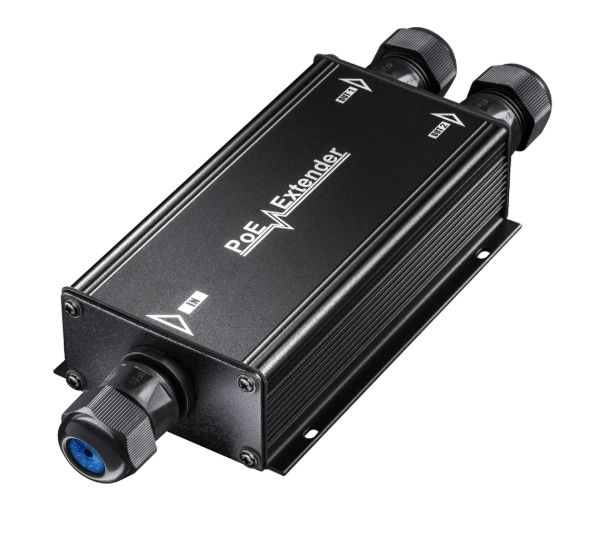

Cudy 2-Channel Outdoor Gigabit PoE Extender

This combination does not exist.

BUY NOW

Description Specifications Reviews & Q/A

Description

Model Version	POE25 1.0
Protocols	802.3 Protocols	802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3x Flow Control 802.3af PoE 802.3at PoE 802.3bt PoE
PoE	Uplink Stream	1× GbE, 802.3at/af
	Uplink PIN Assignment	Mode A / Mode B
	Downlink Stream	2× GbE, 802.3at/af
	Downlink Pin Assignment	Mode A
	Transimission Distance	Cat. 5e or higher cable: 100 meters at Gigabit Note: Distance from extender to switch depends on switch capability. Distance from extender to device follows extender rating
Power	Power Input	≥60W is recommended
	Max Power Output	2× 30W
	Max Power Output Note	The actual power output depends on input
	Max Power Consumption (W)	2W
Reliability	Power Protection	Polarity Protection Overvoltage Protection Short-Circuit Protection Automatic Voltage Regulation
	EMC	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
	Grounding Methods	Grounding Point
	Environment	Ambient Operating Temperature: -25~55 ℃ (-13~131 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~100% non-condensing Storage Humidity: 5%~95% non-condensing
	Ingress Protection Rating	IP67
Certifications	FCC, CE
Mechanical	Install in a Daisy Chain	Up to 3 extenders in a chain
	Installation	Desktop Wall-mount
	Dimension	230×90×40 mm 9.06×3.54×1.57 inches
	Casing Material	Metal
	Product Weight	305 g (10.76 oz.)
Package Content	POE25 Mounting Kit Installation Guide
