Specifications
Specifications & Features:

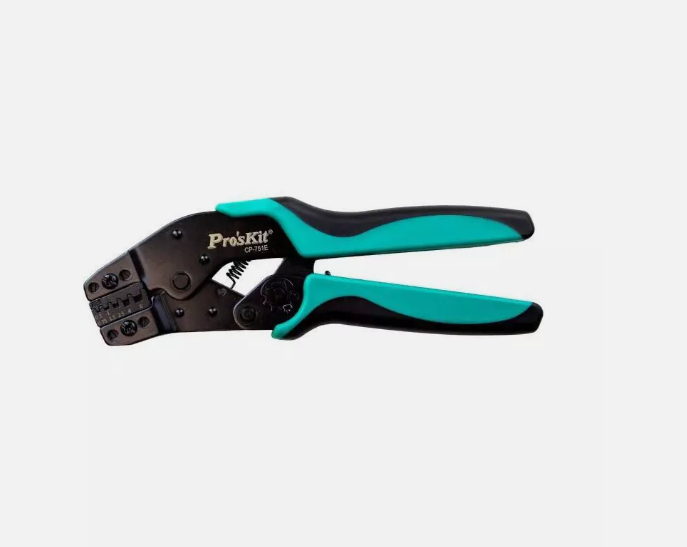

- Model: CP-751E
- Size: 7.5 inches (190mm)
- Material: High-quality Carbon Steel body with black oxide finish; AISI 4140 Alloy Steel dies
- Handles: Ergonomic, non-slip TPR (Thermoplastic Rubber)
- Mechanism: Ratchet system for effort saving and pressure adjustment
- Application: Pin Terminals (Non-Insulated)
- Wire Gauge Compatibility:
- AWG: 20-18, 17-16, 14, 12, 10
- DIN: 0.5-0.75, 1.0-1.5, 2.5, 4.0, 6.0 mm²
- JIS: 0.5-0.75, 0.9-1.25, 2.0, 3.5, 5.5 mm²
- Key Features: Precise dies, integral lock, high crimping quality, adjustable pressure
