Description
Specifications
| Category | Specification |
|---|

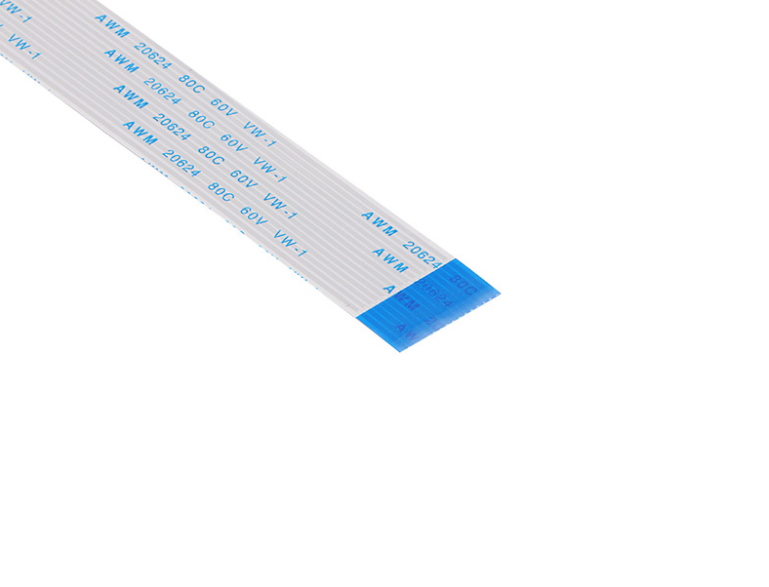

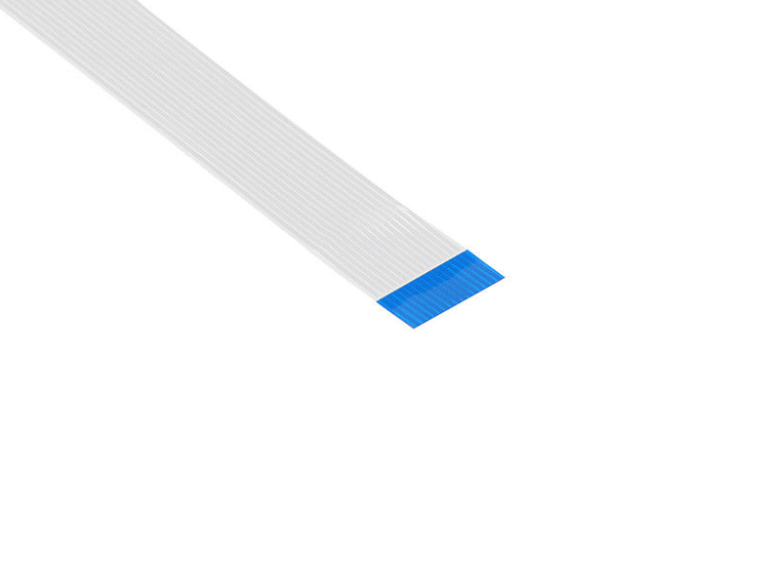

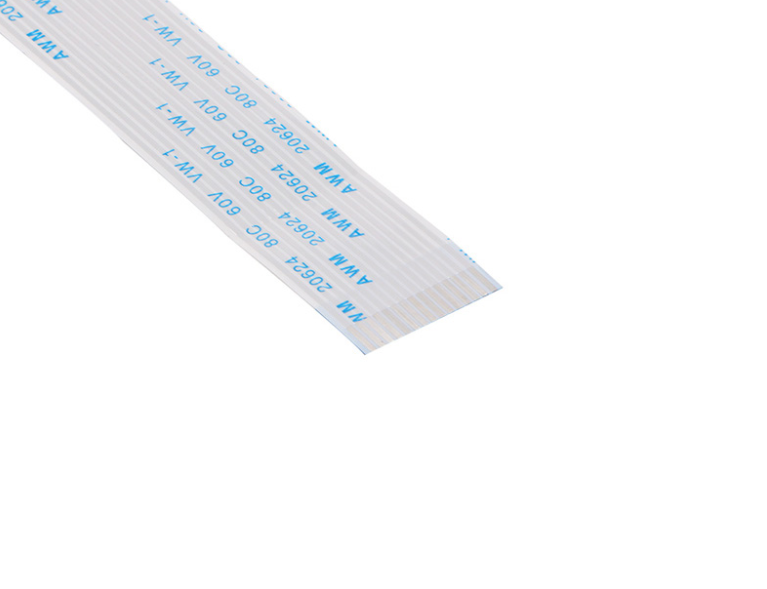

| Product Name | Camera Cable (FFC/FPC) |
| Model | OKY9053 |
| Brand | OEM |
| Compatible With | Raspberry Pi Camera Module (CSI port) |
| Connector Type | 15-pin FFC / FPC connectors on both ends |
| Cable Type | Flexible Flat Cable (FFC) / Flexible Printed Cable (FPC) |
| Pin Count | 15 pins |
| Orientation | Standard Raspberry Pi camera ribbon orientation |
| Length | (Model dependent — typically ~15–30 cm) |
| Pitch | 0.5 mm (standard Pi camera ribbon cable pitch) |
| Voltage / Signal | CMOS / MIPI CSI-2 signals (camera interface) |
| Mounting / Fit | Fits 15-pin CSI connectors on Pi boards & camera modules |
| Shielding | Flexible ribbon insulation (typical) |
| Temperature Range | –20 °C to +70 °C (common FFC range) |
| Application | Connect Raspberry Pi camera module to Raspberry Pi board |
| Color | Flat ribbon (usually tan/blue end stiffeners) |
