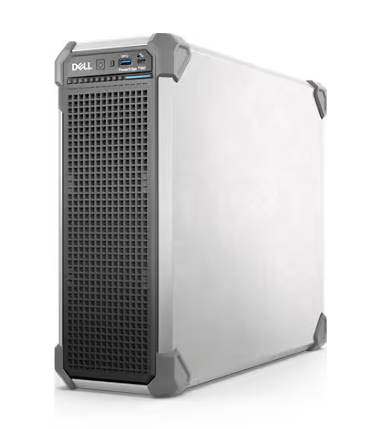

DELL PowerEdge 3X3.5" T160 Server - 2TB SATA, E-2414, 16GB 5600, 300W

Processor

One Intel^® Xeon^® 6300 series processor or one Intel^® Xeon^® E-2400 series processor with up to 8 cores or
One Intel^® Pentium^® G7400/ G7400T processor with 2 cores

Operating System

Canonical^® Ubuntu^® Server LTS
Microsoft^® Windows Server^® with Hyper-V
RedHat^® Enterprise Linux
SUSE^® Linux Enterprise Server
VMware^® ESXi^®



Chipset

Intel^® C262 Chipset

Accelerators

NA

Memory*

DIMM Speed
Up to 4400 MT/s

Memory Type
ECC UDIMM

Memory Module Slots
4 DDR5 DIMM slots

Maximum RAM
ECC UDIMM 128 GB

Storage

Front Bay
Up to 3 x 3.5-inch cable SAS/SATA HDD/SSD, max 48 TB
Up to 3 x 3.5-inch + 2 x 2.5-inch cable SAS/SATA HDD/SSD, max 63.36 TB

Mid Bay
NA

Rear Bay
NA

Storage Controllers

Internal Controllers
HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter

External Controllers
HBA355e Adapter

Software RAID
S160

Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
USB

Security

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Secured-core server
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server:
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module

Consoles:
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plug in
OpenManage Enterprise Integration for VMware^® vCenter^™
OpenManage Integration for Microsoft^® System Center
OpenManage Integration with Windows Admin Center


Mobility:
OpenManage Mobile

Tools:
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI


OpenManage Integrations:

BMC Truesight
Microsoft^® System Center
OpenManage Integration with ServiceNow
RedHat^® Ansible^® Modules
Terraform Providers
VMware^® vCenter™ and vRealize Operations Manager

Power Supplies

300 W Bronze 100—240 V AC, cabled
500 W Platinum 100—240 V AC, cabled

Ports

Network Options
2 x 1GbE LOM on Planar

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 3.2 Gen1

Rear Ports
1 x Dedicated iDRAC (RJ-45) port
3 x USB 2.0
3 x USB 3.2 Gen1
1 x Serial
1 x VGA
2 x Ethernet ports

Internal Ports
1 x USB 3.2 Gen1



Slots

PCIe
Up to two PCIe slots:
Slot 1: 1 x 8 slot with x4 bandwidth, Half Height, Half Length
Slot 2: 1 x 16 slot with x16 bandwidth, Half Height, Half Length

Chassis

Fans
Up to two fans

Bezel

Filter Bezel

Form Factor

3U tower server

Dimensions & Weight

Height

13.09 in. (332.5 mm) (with feet)
12.97 in. (329.5 mm) (without feet)

Width
5.21 in. (132.52 mm)

Depth
16.09 in. (408.8 mm) (with bezel)
15.89 in. (403.8 mm) (without bezel)


Weight
25.66 lbs. (11.64 kg)
