Description
Specifications
| Category | Specification |
|---|---|

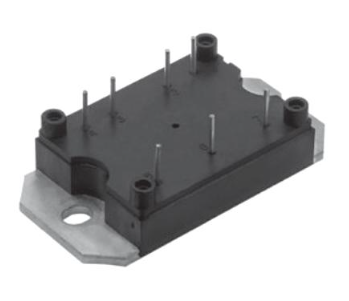

| Product Name | Three-Phase Bridge Rectifier (Power Module) |
| Model | 40MT160PBPBF |
| Brand | OEM |
| Device Type | Three-Phase Diode Bridge Rectifier |
| Technology | Silicon Power Diodes |
| Maximum Average Forward Current (IF(AV)) | 40 A (continuous, per datasheet class) |
| Surge Current Capability | Up to ~400 A (8.3 ms half-sine, typical for MT series) |
| Repetitive Peak Reverse Voltage (VRRM) | 1600 V |
| Operating Current Range | Suitable for ~45 A up to 100 A system designs (with proper heatsinking) |
| Number of Phases | 3-Phase |
| Rectifier Configuration | Full-wave bridge |
| Output Type | DC |
| Forward Voltage Drop | ~1.1–1.3 V per diode (typical) |
| Isolation Voltage | ~2500 V RMS (case to terminals, typical) |
| Mounting Type | Chassis / Panel mount |
| Package Style | MT power module |
| Base Material | Electrically isolated metal base |
| Cooling Method | External heatsink required |
| Operating Temperature | −40 °C to +150 °C (junction) |
| Terminals | Screw / fast-on terminals |
| Compliance | RoHS compliant (PBF = Lead-Free) |
| Applications | Motor drives, power supplies, inverters, industrial rectification |
