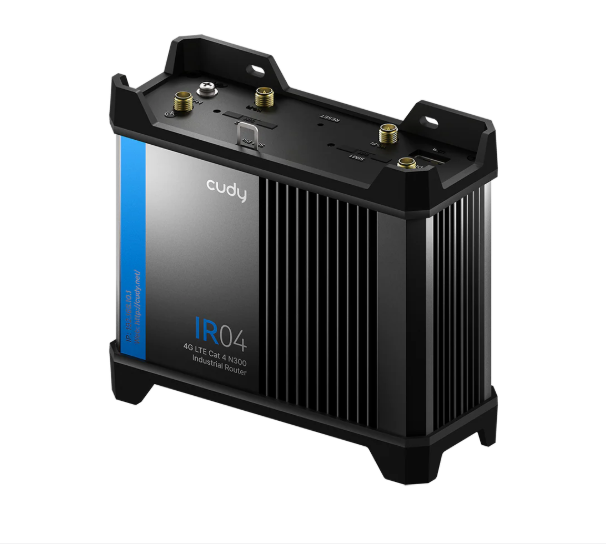

Cudy 4G Indusrial Router

https://live-linkserve.odoo.com/web/image/product.template/63465/image_1920?unique=4dd4e04
(0 review)

3,605.00 MVR 3605.0 MVR 3,605.00 MVR VAT Included

3,337.96 MVR VAT Included

Not Available For Sale

    This combination does not exist.

    ADD TO CART ADD TO QUOTE
    BUY NOW
    Contact Us

    Terms and Conditions

    Description

    Specifications

    Model VersionIR04 1.0
    CPUCPU Details580 MHZ Single-Core, MIPS24KEC
    Memory/StorageFlash/ROM16 MB (128 Mbit) NOR
    DDR/RAM128 MB (1 Gbit) DDR2
    CellularCellular Standards4G Cat. 4
    Cellular Antennas2× Detachable
    Detachable Cellular Antennas ConnectorSMA Female
    SIM Options2× Mini SIM Slots (2FF)
    Available VersionsEU, US, ME, LA
    EU Version CellularSuitable RegionEurope, Middle East, Africa, SEA, Australia, New Zealand
    Max DL Speed150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
    Max UL Speed50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
    AdvancedDL 2×2 MIMO
    Cellular BandsLTE-FDD: B1/3/5/7/8/20/28
    LTE-TDD: B38/40/41
    WCDMA: B1/5/8
    US Version CellularSuitable RegionUnited States, Canada
    Max DL Speed150 Mbps
    Max UL Speed50 Mbps
    AdvancedDL 2×2 MIMO
    Cellular BandsLTE-FDD: B2/4/5/12/13/14/66/71
    WCDMA: B2/4/5
    LA Version CellularSuitable RegionLatin America, Australia, New Zealand
    Max DL Speed150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
    Max UL Speed50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
    AdvancedDL 2×2 MIMO
    Cellular BandsLTE-FDD: B1/2/3/4/5/7/8/28/66
    LTE-TDD: B40
    WCDMA: B1/2/4/5/8
    GSM: B2/3/5/8
    ME Version CellularMax DL Speed150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
    Max UL Speed50 Mbps (LTE-FDD), 35 Mbps (LTE-TDD)
    AdvancedDL 2×2 MIMO
    Cellular BandsLTE-FDD: B1/3/5/7/8/20/28
    LTE-TDD: B38/40/41
    WCDMA: B1/8
    GSM: B3/8
    Wireless2.4 GHz Wi-Fi Speed300 Mbps
    2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    Wi-Fi Antennas2× Detachable
    Detachable Wi-Fi Antennas ConnectorRP-SMA Female
    FEM or PA/LNA2.4 GHz: 2× Internal
    Range PerformanceMax: 130 m (427 ft)
    Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
    Wall PerformanceOne wooden walls with thickness < 10 cm (4'')
    One concrete wall with thickness < 10 cm (4'')

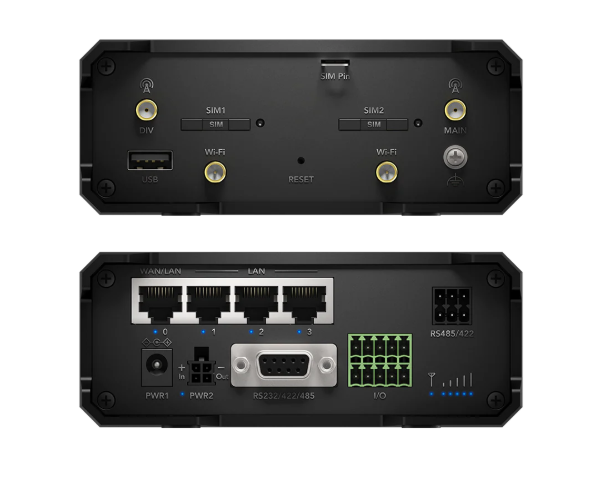

    InterfacesPhysical ButtonsReset Button
    10/100 Mbps RJ45 Ports4
    Ethernet NotesPort 1 is WAN/LAN configurable, and the rest are LAN ports
    USB Ports1× USB 2.0
    Industrial Sockets
    • 1× DB9
    • 1× 6-PIN
    • 1× 10-PIN
    DB9 Protocols
    • RS232
    • RS422
    • RS485
    6-PIN Industrial Socket Protocols
    • RS485
    • RS422
    IO
    • 1× Digital Dry Input (0-1.2V for state 1 | 1.8-3V for state 0) and GND1
    • 1× Digital Galvanically Isolated Input (0-4V for state 0 | 9-30V for state 1) and GND2
    • 1× Digital Open Collector Output (Max. 30V⎓250mA) and 1× GND3
    • 1× +V (<30V) and GND 3 for External VCC for the Digital Output
    • 1× C & NO - Common and Normally Open contacts of the internal Non-Latching Relay respectively (Max. 24V⎓4A or 40V~4A)
    • 1× A and GND1 - ADC input. Analog voltage range: 0-24V. The input can be configured for 4-20 mA sensor protocol as current measurement (AcL)
    Other IO1× Ignition Sensing and GND on the 4-PIN Power Connector
    LED
    • Power
    • Cellular
    • Cellular Signal Strength
    • Link/ACT of Each Ethernet Port
    Power Input
    • DC Jack
    • PoE via Ethernet Port
    • 4-PIN DC
    Power Input NoteOnly two PINs in the 4-PIN power ports are used for powering. The other two are used for ignition sensing.
    PowerPower Methods
    • DC
    • 802.3at/af PoE
    • Passive PoE
    Power Methods NoteThe WAN/LAN port accepts 802.3at/af PoE. The LAN ports accept Passive PoE.
    DC Input12V 1A
    DC Terminal Block Input11-57V⎓
    Passive PoE Input24-57V, Max. 12W
    Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC
    Output: 12V 1A DC
    Max Power Consumption (W)9.6W
    Idle Power Consumption (W)2.8W
    ReliabilityGrounding MethodsGrounding Point
    EMCIEC/EN 61000-4-2, Level 4 ESD: Contact: 8kV; Air: 15kV
    IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m
    IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV
    IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
    IEC/EN 61000-4-6, Level 3 CS: 10V
    IEC/EN 61000-4-8, Level 5 PFMF
    IEC/EN 61000-4-9, Level 5
    IEC/EN 61000-4-10, Level 5
    Power Protection
    • Polarity Protection
    • Overvoltage Protection
    • Surge Protection
    ShockIEC/EN 61373
    VibrationIEC/EN 61373
    Free FallIEC/EN 60068-2-32
    Ingress Protection RatingIP30
    EnvironmentOperating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
    Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
    Operating Humidity: 5% ~ 95% non-condensing
    Storage Humidity: 5% ~ 95% non-condensing
    CertificationsFCC, CE
    MechanicalCasing MaterialAluminum Alloy
    DimensionDevice:
    129×114×50.6 mm
    5.08×4.49×1.99 inches
    Mounting Space:
    164×130×52 mm
    6.46×5.12×2.05 inches
    Product Weight462.0 g (16.3 oz.)
    Installation
    • Wall-mount
    • DIN-Rail
    Package Content
    • IR04
    • Power Adapter
    • Detachable Wi-Fi Antennas
    • Detachable Cellular Antennas
    • 6-PIN Connector
    • 10-PIN Connector
    • 4-PIN Connector
    • Ethernet Cable
    • SIM Adapter KIT
    • Mounting Kit
    • Installation Guide
