Description
Specifications
| Model Version | |
|---|---|

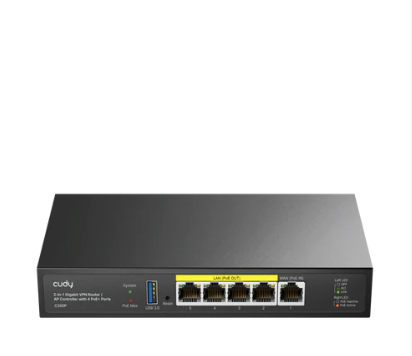

| C200P | |
| CPU | |
| CPU Details | 880 MHz Dual-Core |
| Memory/Storage | |
| Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 256 MB (2 Gbit) DDR3 |
| Interfaces | |
| Gigabit RJ45 Ports | 5 |
| Gigabit RJ45 PoE Ports | #2~#5 |
| Max Power on a Single PoE Ports | 30W |
| PoE Ports Notes | The PoE ports comply with IEEE 802.3at/af standards. |
| Ethernet Notes | 1× WAN Port, 4× LAN Ports |
| USB-A 3.0 Ports | 1 |
| LED |
|
| Physical Buttons | Reset Button |
| Power Input | DC Jack |
| Power | |
| Power Methods |
|
| DC | 54V 1.11A |
| Passive PoE | 24/48V |
| Power Adapter | Input: 100 ~ 240 V, 50 Hz AC Output: 54V 1.11A DC |
| Max Power Consumption (W) | Total: 60W PoE: 55W PoE (when USB Device is plugged in): 50W No PoE: 5W |
| Idle Power Consumption (W) | 2W |
| Reliability | |
| EMS | IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 5% ~ 95% non-condensing Storage Humidity: 0% ~ 100% non-condensing |
| Grounding Methods | Grounding Point |
