Specifications

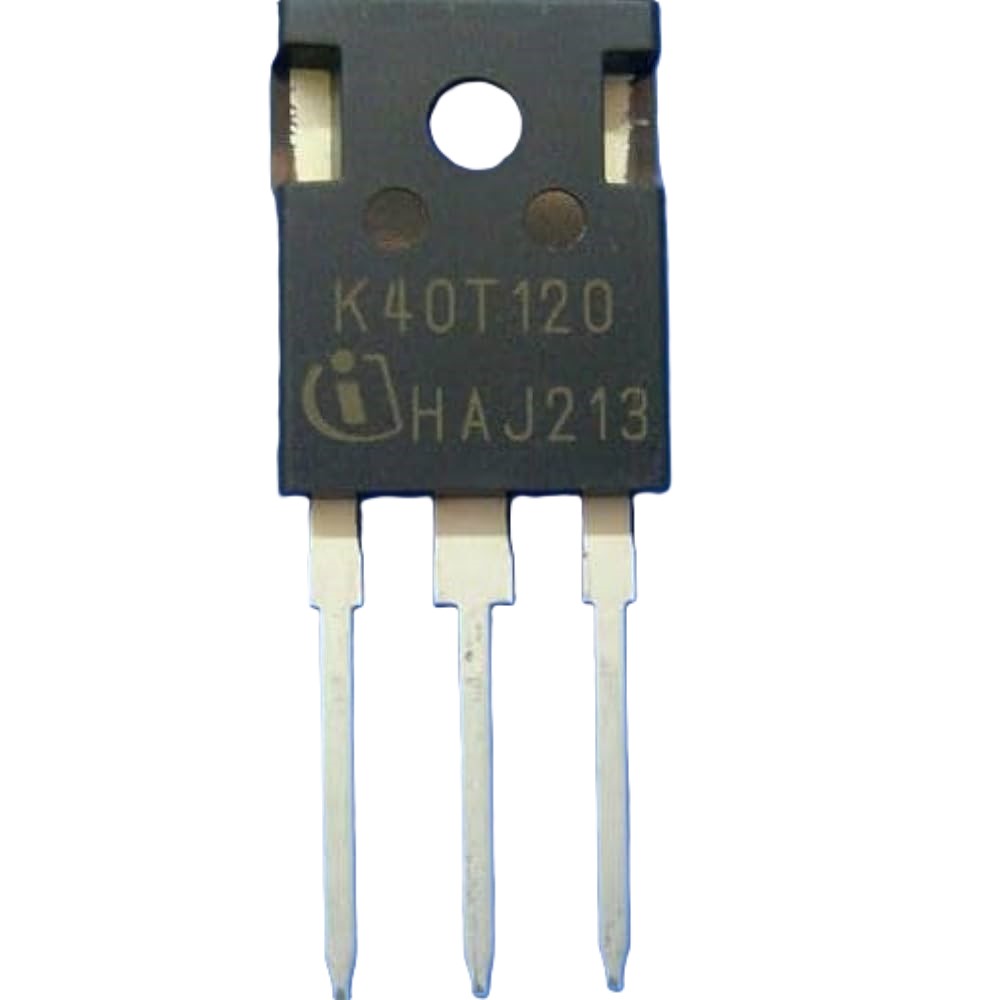

Type Designator: IGF40T120F
Type: IGBT + Anti-Parallel Diode
Type of IGBT Channel: N
Absolute Maximum Ratings
Pc ⓘ - Maximum Power Dissipation: 278 W
|Vce|ⓘ - Maximum Collector-Emitter Voltage: 1200 V
|Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V
|Ic| ⓘ - Maximum Collector Current: 80 A @25℃
Tj ⓘ - Maximum Junction Temperature: 150 ℃
Electrical Characteristics
|VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 1.9 V @25℃
|VGEth|ⓘ - Maximum G-E Threshold Voltag: 7 V
tr ⓘ - Rise Time, typ: 54 nS
Coesⓘ - Output Capacitance, typ: 170 pF
Qg ⓘ - Total Gate Charge, typ: 239 nC
Package: TO247
