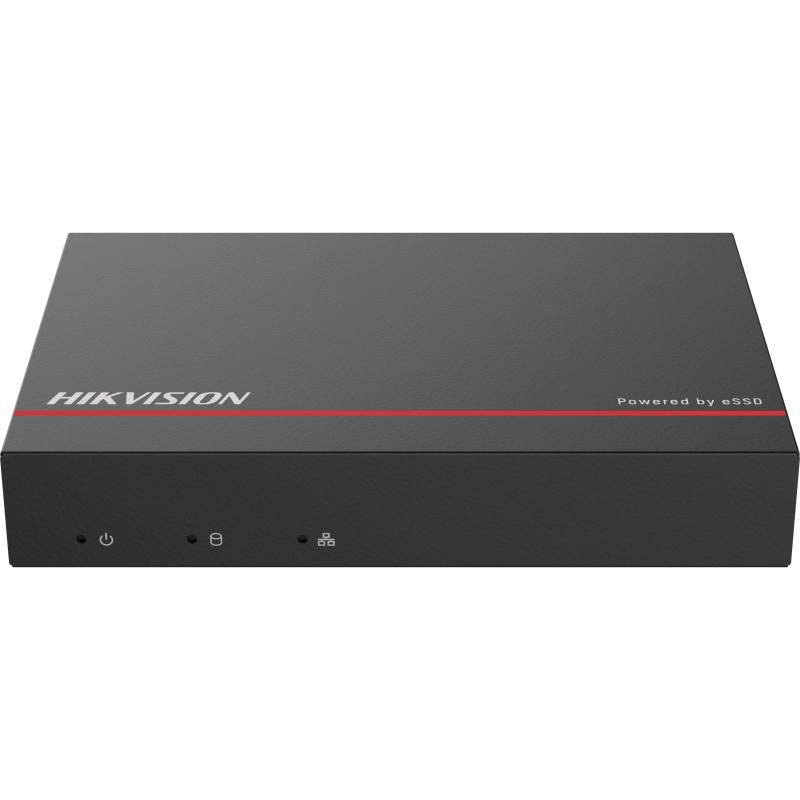

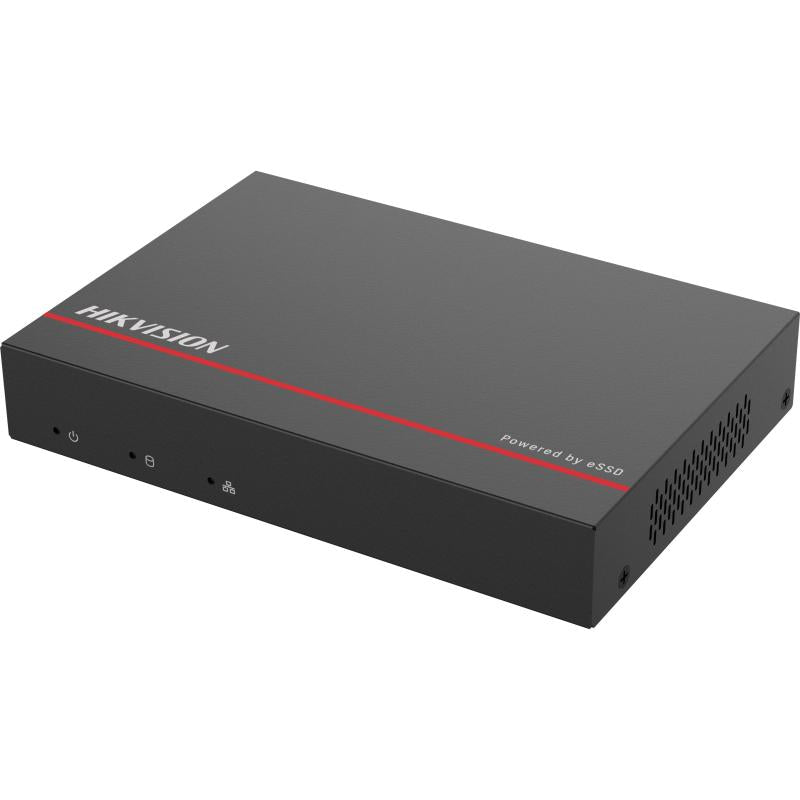

![[86505] Hikvision 4 Channel SSD POE NVR (2TB) Image](/web/image/product.image/5906/image_1024/%5B86505%5D%20Hikvision%204%20Channel%20SSD%20POE%20NVR%20%282TB%29%20Image%20?unique=17c8dd3)
![[86505] Hikvision 4 Channel SSD POE NVR (2TB) Image](/web/image/product.image/5906/image_128/%5B86505%5D%20Hikvision%204%20Channel%20SSD%20POE%20NVR%20%282TB%29%20Image%20?unique=17c8dd3)
Description
Specifications
| Specification | Details |
|---|
| Model | DS‑E04NI‑Q1/4P (SSD 2T) |
| Product Type | 4‑Channel PoE Network Video Recorder (NVR) |
| IP Video Input | Up to 4 channels |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Recording Resolution | 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Decoding Format | H.265, Smart265, H.264, Smart264 |
| Synchronous Playback | 4 channels |
| Decoding Capability | 4‑ch @ 1080p (25 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw, G.711alaw, G.722, G.726 |
| PoE Interface | 4 × RJ45 10/100 Mbps PoE ports |
| PoE Power | ≤ 36 W |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Network Interface | 1 × RJ45 10/100 Mbps |
| Remote Connections | Up to 128 users |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Included Storage | 2 TB SSD |
| USB Interface | 2 × USB 2.0 (rear) |
| HDMI Output | Up to 1920 × 1080 @60Hz, 1600 × 1200 @60Hz, 1280 ×1024 @60Hz, 1280 × 720 @60Hz |
| Power Supply | 48 VDC, 1.04 A |
| Power Consumption (with SSD) | ≤ 10 W |
| Operating Temperature | −10 °C to 50 °C |
| Operating Humidity | 10% to 90% |
| Dimensions (W × D × H) | 160 × 112 × 27 mm |
| Net Weight | ≤ 0.39 kg |
