Specifications

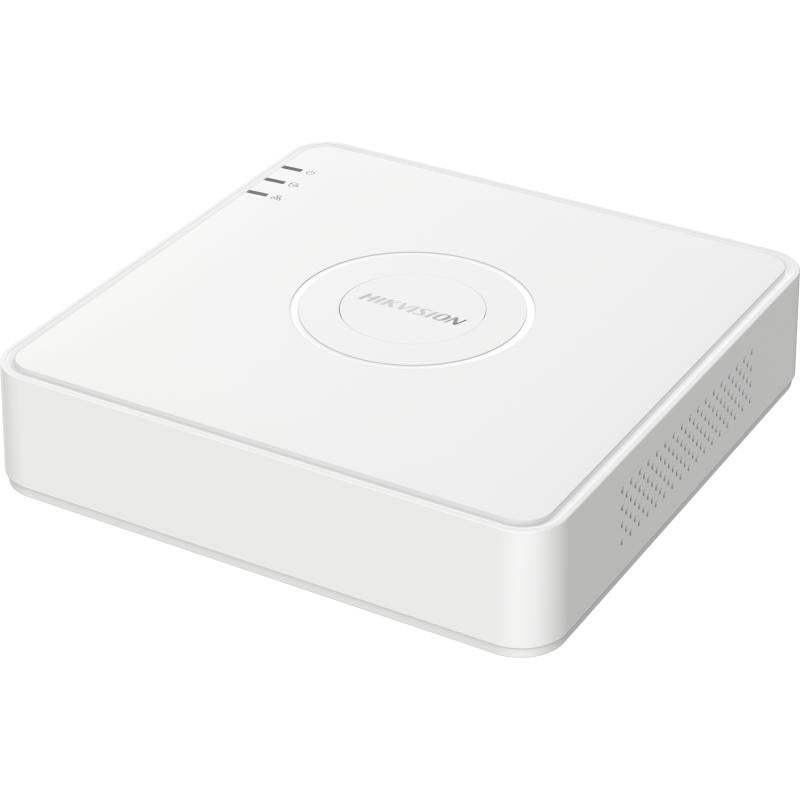

| Brand | HIKVISION |
| Range | CORE |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 4 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 1CH additional IP: Up to 5 IP channels (6Mpx), substituting all BNC channels Enhanced IP Mode: 2CH additional IPs: Up to 6 IP Channels (4Mpx), replacing all the BNC channels |
| Available bandwidth | 72 Mbps |
| Video outputs | 1 HDMI Full HD and 1 VGA, simultaneous; |
| Display resolution | HDMI: 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input |
| Audio Bit Rate | 64 Kbps |
| Audio compression | G.711u |
| Video compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP channels: H.265+ / H.265 / H.264+ / H.264 |
| Recording resolution | When 1080p Lite mode is not enabled: 3L Lite/ 5 MPx Lite/ 4Mpx Lite/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF When 1080p Lite mode is enabled: 3L Lite/ 5 MPx Lite/ 4Mpx Lite/ 1080p Lite/ 720p Lite/ VGA / WD1/ 4CIF/ CIF |
| Input resolution | HDTVI: 3K (20 fps), 5MPx (20 fps), 4 Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~60 fps) HDCVI: 5MPx (20 fps), 4 Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~60 fps) AHD: 5MPx (20 fps), 4 Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~60 fps) CVBS: PAL/NTSC |
| Main Stream coding | 1080P Lite not enabled: For the 3K stream: 3K Lite (12 fps), 4 MPx Lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (20 fps) For the 5 Mpx stream: 5 Mpx Lite (12 fps), 4 MPx Lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (20 fps) For the 4 Mpx stream: 4 Mpx lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (25 fps) (N) For the 1080p stream: 1080p/720p (15 fps), VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) For the 720p stream: 720p/VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) 1080P Lite enabled: 3K Lite/5 MPx Lite (12 fps), 4 Mpx lite (15 fps), 1080p lite/720p lite/VGA/WD1/4CIF/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream coding | WD1/4CIF (12 fps), CIF (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps at 6 Mbps |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | Does not have |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. Available on all analog channels. * Motion detection and AcuSense cannot be enabled at the same time on the same device. |
| Intelligent functions | AcuSense DeepLearning based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Inbound Region, Outbound Region, Outbound Region Available in 2 analog video channels. * Motion detection and AcuSense cannot be enabled at the same time on the same device. |
| Face Detection | Yes |
| Recording method | Manual, programmed, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal memory | 1 SATA HDD 3.5" of up to 10 TB (not included) |
| Communication | 2 x USB 2.0 (rear side) / 1 x RJ45 (Ethernet) |
| Remote connections | 32 |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power | DC 12 V, 1.5 A, ≤ 8 W (no HDD) |
| Operating temperature | -10° ~ +55° C |
| Dimensions / Weight | 45 (H) mm x 200 (W) mm x 200 (D) mm / ≤ 1 Kg (w/o HDD) |
| Colour | White |
