| Specifications |
| Model |

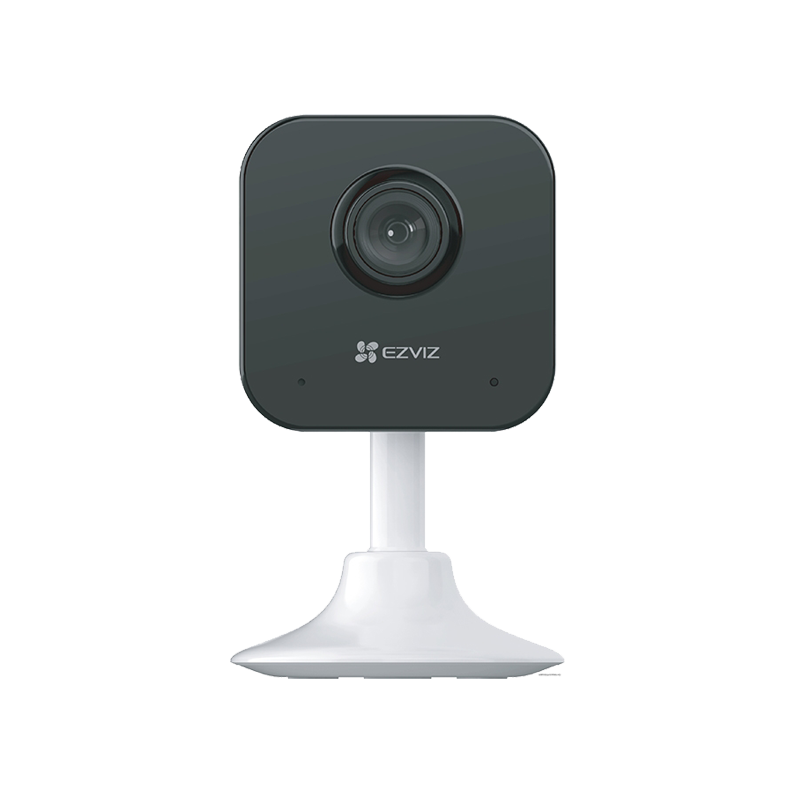

CS-H1c |
| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
2.8mm, view angle:108°(Diagonal), 91° (Horizontal), 50°(Vertical) |
| Minimum Illumination |
0.5 Lux @(F2.2, AGC ON), 0.1 Lux with IR |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto-switching |
| DNR |
3D DNR |
| IR Night Vision Distance |
Up to 32 ft / 10 m |
| Video & Audio |
| Max. Resolution |
1920 × 1080 |
| Frame Rate |
Max: 25 fps; Self-Adaptive during network transmission |
| Video Compression |
H.264 |
| H.264 Type |
Main Profile |
| Video Bit Rate |
HD; Standard. Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
1 Mbps |
| Function |
| Smart Alert |
Motion detection |
| Two-way Talk |
Supports |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Network |
| Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Storage |
| Local Storage |
Supports microSD card (Up to 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (subscription required) |
| General |
| Operating Conditions |
-10 ºC ~ 45 ºC (14 °F ~ 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply |
DC 5V / 1A |
| Power Consumption |
MAX. 3.0 W |
| Dimensions |
53.89 × 53.89 × 90.3 mm (2.12 × 2.12 × 3.56 inch) |
| Packaging Dimensions |
91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch) |
| Net Weight |
87 g (3.07 oz) |
| Weight (With Package) |
305 g (10.76 oz) |
| In the box |
| In the box |
H1c Camera ×1 |
| Power Adapter x1 |
| 2-Meter Power Cable x1 |
| Foam Sticker x2 |
| Metal Plate x1 |
| Regulatory Information x2 |
| Quick Start Guide x1 |
