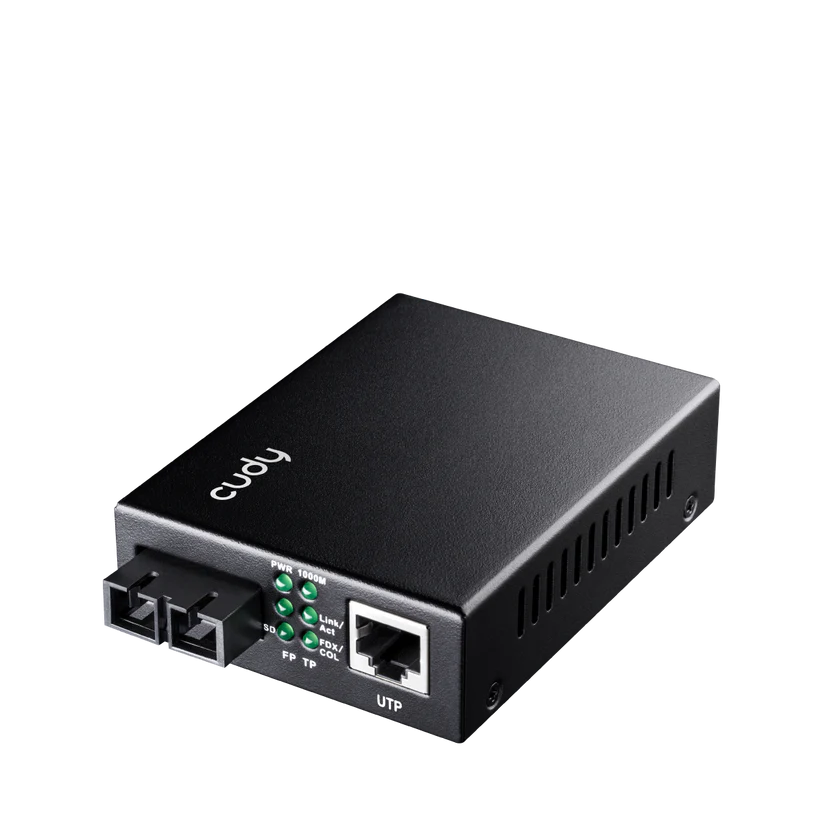

Cudy 10/100/1000M Gigabit PoE+ Media Converter

This combination does not exist.

BUY NOW

Description Specifications Reviews & Q/A

Description

Model Version	MC100GSA-20P
Interfaces	1.25G SC/UPC Slots	2
	Wavelength	TX/RX: 1310 nm
	Gigabit RJ45 Ports	1

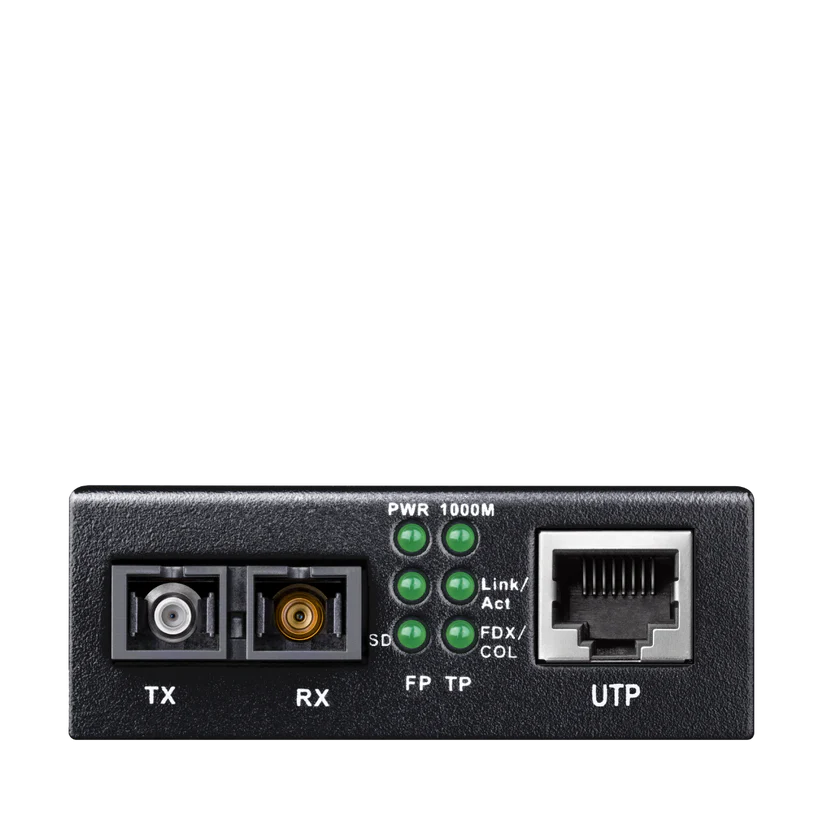

	LED	PWR: Power on/off 1000M/100M: RJ45 link speed TP ACT: RJ45 status Fiber ACT: Fiber slot status FDX: full-duplex status
	Power Input	DC Jack
Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit
	Optical Spec and Distance	Single-Mode: Up to 20 km
	Jumbo Frame	16 KB
Power	Power Methods	DC
	DC	5V⎓0.55A
	Power Adapter	Input: 100-240V~, 50/60Hz Output: 5V⎓0.55A
	Max Power Consumption	1.3W
	Idle Power Consumption	1W
Network	802.3 Protocols	802.3i 10BASE-T 802.3u 100BASE-T 802.3ab 1000BASE-T 802.3x Flow Control 802.3az Power Saving
	Troubleshooting	Far End Fault (FEF) Link Fault Pass Through (LFP)
Reliability	Environment	Operating Temperature: 0~50 ℃ (32~122 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
Mechanical	Dimension	70×94×26 mm 2.76×3.7×1.02 inches
	Product Weight	148.0 g (5.22 oz.)
	Casing Material	Metal
	Installation	Desktop Chassis

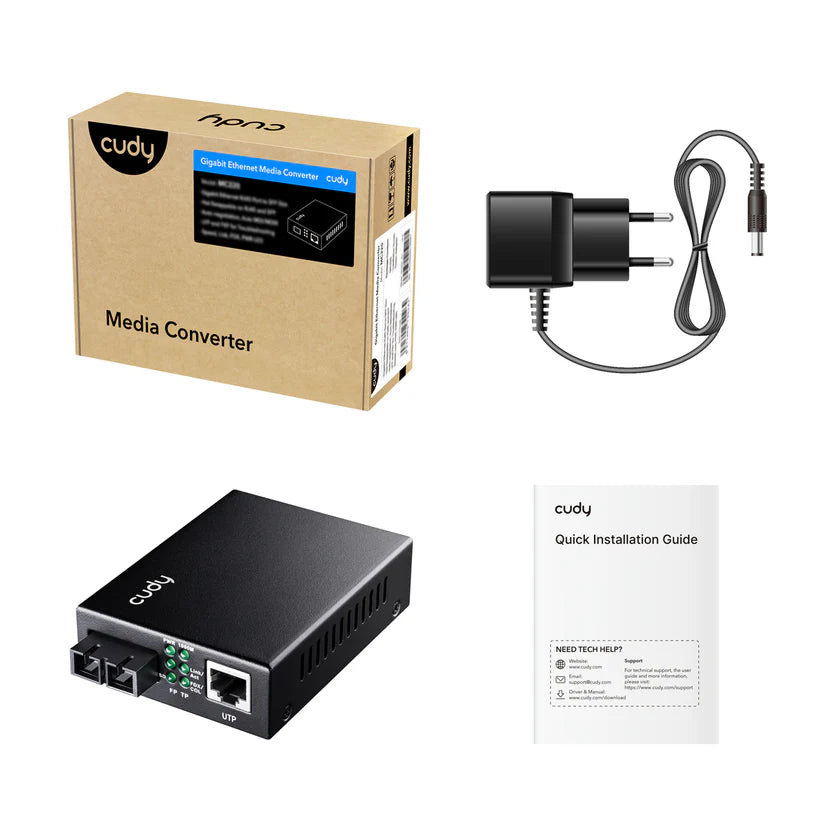

Package Content	MC100GSA-20P Installation Guide Power Adapter
