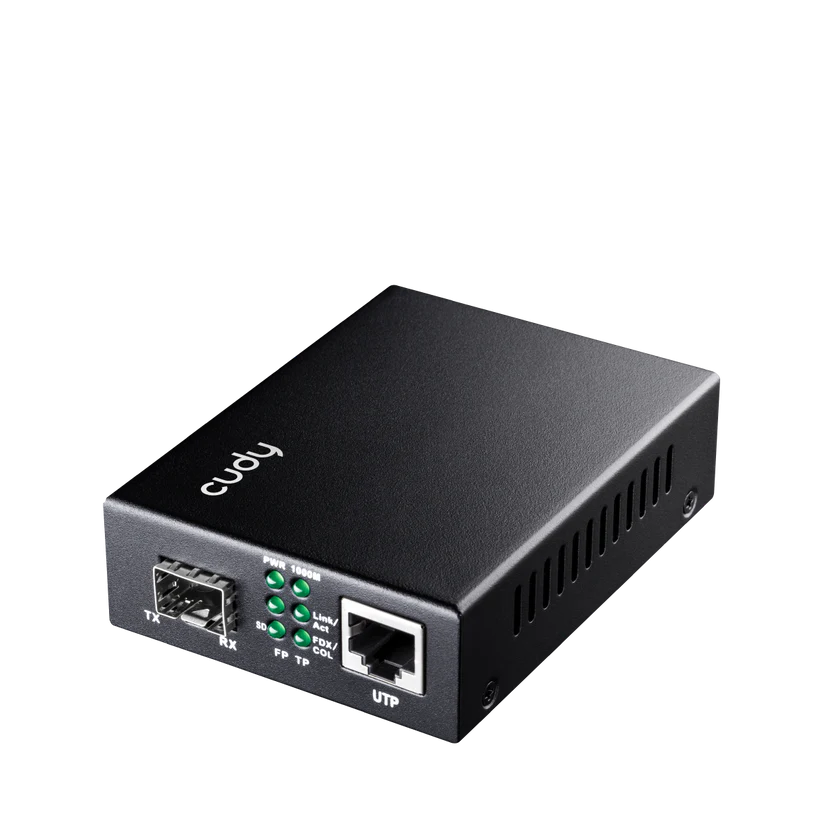

Cudy 10/100/1000M Gigabit PoE+ Media Converter

This combination does not exist.

BUY NOW

Description Specifications Reviews & Q/A

Description

Model Version
MC220P 2.0
Interfaces
1.25G SFP Slots	1
SFP Hot Swapping	True
Gigabit RJ45 PoE Ports	1
Max Power on a Single PoE Port	30W
PoE Port Notes	The PoE ports comply with IEEE 802.3at/af standards.

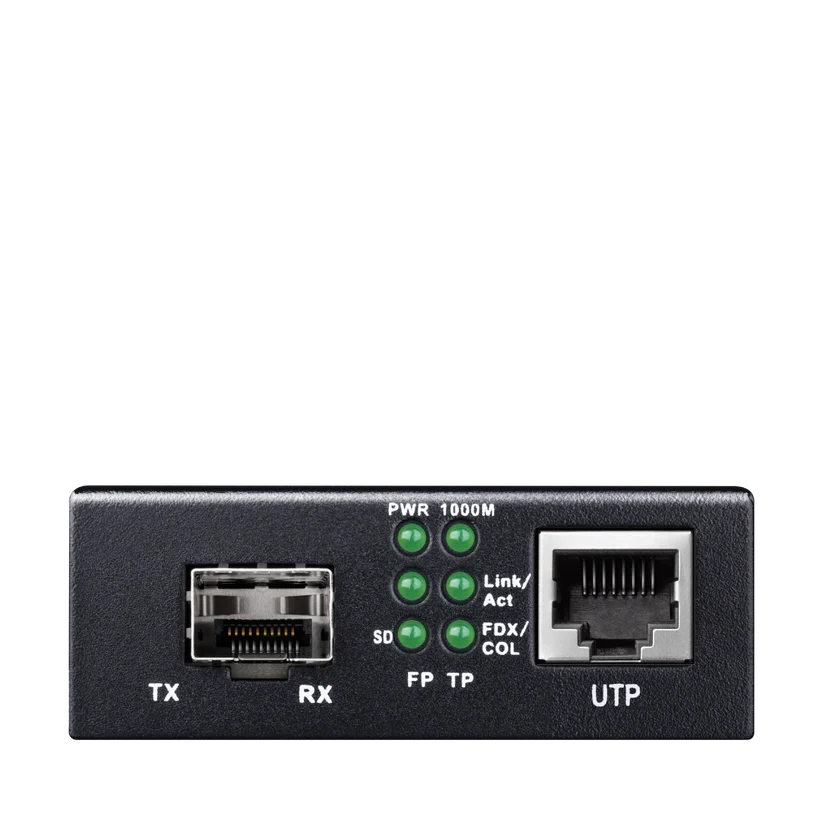

LED	PWR: Power on/off 1000M/100M: RJ45 link speed TP ACT: RJ45 status Fiber ACT: Fiber slot status PoE: PoE Status
Power Input	DC Jack
Performance
Copper Speed and Distance	Cat. 5e or higher cable: 100 meters at Gigabit
Optical Spec and Distance	Depends on the Installed Optical Module
Jumbo Frame	16 KB
Power
Power Methods	DC
DC	54V⎓0.66A
Power Adapter	Input: 100-240V~, 50/60Hz Output: 54V⎓0.66A
Power Supply	35W
Max Power Excluding PoE	2.3W (45°C / 113°F Ambient Temp.) 1W (20°C / 68°F Ambient Temp.)
Idle Power Consumption	0.5W
Network
802.3 Protocols	802.3at PoE 802.3af PoE 802.3i 10BASE-T 802.3u 100BASE-T 802.3ab 1000BASE-T 802.3x Flow Control 802.3az Power Saving
Troubleshooting	Far End Fault (FEF) Link Fault Pass Through (LFP)
Reliability
Environment	Operating Temperature: 0~50 ℃ (32~122 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
