  2. Cudy 8-Port Gigabit Desktop Switch

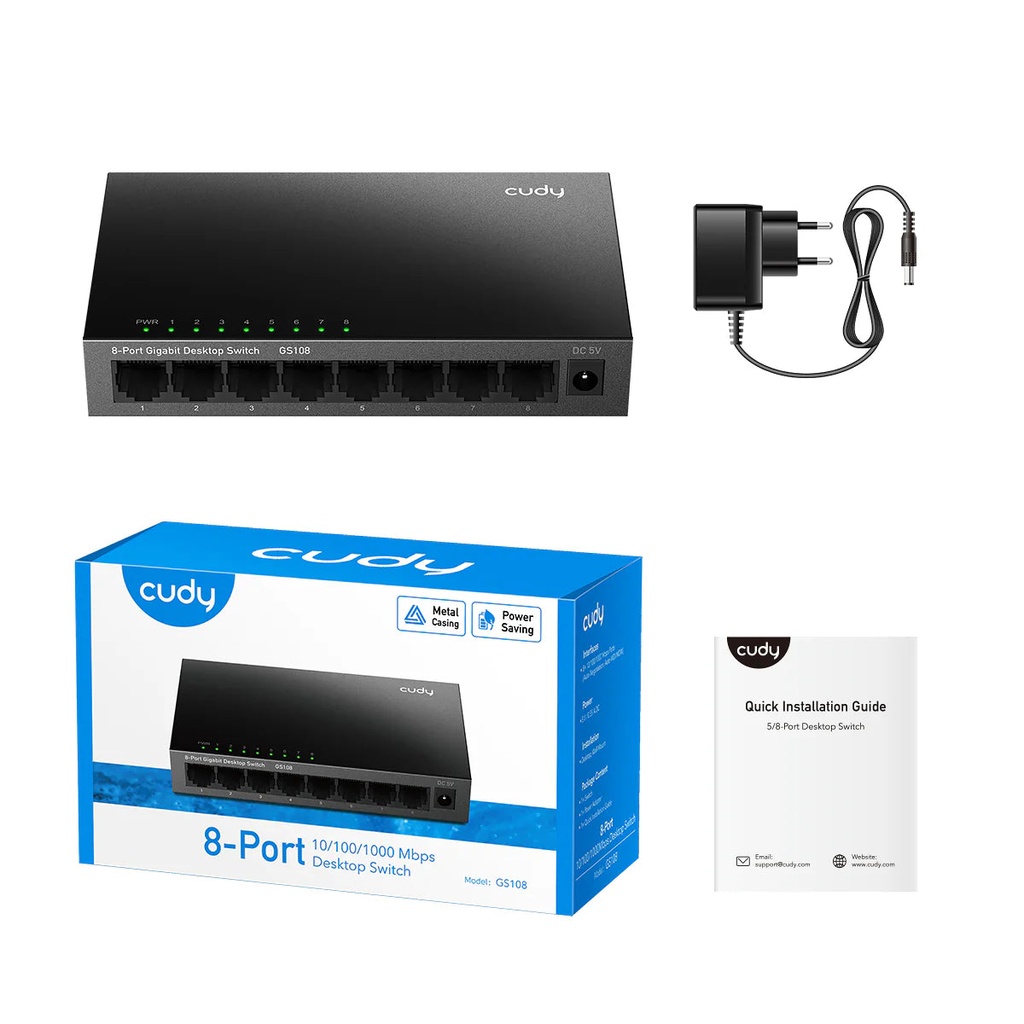

Cudy 8-Port Gigabit Desktop Switch

https://live-linkserve.odoo.com/web/image/product.template/63241/image_1920?unique=177e91b
(0 review)

400.00 MVR 400.0 MVR 400.00 MVR GST Included

370.37 MVR GST Included

Not Available For Sale

    This combination does not exist.

    ADD TO CART ADD TO QUOTE
    BUY NOW
    Contact Us

    Terms and Conditions

    Description

    Specifications

    Model VersionGS108D 4.0
    InterfacesGigabit RJ45 Ports8
    LED
    • Power
    • Speed/Link/Act of Each Ethernet Port
    Power InterfacesDC Jack
    PerformanceCopper Speed and Distance
    • Cat. 3 or higher cable: 100 meters at 10 Mbps
    • Cat. 5 or higher cable: 100 meters at 100 Mbps
    • Cat. 5e or higher cable: 170 meters at Gigabit
    MAC Address Table8192
    Max Switching Capacity16 Gbps
    Max Forwarding Rate11.904 Mpps
    Jumbo Frame15 KB
    Packet Buffer4 Mbit
    PowerBasic Power SavingTrue
    Power MethodsDC
    Power Input5V⎓0.55A
    Power Adapter in the BoxInput: 100-240V~, 50/60Hz
    Output: 5V⎓0.55A
    Max Power Consumption2.75W
    Idle Power Consumption2.2W
    Switching802.3 Protocols
    • 802.3x Flow Control
    • 802.3i 10BASE-T
    • 802.3u 100BASE-TX
    • 802.3ab 1000BASE-T
    L2 Features
    • IGMP Snooping
    • Loop Prevention
    ReliabilityEMSIEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
    IEC/EN 61000-4-5, Level 3 Surge: 2kV
    EnvironmentOperating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
    Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    Operating Humidity: 10% ~ 90% non-condensing
    Storage Humidity: 5% ~ 90% non-condensing
    MechanicalDimension138×61.5×24 mm
    5.43×2.42×0.94 inches
    Product Weight89 g (3.14 oz.)
    Casing MaterialPlastic
    Installation
    • Desktop
    • Wall-mount
    Package Content
    • GS108D
    • Power Adapter
    • Installation Guide
    Ordering InformationRetail Package Dimension
    • EU/US:
      151×75×63 mm
      5.94×2.95×2.48 inches
    • UK:
      151×75×81 mm
      5.94×2.95×3.19 inches
    Retail Package Weight
    • EU: 210 g (7.41 oz.)
    • UK: 239 g (8.43 oz.)
    • US: 195 g (6.88 oz.)
    Units per Carton
    • EU/US: 50
    • UK: 50
    Carton Net Weight
    • EU: 10.5 kg (23.15 lbs)
    • UK: 11.9 kg (26.23 lbs)
    • US: 9.8 kg (21.61 lbs)
    Carton Gross Weight
    • EU: 10.7 kg (23.59 lbs)
    • UK: 12.8 kg (28.22 lbs)
    • US: 10.4 kg (22.93 lbs)
    Carton Dimension
    • EU/US: 33×31.7×39.5 cm
      12.99×12.48×15.55 inches
    • UK: 43×32.5×40 cm
      16.93×12.8×15.75 inches
