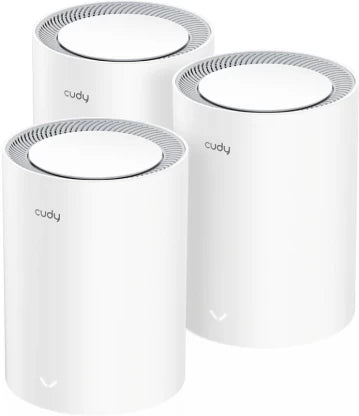

Cudy BE3600 Wi-Fi 7 Mesh Solution

https://live-linkserve.odoo.com/web/image/product.template/63238/image_1920?unique=bb41b4b
(0 review)

4,905.00 MVR 4905.0 MVR 4,905.00 MVR GST Included

4,541.67 MVR GST Included

Not Available For Sale

    This combination does not exist.

    ADD TO CART ADD TO QUOTE
    BUY NOW
    Contact Us

    Terms and Conditions

    Description

    Specifications

    Model VersionM3600 1.0
    CPUCPU Details2.0 GHz Quad-Core, ARM Cortex-A7
    Memory/StorageFlash/ROM128 MB (1 Gbit) NAND
    DDR/RAM512 MB (4 Gbit) DDR3L
    Wireless5 GHz Wi-Fi Speed2882 Mbps
    2.4 GHz Wi-Fi Speed688 Mbps
    5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    Wi-Fi Antennas4× Internal
    FEM or PA/LNA
    • 5 GHz: 2× External
    • 2.4 GHz: 2× Internal
    BeamformingTrue
    Range PerformanceMax: 220 m (722 ft)
    Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
    Wall PerformanceTwo wooden walls with thickness < 10 cm (4'')
    One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
    Indoor Coverage Reference2 Pack: 200 m² (2100 sq ft)
    3 Pack: 270 m² (2900 sq ft)
    Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
    InterfacesGigabit RJ45 Ports3
    Ethernet Notes1× WAN port, the rest are LAN ports
    LED
    • System
    • Speed/Link/ACT of Ethernet Port
    Physical Buttons
    • WPS Button
    • Reset Button
    Power InterfacesDC Jack
    PowerPower MethodsDC
    Power Input12V⎓1A
    Power Adapter in the BoxInput: 100-240V~, 50/60Hz
    Output: 12V⎓1A
    Max Power Consumption (W)9W
    ReliabilityEnvironment
    • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
    • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Humidity: 10% ~ 90% non-condensing
    • Storage Humidity: 5% ~ 95% non-condensing
    CertificationsFCC, CE
    MechanicalInstallationDesktop
    DimensionΦ110×154.5 mm
    Φ4.33×6.08 inches
    Product Weight357.6 g (12.61 oz.)
    Package Content
    • M3600
    • Power Adapter
    • Ethernet Cable
    • Installation Guide
    Ordering InformationRetail Package Weight
    • 2-Pack | EU: 1371.3 g (48.37 oz.)
    • 3-Pack | EU: 1847.5 g (65.17 oz.)
    • 1-Pack | EU: 731.3 g (25.8 oz.)
    Retail Package Dimension1-Pack:
    145×130×265 mm
    5.71×5.12×10.43 inches,2-Pack:
    330×130×265 mm
    12.99×5.12×10.43 inches,3-Pack:
    380×130×265 mm
    14.96×5.12×10.43 inches
    Units per Carton
    • 1-Pack: 16
    • 2-Pack: 8
    • 3-Pack: 4
    Carton Dimension
    • 1-Pack: 57×56×26 cm
      22.44×22.05×10.24 inches
    • 2-Pack: 55×54.5×35.3 cm
      21.65×21.46×13.9 inches
    • 3-Pack: 53.6×40×28.7 cm
      21.1×15.75×11.3 inches
    Carton Gross Weight
    • 2-Pack | EU: 12.3 kg (27.12 lbs)
    • 3-Pack | EU: 8.3 kg (18.3 lbs)
    • 1-Pack | EU: 13.0 kg (28.66 lbs)
    Carton Net Weight
    • 2-Pack | EU: 11.0 kg (24.25 lbs)
    • 3-Pack | EU: 7.4 kg (16.31 lbs)
    • 1-Pack | EU: 11.7 kg (25.79 lbs)
