Specifications
| Category | Specification | Details |

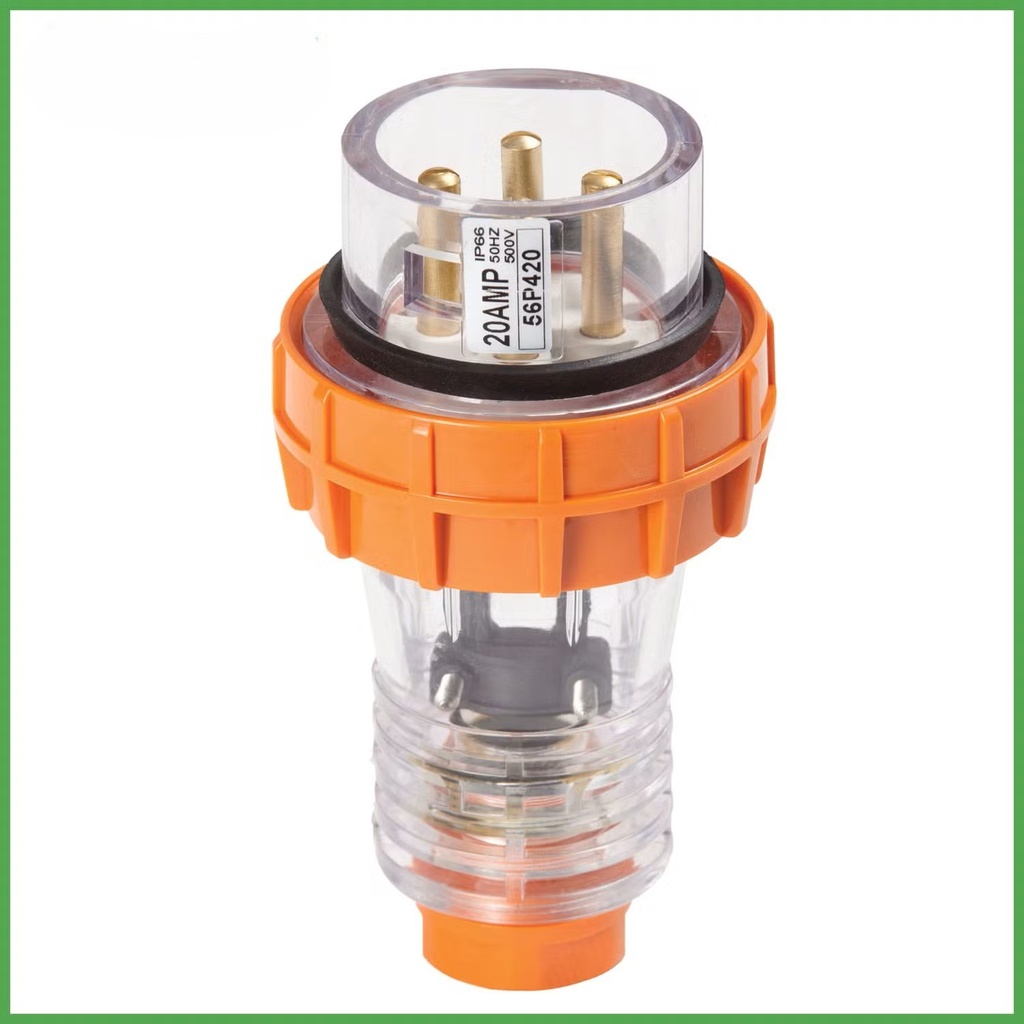

| General | Brand | MEANRAY |
| Model Number | 56P420 | |
| Product Type | Straight Industrial Plug (Male) | |
| Standard | 56 Series (Compatible with Clipsal/Schneider standards) | |
| Electrical | Current Rating | 20A |
| Voltage Rating | 500V AC (50Hz) | |
| Pin Configuration | 4 Round Pins (3P + E) | |
| Phase | 3-Phase | |
| Mechanical | Housing Material | Impact-resistant Polycarbonate (PC) |
| Conductor Material | High-conductivity Copper/Brass | |
| Termination | Screw Terminals (1.5mm² to 6mm² wire capacity) | |
| Thread Type | M25 (25mm) | |
| Protection | IP Rating | IP66 (Dust-tight & protected against powerful water jets) |
| Temperature Range | -25°C to +75°C | |
| Resistance | UV Stabilized & Chemical Resistant | |
| Physical | Color | Industrial Orange (Typical) |
| Dimensions | Approx. 167mm (L) x 78mm (W) | |
| Weight | Approx. 0.36 kg |
