Specifications
Specifications
Standard Features
| • Print methods: Thermal Transfer or Direct Thermal • ZPL and EPL programming languages • Single LED status indicator • Single button for feed/pause • USB connectivity • OpenACCESS™ for easy media loading • Dual-wall frame construction • ENERGY STAR qualified • ZebraDesigner Essentials - easy label design tool free at www.zebra.com/zebradesigner |
Physical Characteristics
| Dimensions |

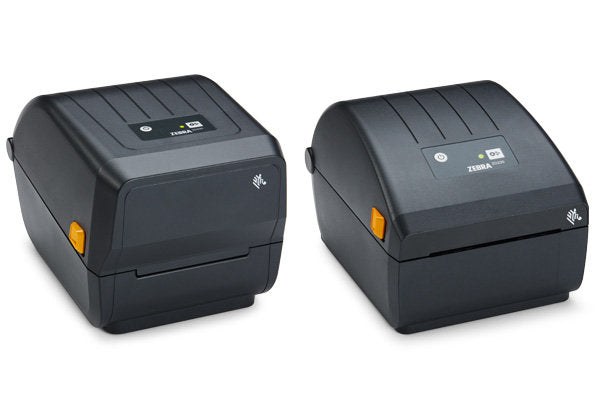

Thermal Transfer: 10.5 in. L x 7.75 in. W x 7.5 in. H 267 mm L x 197 mm W x 191 mm H Direct Thermal: 8.6 in. L x 6.9 in. W x 5.9 in. H 220 mm L x 176 mm W x 151 mm H |
| Weight |
Thermal Transfer: 3.7 lbs./1.7 kg Direct Thermal: 2.5 lbs./1.1 kg |
Printer Specifications
| Resolution | 203 dpi/8 dots per mm |
| Memory | 128 MB Flash; 128 MB SDRAM |
| Maximum Print Width | 4.09 in./104 mm |
| Programmable Print Speed | 6 in./152 mm per second or 4 in./102 mm per second |
| Media Sensors | Movable black mark sensor, limited range from center to left side Fixed off-center gap sensor |
| Firmware | ZPL II; EPL 2; XML |
Media and Ribbon Characteristics
| Maximum Label Length | 39.0 in./991 mm |
| Media Width | 1.00 in./25.4 mm to 4.4 in./112 mm |
| Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) using optional adapters |
| Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Maximum Ribbon Length | 984 ft. (300 m) |
| Ribbon Ratio |
|
| Ribbon Width | 1.33 in./33.8 mm - 4.3 in./109.2 mm |
| Ribbon Core I.D. |
|
Operating Characteristics
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. |
-40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified |
Â
Operating System
| Link-OS® Basic printer operating system |
Print DNA Software
| Â | This printer is supported by a core set of Print DNAÂ Basic applications and capabilities. |
| Zebra Setup Utilities | Enhances out-of-the-box experience by enabling quick and easy printer configuration |
| ZebraDesigner Essentials |
Makes designing and printing industry-standard and compliant labels simple, including fixed or variable data |
| Emulations | On-printer apps allow Zebra printers to use legacy languages normally associated with other printer brands |
| Â |
For more information, please visit |
Â
Options and Accessories
| Media Handling | Factory installed peeler or cutter |
| Communications |
|
| Real Time Clock | None |
Fonts/Graphics/Symbologies
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts Two resident scalable ZPL fonts Five resident expandable EPL2 fonts Native open-type font support Unicode compliant for multi-language, on demand thermal printing 50 MB user available non-volatile memory 8 MB user available SDRAM |
Printer Supplies
| For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer. |
Regulatory
| IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
