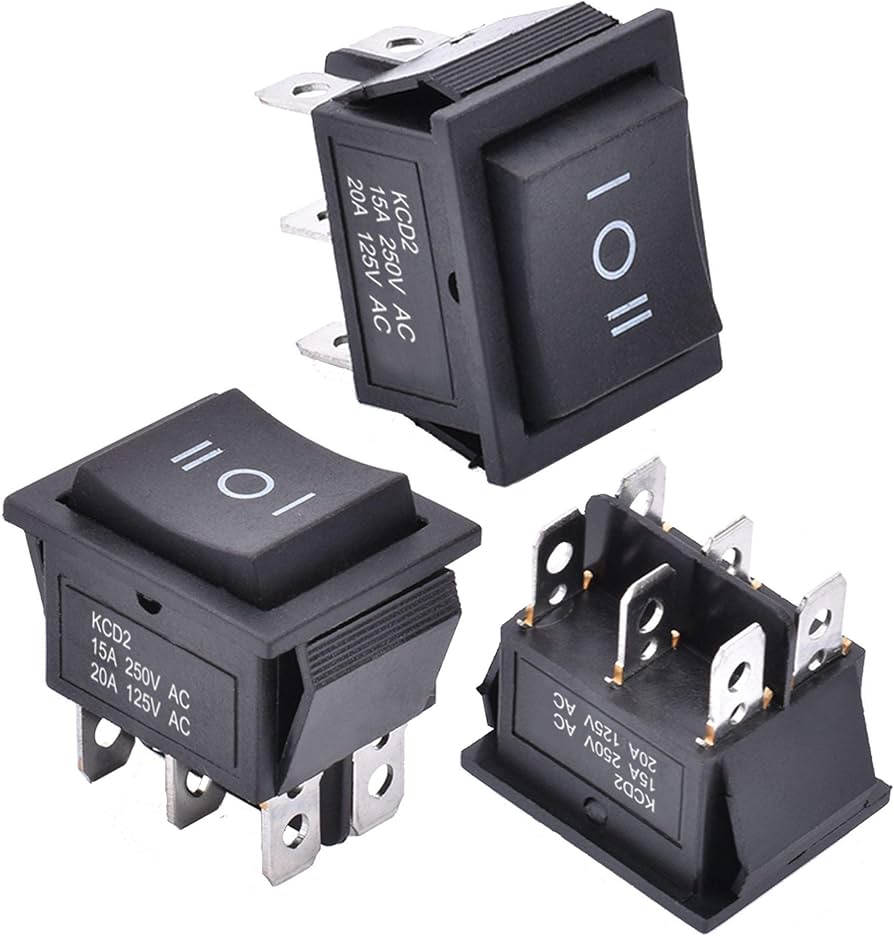

KCD2-203 Three Position Rocker Switch
Daier KCD2-203 on off on rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
High quality Three Position Rocker Switch from leading manufacturer Daier
KCD2-203 Three Position Rocker Switch related products,pls check the detailed information as below
| KCD2-203 | It is 6P,ON-OFF ON rocker switch without lamp |
| KCD2-213 | It is 6P,ON-OFF-momentary ON rocker switch without lamp |
| KCD2-223 | It is 6P,Momentary ON-OFF-momentary ON rocker switch without lamp |
KCD2-203 Three Position Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button color: | Black and red and white color,transparent color is avaliable |
| Rating: | 20A 125VAC/15A 250VAC | Housing color: | Standard black,white is avaliable |
| Contact Configuration: | DPDT | Switch Operation: | ON-OFF-ON |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, TUV, SGS | OEM or ODM: | Available |
