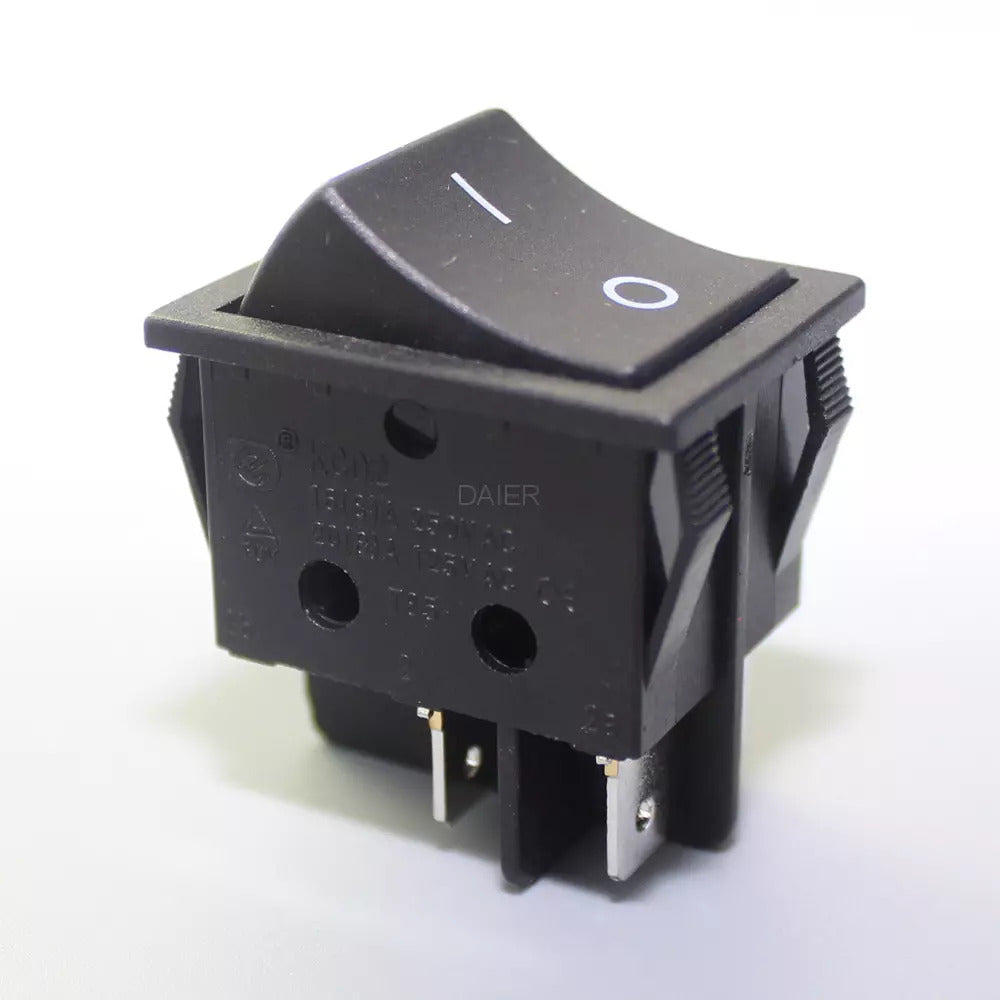

KCD2-2-201 Carling Rocker Switch
Daier KCD2-2-201 switch rocker switch provides high switching current in a compact design.
It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
KCD2-2-201 Carling Rocker Switch related product,pls check the detailed information as below
| KCD2-2-201 | It is 4P,ON-OFF rocker switch without lamp |
| KCD2-2-211 | It is 4P,OFF-momentary ON rocker switch without lamp |
KCD2-2-201 Carling Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button color: | Standard black and red,transparent color is avaliable |
| Rating: | 20A 125VAC/15A 250VAC | Housing color: | Standard black,white is avaliable |
| Contact Configuration: | DPST | Switch Operation: | ON-OFF |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, TUV, SGS | OEM or ODM: | Available |
