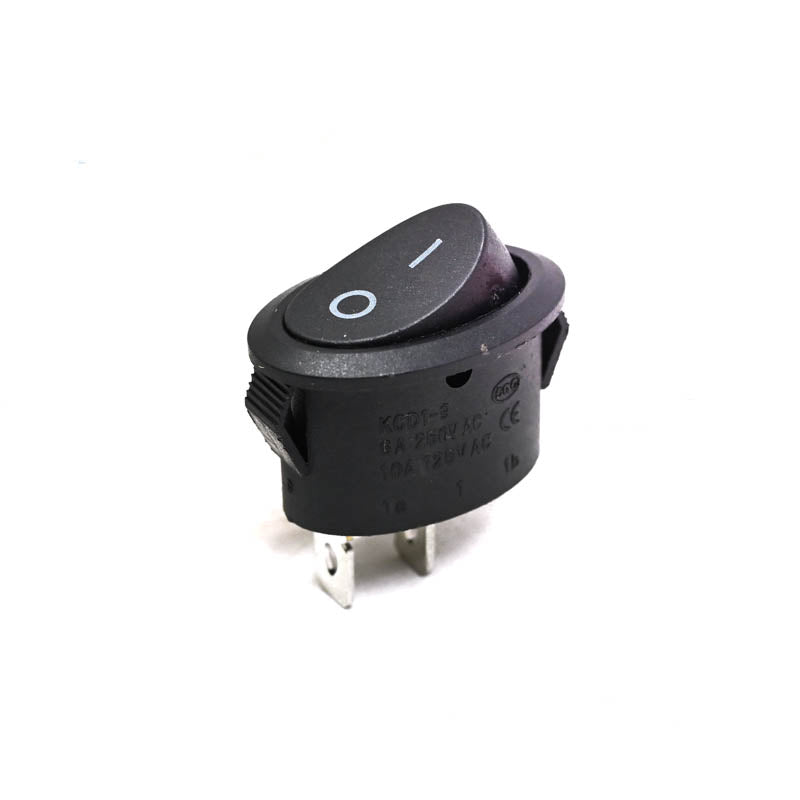

KCD1-9-101 Rocker Switch Hy12
Daier KCD1-9-101 on off miniature rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
KCD1-9-101 Rocker Switch Hy12 datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal | Brass with sliver plated | Button color: | Black and red and transparent color |
| Rating: | 10A 125VAC/6A 250VAC | Housing color: | Standard black |
| Contact Configuration: | SPST | Switch Operation: | ON-OFF |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
