KCD1-8-101NW 12V Waterproof Rocker Switch Features
- Durable & Weatherproof Construction
Manufactured with high-quality nylon 66 and sealed to IP65 standards, this rocker switch guarantees reliable performance in demanding environments, withstanding dust, moisture, and vibration.
- Clear Visual Indication
Available with blue, red, or green illumination and clear “O I” markings, this switch provides easy identification of operational status, even in low-light conditions.
- Reliable 20A Switching Capacity
Rated for 20A at 12VDC and utilizing a robust SPST (single pole single throw) design with three pins, this switch ensures reliable performance for various applications.
- Simplified Snap-In Installation
Featuring a standard 0.787-inch (20mm) mounting hole and a user-friendly snap-in design, this switch enables quick and easy installation, minimizing downtime.
- Versatile Application Suitability
This IP65 rated rocker switch is ideal for a wide range of applications, including automotive, marine, industrial equipment, and demanding consumer products.

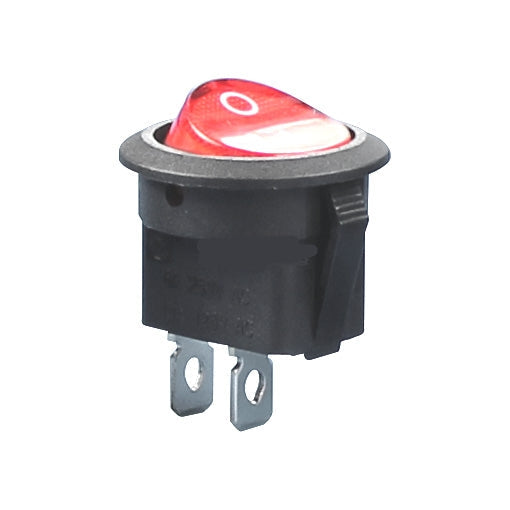

Daier KCD1-8-101NW miniature waterproof lighted rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Daier 12 volt waterproof panel mount switch, our most waterproof switch can be immersed in water briefly, LED lighting and non-lighting switches.
KCD1-8-101NW 12V Waterproof Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal | Brass with sliver plated | Button color: | Red ,green,yellow and blue |
| Rating: | 10A 125VAC/6A 250VAC | Housing color: | Standard black |
| Lamp: | 220VAC/12V/24V | Switch Operation: | SPST,ON-OFF |
| Waterproof Grade: | IP65 | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
