Description
Specifications
| Specification | Details |
|---|

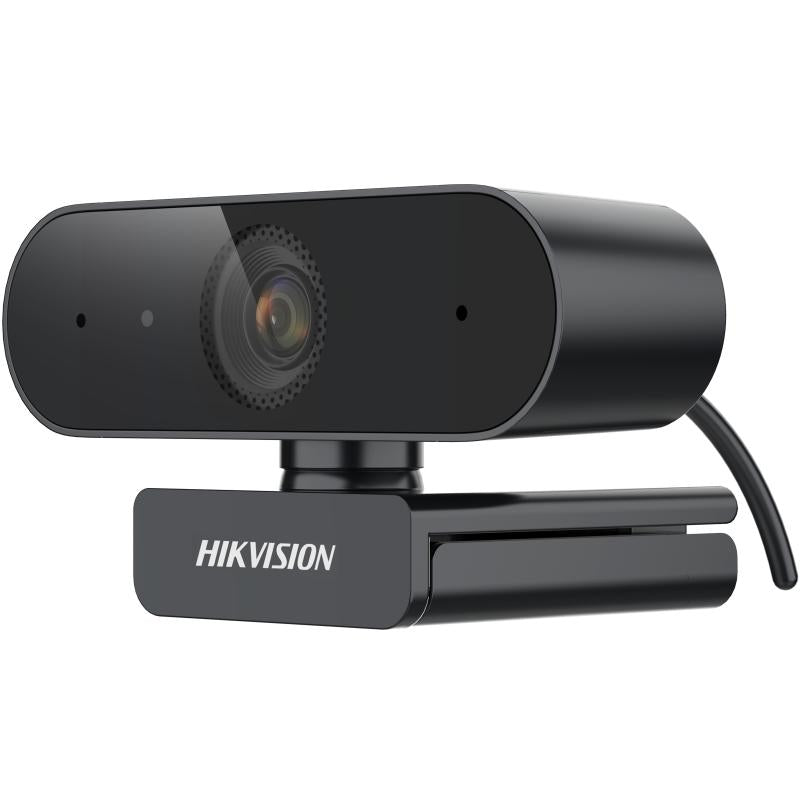

| Model | DS‑U02P |
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 1920 × 1080 (Full HD) |
| Min. Illumination | 0.1 Lux @ (F1.2, AGC ON) |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | Pan: 360°; Tilt: -15° to 15°; Rotation: 0° |
| Lens Type | 3.6 mm fixed focal lens |
| Focal Length & FOV | Horizontal FOV: ~80°; Vertical FOV: ~50°; Diagonal FOV: ~88° |
| Lens Mount | M8 |
| Object Distance Range | 10 cm to ∞ |
| Frame Rates (USB Output) | MJPG: 1920×1080 @ 30/25 fps, 1280×960 @ 30/25 fps, 1280×720 @ 30/25 fps, 640×480 @ 30/25 fps, 640×360 @ 30/25 fps YUV: 1920×1080 @ 5 fps, 1280×960 @ 5 fps, 1280×720 @ 5 fps, 640×480 @ 30 fps, 640×360 @ 30 fps |
| Audio | Built‑in microphone |
| Audio Sampling Rate | 16 kHz |
| Video Output Interface | USB 2.0 (Type‑A plug and play) |
| Operating Conditions | -10 °C to 45 °C; Humidity ≤ 90% (non‑condensing) |
| Power Supply | DC 5 V ± 5% (USB), Max. 1.6 W |
| Material | Plastic |
| Dimensions (W × H × D) | 80.16 mm × 48.6 mm × 42.18 mm (3.16″ × 1.91″ × 1.66″) |
| Weight | Approx. 93 g (0.2 lb) |
| Cable Length | 1.5 m |
| Recommended System Requirements | Windows 7/8/10/11; Android 8.1+; Linux 4.14+; macOS 10.12+; Chrome OS |
| Packing List | Camera × 1, Quick Start Guide × 1 |
