Technical Specifications

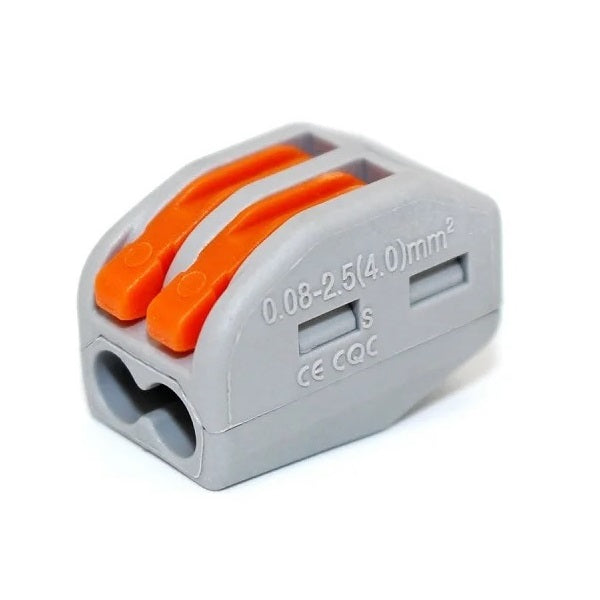

- Model: PCT-212 (2-way/2-port)
- Rated Voltage: 400V (some variants listed at 250V or 450V)
- Rated Current: 32A
- Rated Power: Approx. 7KW
- Rated Impulse Voltage: 4kV
- Wire Compatibility (Solid/Hard): 0.08–2.5mm² / 28–12 AWG
- Wire Compatibility (Stranded/Flexible): 0.08–4mm² / 28–12 AWG
- Strip Length: 9–11mm / 0.37–0.43 in
- Operating Temperature: -40°C to +105°C
Physical & Material Specs
- Dimensions: Approx. 21mm x 13mm x 14.5mm (LWT)
- Material (Housing): Flame-retardant Nylon PA66 or Polycarbonate
- Material (Conductor): Tin-plated Copper/Brass
- Colour: Gray and Orange
- Weight: ~3.2g
Key Features
- Tool-Free Operation: Lever-nut design allows for simple "plug and play" installation.
- Reusable: Can be opened and reused multiple times.
- Safety: Built-in test points for voltage testing without removing tape.
- Versatile: Can connect different wire types and gauges together.
