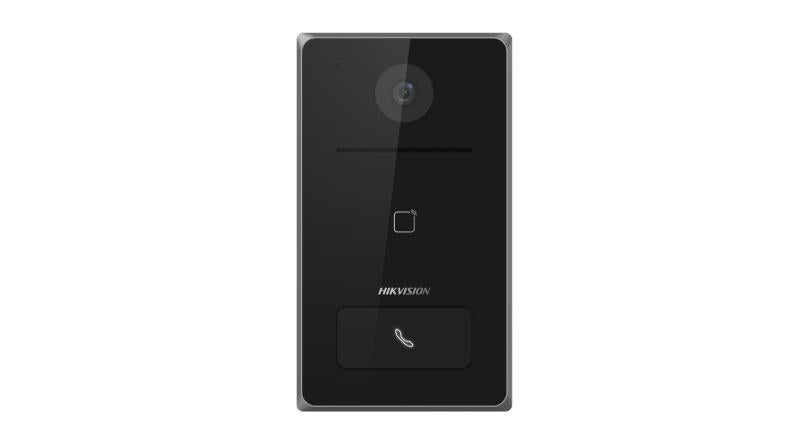

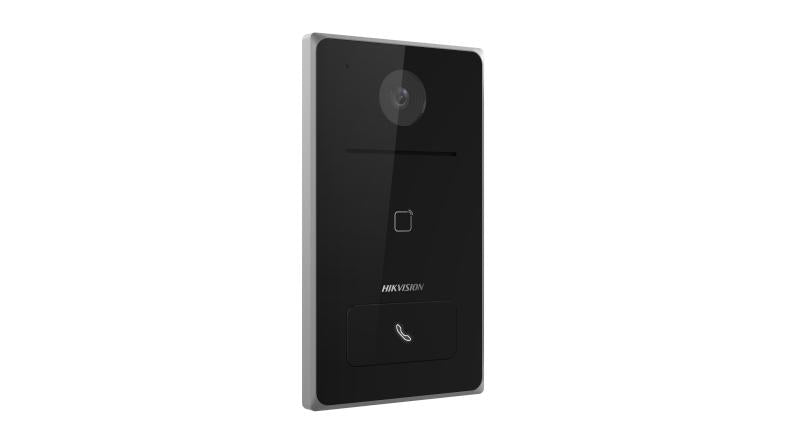

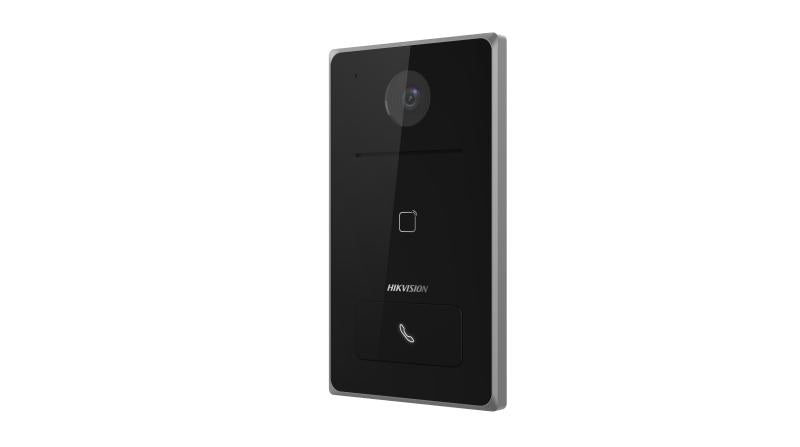

![[85829] Hikvision 2MP Villa Door Station With Built-In Card Reader Module Image](/web/image/product.image/6023/image_1024/%5B85829%5D%20Hikvision%202MP%20Villa%20Door%20Station%20With%20Built-In%20Card%20Reader%20Module%20Image%20?unique=17c8dd3)
![[85829] Hikvision 2MP Villa Door Station With Built-In Card Reader Module Image](/web/image/product.image/6024/image_1024/%5B85829%5D%20Hikvision%202MP%20Villa%20Door%20Station%20With%20Built-In%20Card%20Reader%20Module%20Image%20?unique=17c8dd3)
![[85829] Hikvision 2MP Villa Door Station With Built-In Card Reader Module Image](/web/image/product.image/6023/image_128/%5B85829%5D%20Hikvision%202MP%20Villa%20Door%20Station%20With%20Built-In%20Card%20Reader%20Module%20Image%20?unique=17c8dd3)
![[85829] Hikvision 2MP Villa Door Station With Built-In Card Reader Module Image](/web/image/product.image/6024/image_128/%5B85829%5D%20Hikvision%202MP%20Villa%20Door%20Station%20With%20Built-In%20Card%20Reader%20Module%20Image%20?unique=17c8dd3)
Description
Specifications
| Specification | Details |
|---|
| Model | DS‑KV6133‑WME1 |
| System Parameters |
| Operating System | Linux |
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embedded high performance processor |
| Video Parameters |
| Camera | 2 MP CMOS wide‑angle with IR |
| Resolution | Main: 1920 × 1080p / 1280 × 720p Sub: 1280 × 720p / 640 × 480p |
| Field of View (FOV) | Horizontal: 129° Vertical: 75° |
| Wide Dynamic Range (WDR) | Support 120 dB |
| Supplement Light | IR light, up to 2.5 m |
| Video Compression | H.264, H.265, MJPEG |
| Audio Parameters |
| Audio Input | 1 built‑in omnidirectional microphone |
| Audio Output | 1 built‑in loudspeaker |
| Audio Compression Standards | G.711U, G.711A, Opus, AAC‑LD, AAC‑LC, G.726, G.722.1 |
| Audio Bitrate | 16 / 32 / 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation; adjustable volume |
| Capacity |
| User Capacity | Up to 2000 users |
| Card Capacity | Up to 10000 cards |
| Network Parameters |
| Network Protocols | TCP/IP, RSTP, IPv6, ONVIF |
| Wi‑Fi | 2.4 GHz (IEEE802.11b/g/n) |
| Device Interfaces |
| Alarm Input | 4 inputs |
| Network Interface | 1 × RJ‑45, 10/100 Mbps self‑adaptive |
| Tamper | 1 |
| Exit Button | 1 |
| RS‑485 | 1 |
| TF Card | 1 (Reserved) |
| Lock Control | 1 relay (Max. 30 VDC 2 A) |
| Door Contact Input | 1 |
| External Audio Output | 1 (reserved) |
| General |
| Physical Button | 1 |
| Installation | Surface mounting, flush mounting |
| LED Indicators | 2 |
| Protective Level | IP65 |
| Working Temperature | -40 °C to 53 °C (-40 °F to 127.4 °F) |
| Working Humidity | 10% to 95% (no‑condensing) |
| Dimensions (W × H × D) | 181.6 mm × 103.6 mm × 29.5 mm (7.1" × 4.0" × 1.1") |
| Net Weight | 0.190 kg |
| Gross Weight | 0.414 kg |
| Power Consumption | < 10 W |
| Power Supply | 12 VDC, 1.5 A; IEEE802.3af Standard PoE |
| Application Environment | Outdoor |
| Supported Languages | English, Arabic, European French, Russian, European & Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan) |
