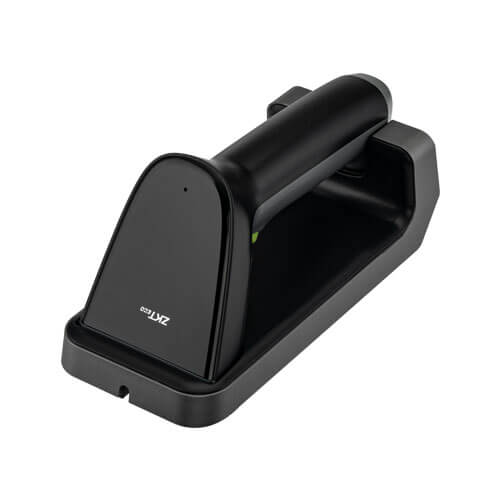

ZKTECO 2.4G 2000mAh Handheld Barcode Scanner

Specifications

· Quickly read all common 1D barcodes with a press of scan trigger.

· Enhanced wireless 2.4G transmission technology, support wired or wireless communication at same time.

· Operate in synchronous mode, support data transmission in real-time; support storage mode and the storage capacity is greater than 20,000 barcodes.

· Magnetic charging base with better charging connection, more convenient to use.

• Physical Parameters



• Dimensions (L*W*H)

  167.3 * 70.5 * 81.5 (mm)

• Weight

  430g

• Voltage & Current

  5 VDC Operating: 90 mA(Standby: 30mA)

• Color

  Black and Gray (White, optional)

• Support Host Interface

  2.4G (2.4G+Bluetooth ,optional)

• User Indicators

  Decode LED Indicator; Beeper(adjustable tone and volume)

• Performance Parameters



• Scan Mode

  Manual Reading Mode

• Light Source

  620nm laser diode

• Scan Speed

  300 scans/second Max

• Minimum Print Contrast

  25%

• Roll Tolerance

  ±30°

• Pitch Tolerance

  ±60°

• Skew Tolerance

  ±60°

• Decode Capability

  1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, ISBT 128, Code 39, Code 93, Code 11,Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7)

• Wireless Connectivity



• Radio Range

  2.4G: 60m (Bluetooth: 15m)

• Wireless Communication Mode

  Synchronous Mode; Storage Mode (Storage Capacity: 20,000)

• Battery Type

  18650 Li-ion Battery

• Battery Capacity

  2000 mAh

• Operating Time Per Full Charge

  ≥15 Hours

• Standby Time Per Full Charge

  ≥10 Weeks

• Charge Time(from Empty)/Standard USB

  5 Hours

• Environmental Parameters



• Operating Temperature

  -20°C to 50°C

• Storage Temperature

  -40°C to 70°C

• Humidity

  5% to 95% relative humidity, non-condensing

• Electrostatic Discharge (ESD)

  ±2KV Direct; ±8KV Air

• Ambient Light Immunity

  5000 Lux Max

• Decode Ranges



• Symbology / Resolution

  Near / Far

• Code 39: 4 mil

  3 cm to 10 cm

• Code 39: 5 mil

  3 cm to 13 cm

• Code 39: 13 mil

  4 cm to 30 cm

• Code 39: 20 mil

  6 cm to 40 cm

• EAN-13: 13 mil

  EAN-13: 13 mil

• UPC-A: 13 mil

  3 cm to 30 cm
