Specifications
Key Specifications

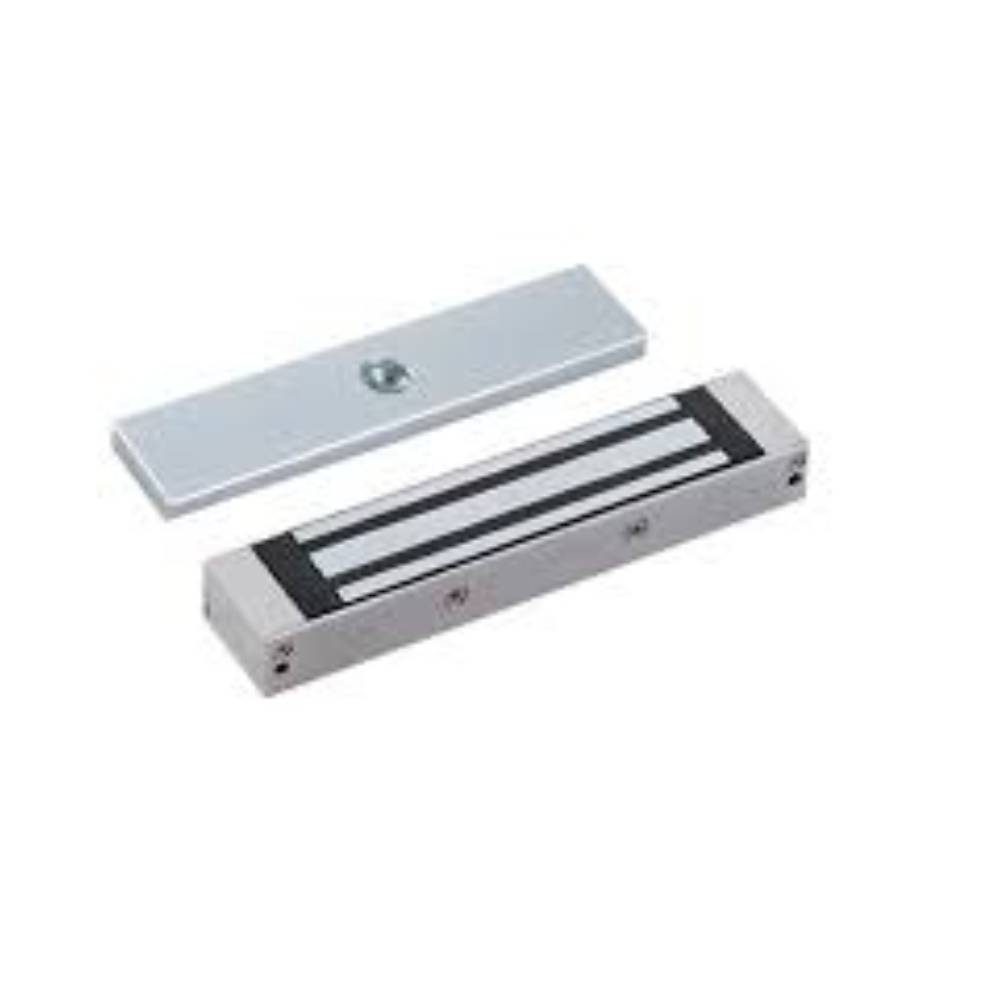

- Model Name: SL-180.
- Holding Force: 150kg (300lbs).
- Voltage: DC12V or DC24V (adjustable/dual).
- Current: Approx. 360mA @ 12V, 180mA @ 24V (may vary slightly).
- Security Type: Fail-Safe (unlocks when power is cut).
- Dimensions (Body): Approx. 165mm(L) x 36mm(W) x 21mm(D).
- Dimensions (Armature): Approx. 140mm(L) x 33mm(W) x 11mm(D).
- Weight: Approx. 1150g (1.15kg).
- Features: Anti-residual magnetism, LED indicator (on some models), lock status sensor (N.C./N.O. on some), CE Certified.
- Applications: Wooden doors, glass doors, metal doors, fire exits, access control systems.
