Specifications
| Specification | Details |
|---|

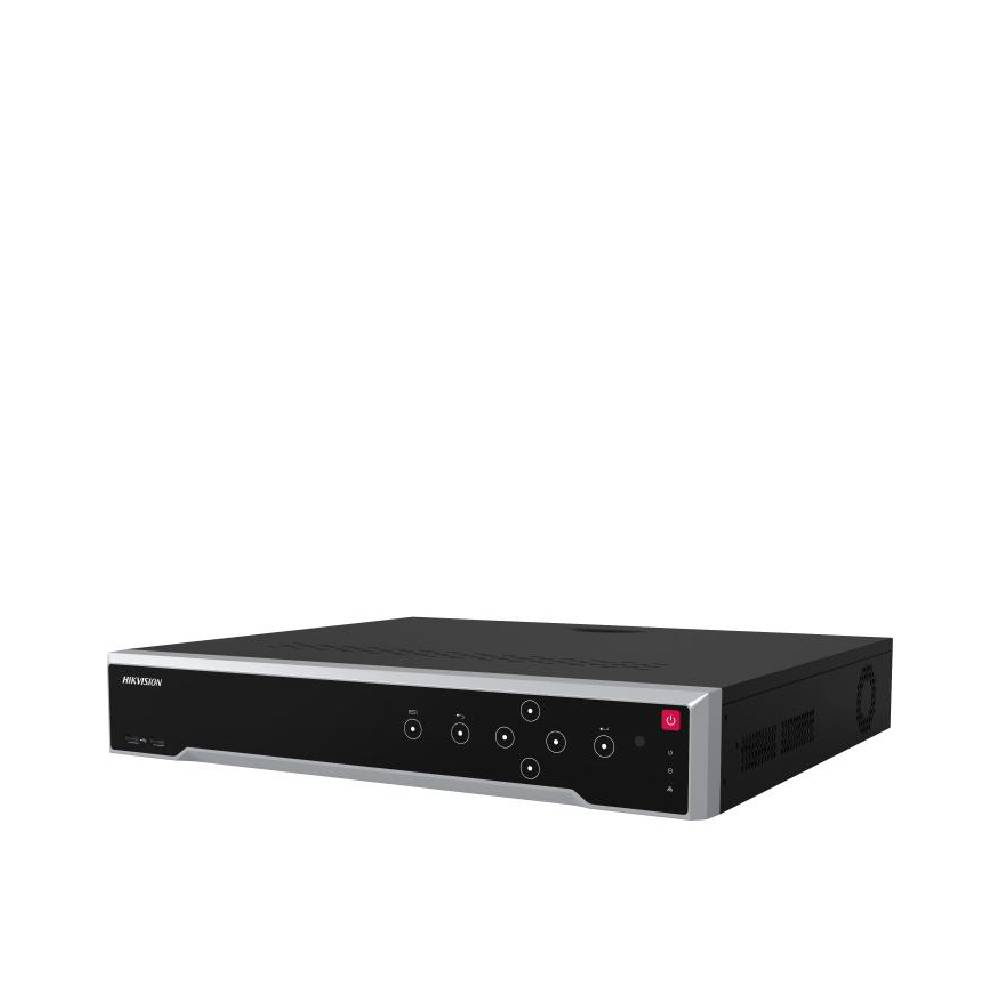

| Model | DS-7732NI-M4/24P |
| Product Type | Network Video Recorder (NVR) |
| Series | M Series |
| IP Video Input | Up to 32 channels |
| PoE Ports | 24 × Gigabit PoE ports |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Budget | Up to 360 W |
| Incoming Bandwidth | Up to 256 Mbps |
| Outgoing Bandwidth | Up to 160 Mbps |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Recording Resolution | Up to 12 MP |
| HDMI Output | 2 × HDMI (HDMI1 up to 4K 3840 × 2160 @30 Hz, HDMI2 up to 1920 × 1080) |
| VGA Output | 1 × VGA, up to 1920 × 1080 |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Two-Way Audio | Supported |
| Network Interface | 1 × RJ-45 10/100/1000 Mbps |
| SATA Interface | 4 × SATA |
| HDD Capacity | Up to 14 TB per HDD |
| USB Interface | 2 × USB 2.0 (front), 1 × USB 3.0 (rear) |
| Alarm Input | 16 |
| Alarm Output | 4 |
| Playback | Up to 16 channels simultaneous playback |
| Smart Functions | Motion Detection 2.0 (human and vehicle targets) |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, ONVIF |
| Remote Access | Web, Client Software, Mobile App |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | ≤ 30 W (without HDD and PoE) |
| Operating Temperature | −10 °C to 55 °C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Dimensions (W × D × H) | 445 × 400 × 75 mm |
| Net Weight | ≤ 6 kg (without HDD) |
| Installation | Rack mount or desktop |
