Description
Specifications

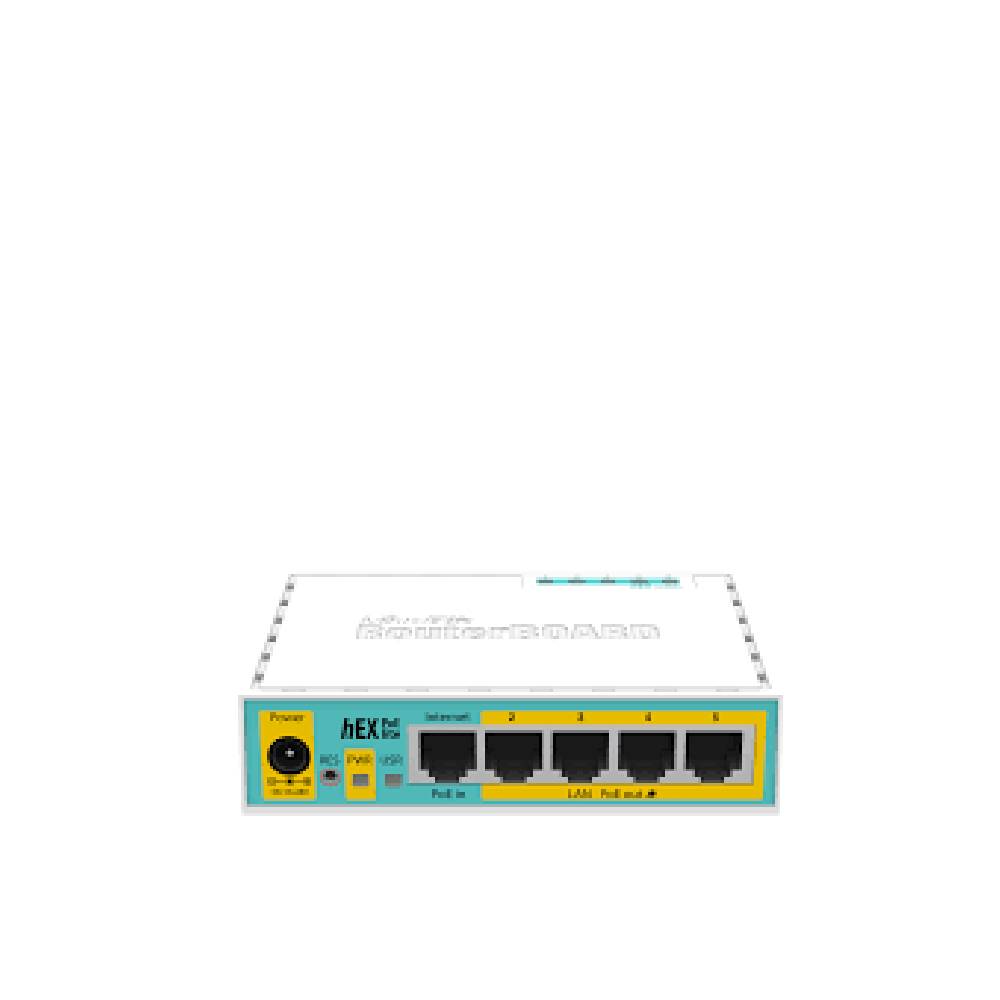

- Product code RB750UPr2
- Suggested price $59.95
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Switch chip model QCA9531
- Dimensions 113x89x28mm
- RouterOS license 4
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
Powering
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 8-30 V
- Max power consumption 51 W
- Max power consumption without attachments 3 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 8-30 V
PoE-out
- PoE-out ports Ether2-Ether5
- PoE out Passive PoE
- Low voltage PoE-Out current limit 1 A
- Max total out (A) 2 A
Ethernet
- 10/100 Ethernet ports 5
Peripherals
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
Other
- Current Monitor Yes
- PCB temperature monitor Yes
- Voltage Monitor Yes
Certification & Approvals
- Certification CE, EAC, ROHS
- IP 20
