Description
Specifications
| Specifications | |
|---|---|
| Model | CS-A3-R200-WBG |
| General | |
| Interface | Type-C |
| Power Supply | Uses Type-C USB Cord,DC 5V / 1A |
| Power Consumption | Max.3W |
| Maximum Incoming Devices Quantity | Up to 64 ZigBee devices (including at least 3 electronic devices) |
| Wired Network | 1*RJ45 (10M/100M Adaptive） |
| Speaker | 0.8W 8Ω |
| Button | Main Button,Reset Button (Pinhole) |
| Operation Conditions | 10 °C to 55 °C ( 14 °F to 131 °F ), humidity 95% or less (non-condensing) |

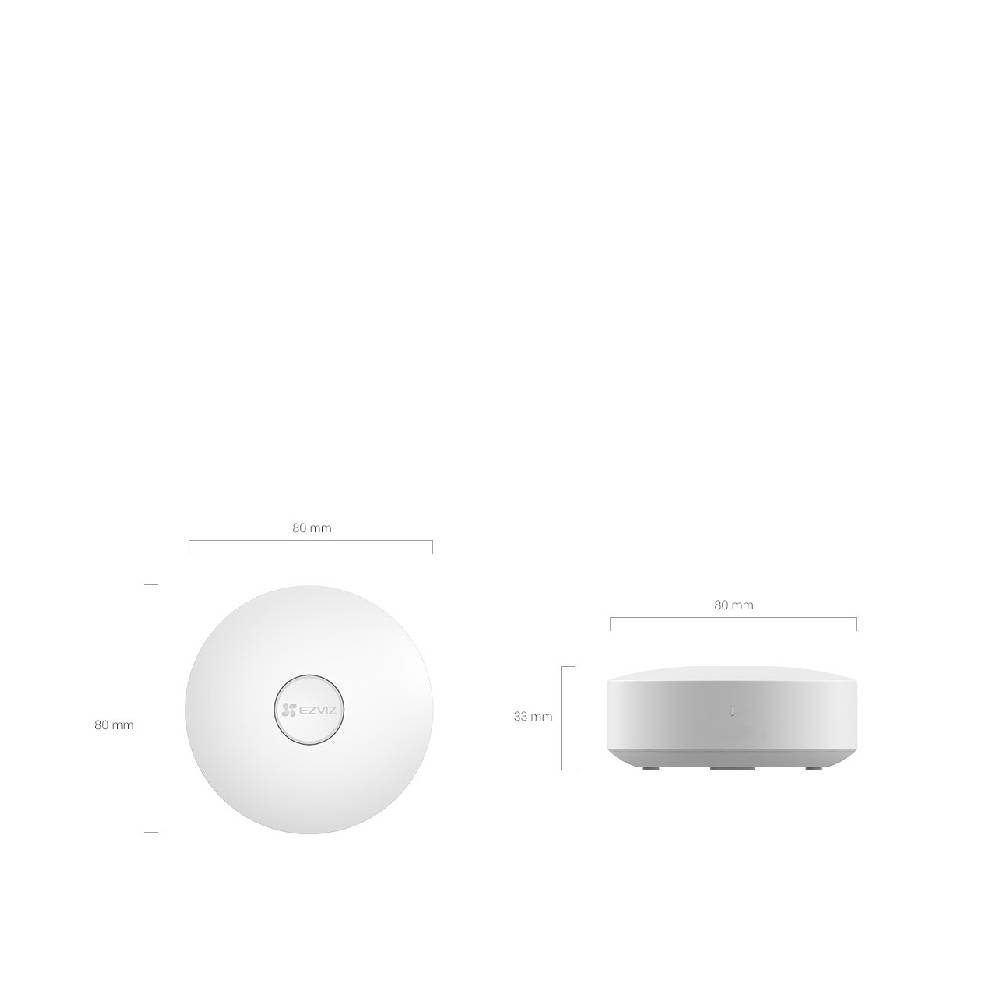

| Dimensions | φ 80.0 × 33.0 mm (φ 3.15 × 1.30 inch) |
| Package Size | 102.0 x 107.0 x 91.0 mm (4.0 × 4.2 x 3.6 inch) |
| Net Weight | 90 g (3.2 oz) |
| Network | |
| Ecosystem | HomeKit/Matter |
| Communication Methods | RJ45 interface network cable Wi-Fi 2.4 GHz ZigBee 3.0 Bluetooth 5.3 |
| Communication Distance | Wi-Fi (2.4 GHz) ＜ 200 m ZigBee 3.0 ＜ 200 m (Tested in open environment) |
| Antenna | Built-in |
| Wi-Fi Standard & Frequency Range | IEEE 802.11b/g/n/ax |
| Security | WPA-PSK/WPA2-PSK |
| Channel Bandwidth | 20 MHZ |
| Wi-Fi Pairing | AP Pairing |
| Protocol & Interface Protocol | EZVIZ Cloud Proprietary Protocol |
