| Specifications |
|---|
| Model | CS-H7c-R100-8G44WF |
|---|
| Camera |
|---|
| Resolution | Dual 2K+ Resolution |
|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|
| Shutter Speed | Self-adaptive shutter |
|---|
| Fixed Lens | 2.8mm@F1.6 , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical) |
|---|
| PT Lens | 6mm@F1.6 , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical) |
|---|
| Lens Mount | M12 |
|---|
| Day & Night | IR-cut filter with auto-switching |
|---|
| DNR | 3D DNR |
|---|
| WDR | Digital WDR |
|---|
| Compression |
|---|
| Video Compression | H.264/H.265 |
|---|
| Video Bit Rate | Adaptive bit rate. |
|---|
| Network |
|---|
| Smart Alarm | Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection |
|---|
| Wi-Fi Pairing | AP paring |
|---|
| Protocol | EZVIZ cloud proprietary protocol |
|---|
| Interface Protocol | EZVIZ cloud proprietary protocol |
|---|
| Image |
|---|
| Max. Resolution | 2560 × 1440 |
|---|
| Frame Rate | Max:30fps; Self-Adaptive during network transmission |
|---|
| Interface |
|---|
| Storage | Micro SD card slot (Max. 512G) |
|---|
| Power | TYPE-C |
|---|
| Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
|---|
| Wi-Fi |
|---|
| Standard | IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax |
|---|
| Frequency Range | 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz |
|---|
| Channel Bandwidth | 2.4GHz Supports 20MHz 5GHz Supports 80MHz |
|---|
| Security | WPA-PSK, WPA2-PSK, WPA3-Personal |
|---|
| Transmission Rate | 2.4GHz Max. Rate Support: 11b_11M，11g_54M, 11n_MCS7_20M，11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M，11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M |
|---|
| Output Power(EIRP) | 20 dBm |
|---|
| Antenna Gain | 2.56dBi@2.48GHz，3.18dBi@5.22GHz |
|---|
| General |
|---|
| Operating Conditions | -10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing) |
|---|
| Power Consumption | 8W max |
|---|
| Power Supply | DC 5V/2A |
|---|
| IR Range | MAX. 10 meters (32.81ft) |
|---|

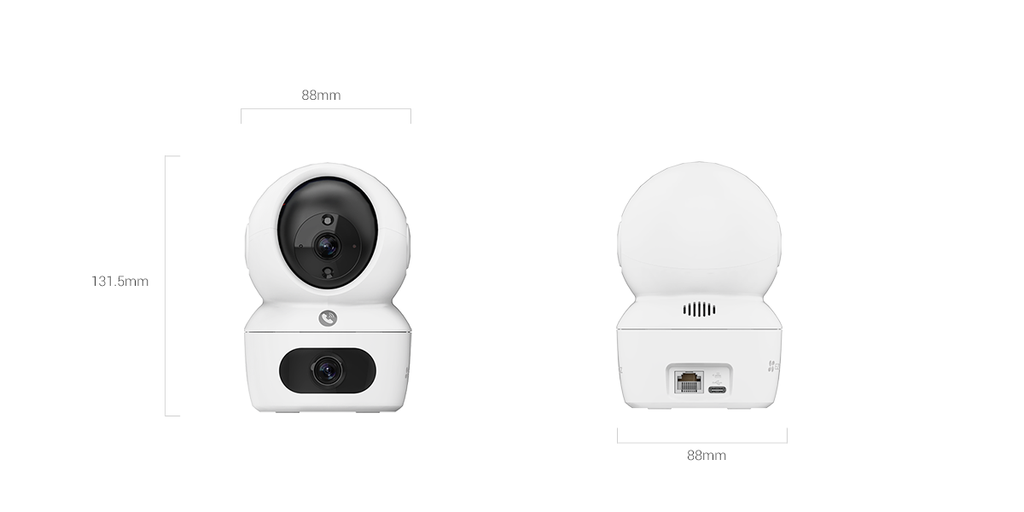

| Dimensions | 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in) |
|---|
| Package Dimensions | 200 ×105 ×105 mm (7.87 × 4.13 × 4.13 in) |
|---|
| Net Weight | 270 g (9.52 oz) |
|---|
| Bare Weight | 499 g (17.60 oz) |
|---|
