Basic Info.
- Model NO.: ADB3-63LE
- Speed: High-Speed Circuit Breaker
- Arc-extinguishing Medium: Air
- Installation: Fixed
- Structure: Circuit Breaker
- Poles Number: 1
- Certification: ISO9001-2000, CE, CB, CCC
- Rated Insulating Voltage: 800V
- Rated Operating Voltage: 400V
- Transport Package: Carton
- Specification: ISO9001: 2000, CE, CB, CCC
- Trademark: ANDELI
- Origin: China
- Production Capacity: 500 Pieces/Day
Product Description
Application

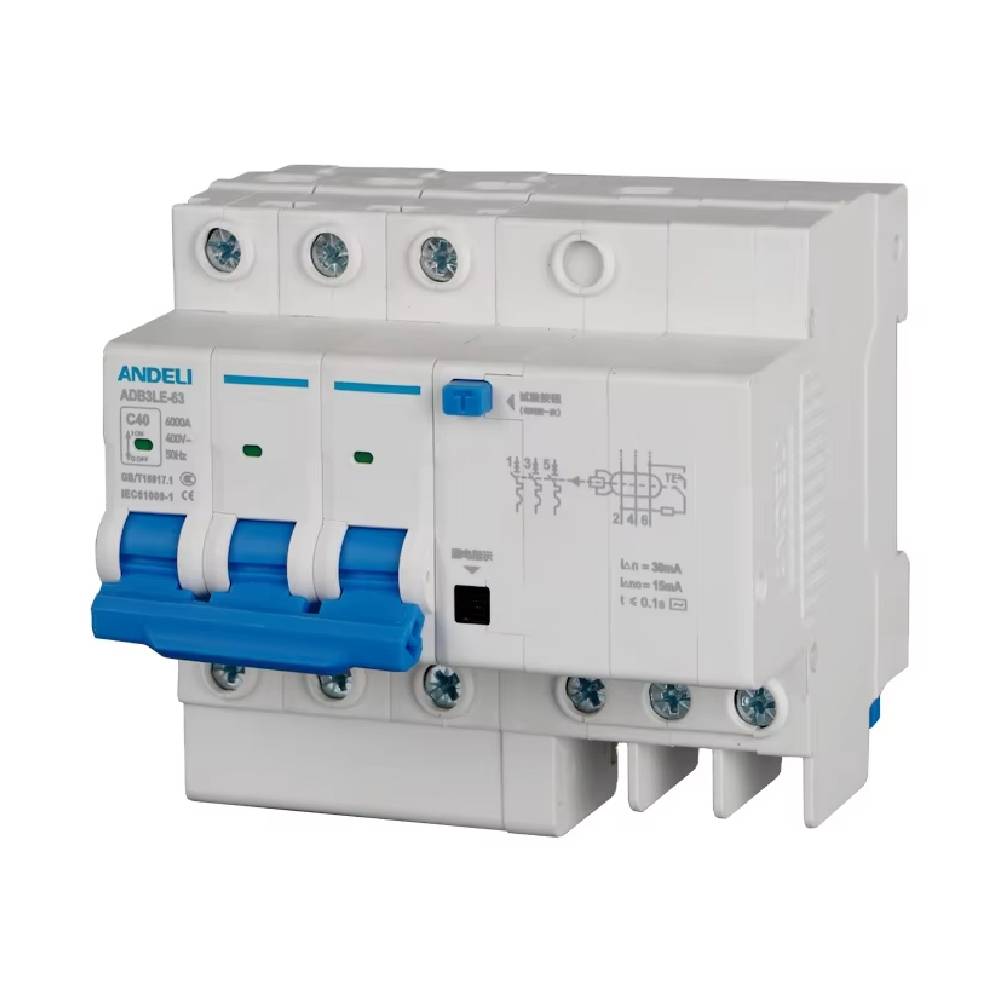

ADB3LE-63 series earth leakage circuit breakers (hereinafter referred to as earh leakage circuitbreakers) are suitable for use in circuits with rated voltage 230 or 400V, frequency 50/60Hz, ratedcurrent up to 63A and below, as protection against personal electric shock, as well as protectionagainst leakage, overload and short-circuit of electrical circuits and equipment in houses and similarbuildings, and for infrequent operation and conversion of circuits.
The product complies with GB/T16917.1, GB/T169 17.22 and lEC61009-1 standards.
Normal Working and Installation Conditions
2.1 Normal operating conditions
2.1.1 Ambient air temperature -5 'C to 40 'C, not exceeding 35 °C on average within 24 h.
2.1.2 The altitude of the installation site does not exceed 2000 m.
2.1.3 The relative humidity of the air at the installation site shall not exceed 50% at a maximumtemperature of 40 'C and 90 % at a monthly average minimum temperature of 25'C in thewettest month.
2.1.4 Pollution level 2 at the installation site.
2.2 Installation category
Installation category lll.
2.3 Installation conditions
The installation shall be free from significant shocks and vibrations.
2.4 Installation position
The installation position should be vertical, with an inclination of no more than +5° in alldirections.
Structure and Working Principle
The earth leakage circuit breaker consists of an ADB3 mini circuit breaker and an earth leakage releaseassembled together.
When there is leakage or personal electric shock in the protected circuit, the vector sum of the current throughthe zero sequence current transformer is not equal to zero, the secondary coil of the transformer generates avoltage signal and is amplifed by the integrated circuit. When the rectification value is reached, the leakagerelease actuates, so that the circuit breaker cuts off the power within 0.1 seconds, thus playing the role ofelectric shock and leakage protection.
When an overload and short circuit occurs in the line or equipment, the overload release or instantaneousrelease in the circuit breaker acts to cut off the power supply and protect the line and equipment from damage.
