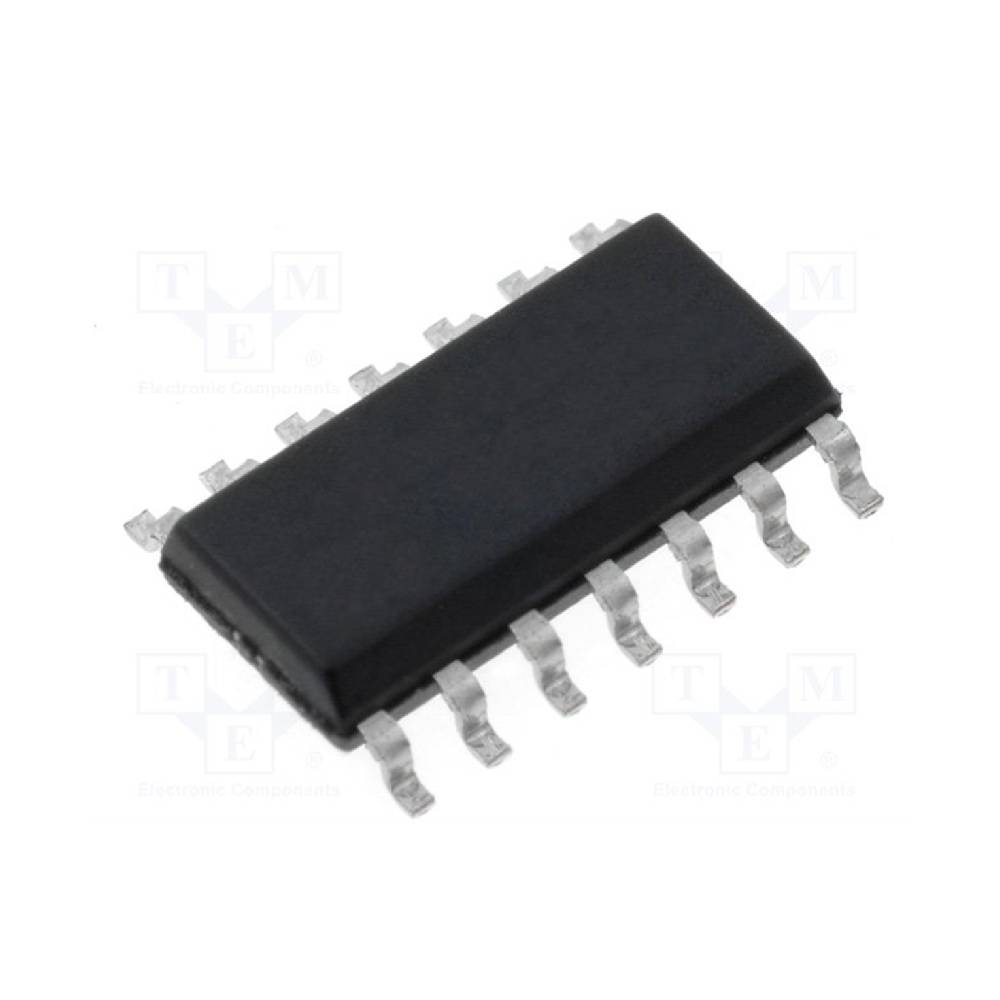

![MC33079 Low Noise Quad Operational Amplifier [ SMD ]](/web/image/product.product/61891/image_1024/%5B85311%5D%20MC33079%20Low%20Noise%20Quad%20Operational%20Amplifier%20%5B%20SMD%20%5D?unique=7cf9b96)
Specifications
| Amplifier Type | Quad Operational Amplifier |
| Voltage Noise Density | 4.5 nV/√Hz |
| Gain Bandwidth Product | 15 MHz to 16 MHz |
| Slew Rate | 7 V/µs |
| Supply Voltage Range | ±2.5V to ±15V (Dual Supply) or up to +36V (Single Supply) |
| Total Harmonic Distortion (THD) | 0.002% |
| Package Type | SO-14 / SOP-14 (Surface Mount) |
| Operating Temperature | -40°C to +105°C |
| Input Offset Voltage | Typically 2.5 mV (at 25°C) |
